Benchmark Boiler Venting and Combustion Air Guidelines

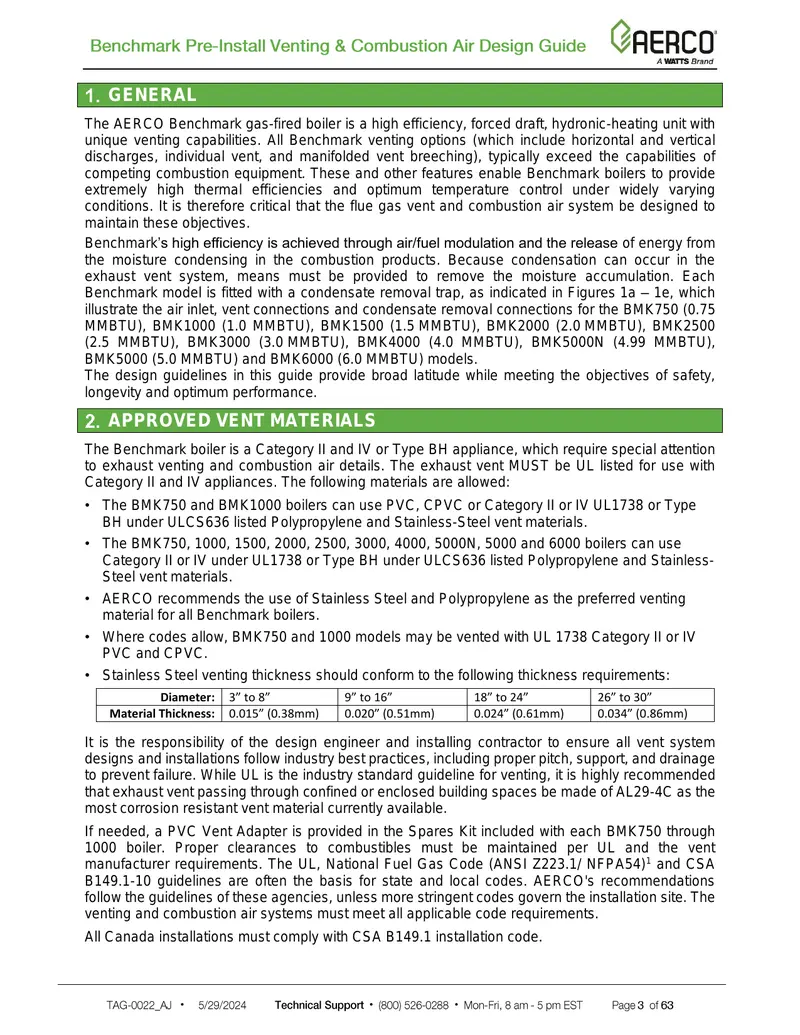

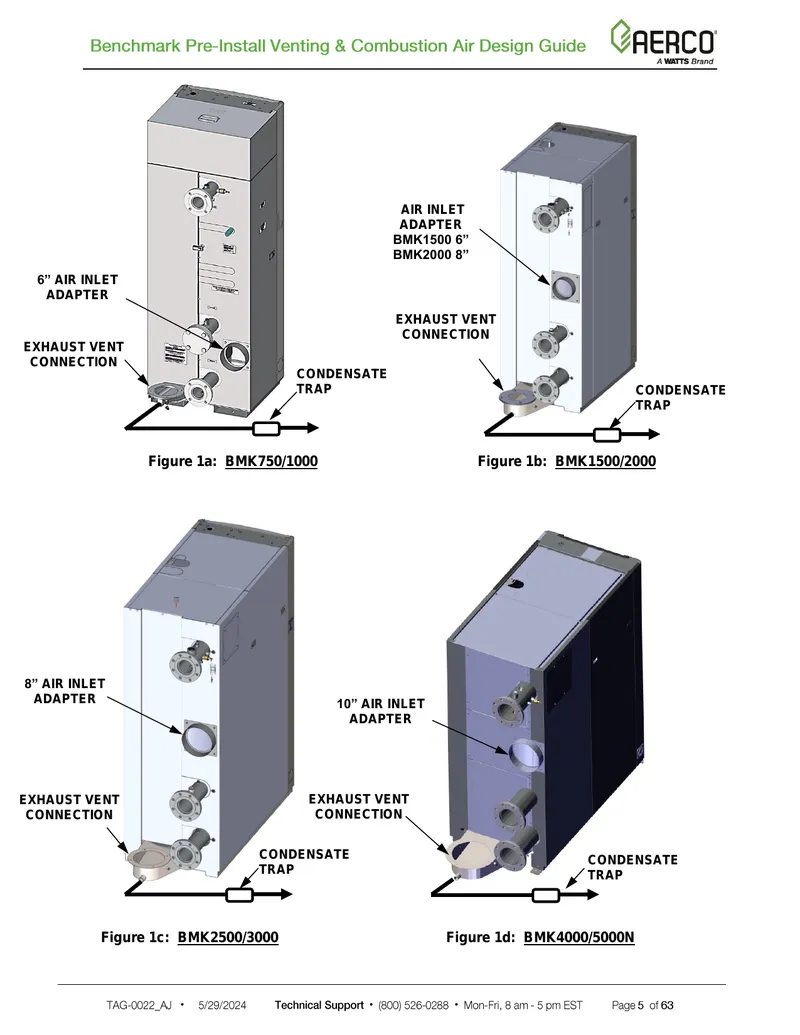

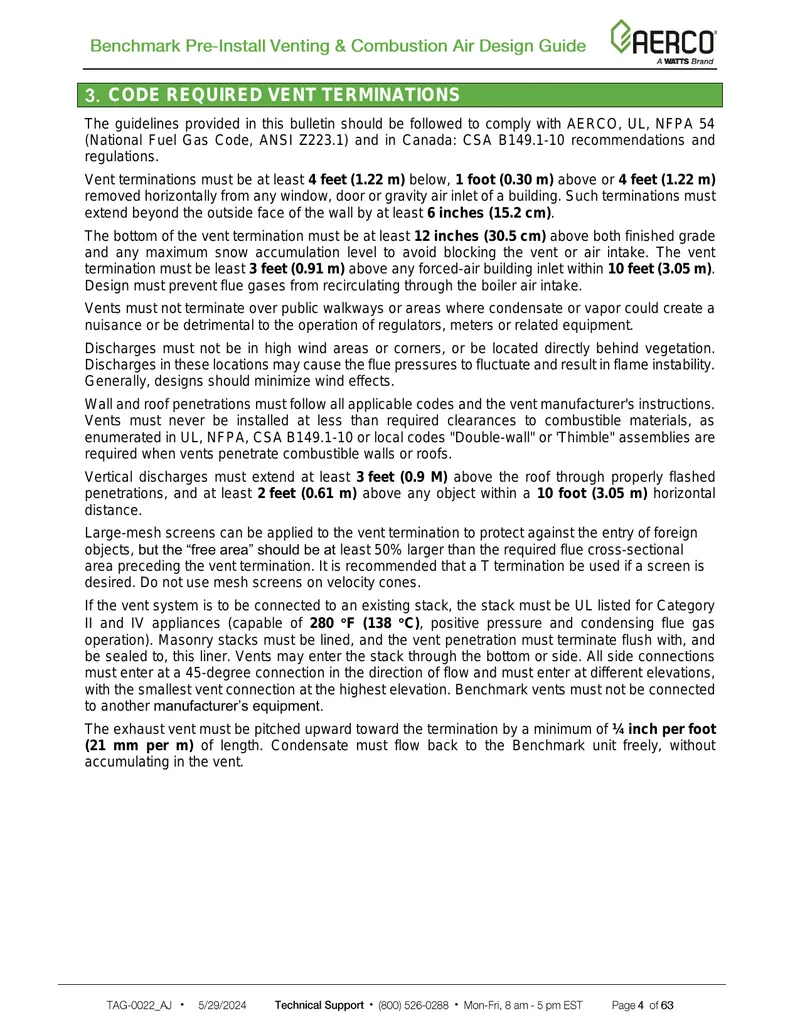

This guide provides detailed specifications and recommendations for the venting and combustion air systems associated with the AERCO Benchmark gas-fired boiler. It outlines the approved vent materials and emphasizes the importance of adhering to safety standards and codes, including UL and National Fuel Gas Code (ANSI Z223.1/NFPA54). The document specifies the design requirements for vent terminations, including necessary clearances from windows, doors, and other structures to ensure safe operation. It also discusses the importance of condensate removal and the materials suitable for venting, highlighting the need for compliance with industry best practices. The guide includes installation requirements for both individually vented and manifolded systems, ensuring that all installations meet the necessary performance and safety objectives. Additionally, it addresses the considerations for pressure drop and draft data, which are critical for maintaining efficient boiler operation. Overall, the document serves as a comprehensive resource for engineers and contractors involved in the installation and maintenance of Benchmark boiler systems.
