Reflow Profiling in Soldering and PCB Assembly

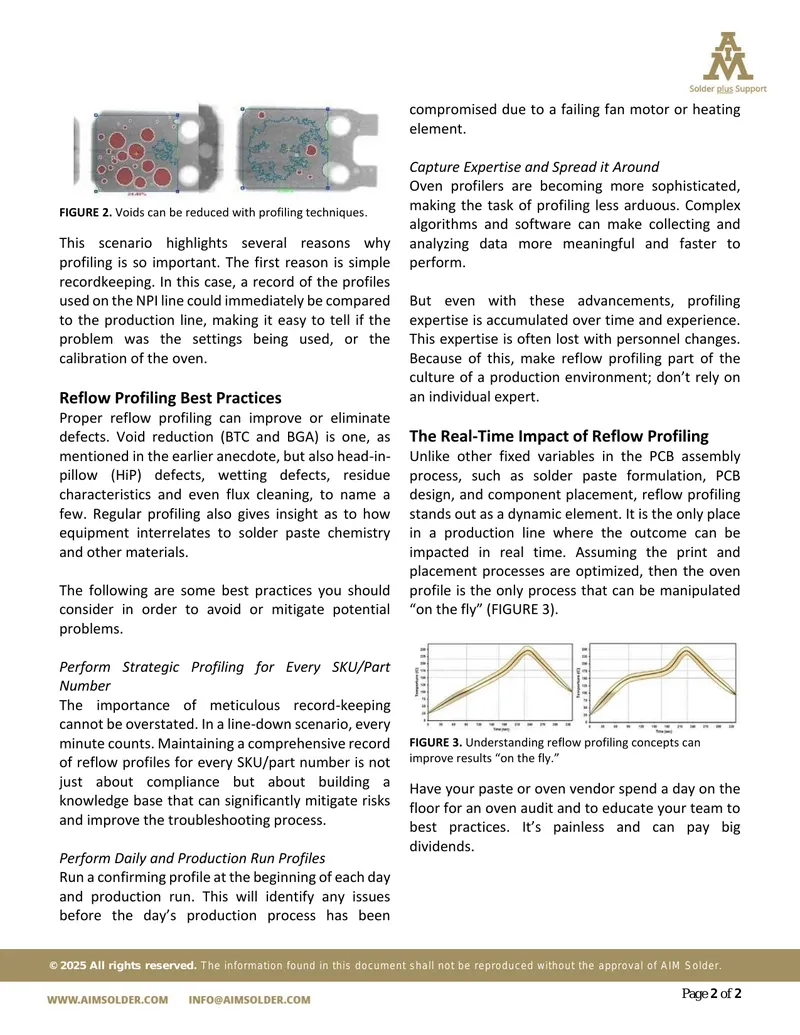

This technical report discusses the importance of reflow profiling in soldering and PCB assembly processes. It outlines the procedure for calibrating oven temperatures using a 'golden board' equipped with thermocouples to ensure optimal thermal conditions for solder paste. The report highlights the discrepancies that can occur between ideal profiling scenarios and real-world production environments, emphasizing the need for accurate profiling practices to avoid defects such as voids in solder joints. It details the significance of maintaining comprehensive records of reflow profiles for each SKU or part number, which aids in troubleshooting and compliance. The report also presents best practices for profiling, including conducting daily profiles and capturing expertise within the production team to enhance the profiling process. Additionally, it notes the dynamic nature of reflow profiling as a variable that can be adjusted in real time, impacting production outcomes significantly. The document serves as a guide for improving solder joint quality through effective reflow profiling techniques.
