Solder Paste Powder Downsizing Considerations

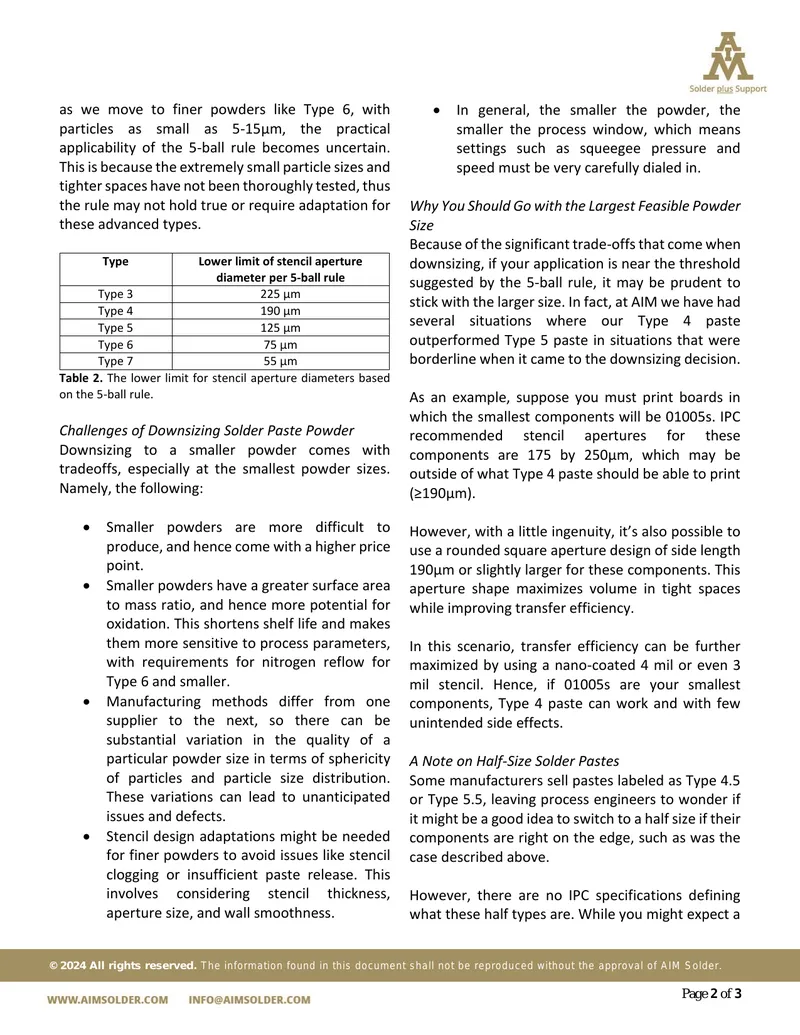

This article is a technical report that discusses the considerations for downsizing solder paste powder in manufacturing processes. It outlines the increasing demand for finer solder pastes as components shrink in size, emphasizing the importance of optimizing printing and reflow processes to prevent defects. The report details the variations in solder powder production methods and their impact on paste performance, including printability and reliability. It introduces the '5-ball rule' as a guideline for determining appropriate powder sizes based on stencil aperture dimensions. The report also addresses the challenges associated with downsizing, such as increased production difficulty, oxidation risks, and the need for stencil design adaptations. Additionally, it advises on the potential benefits of using larger powder sizes when close to the downsizing threshold and cautions against the use of half-size pastes due to undefined specifications. Overall, the report provides recommendations for selecting the appropriate solder paste type to achieve optimal assembly outcomes.
