Applications and Advantages of Rigid Flex PCBs

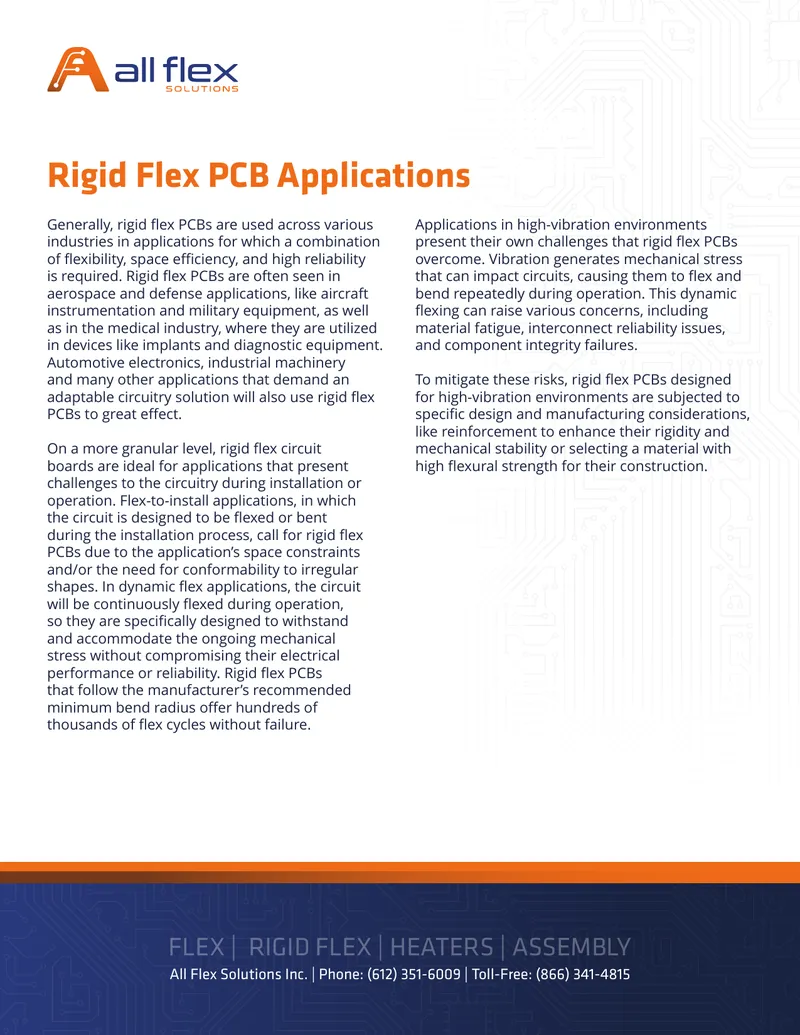

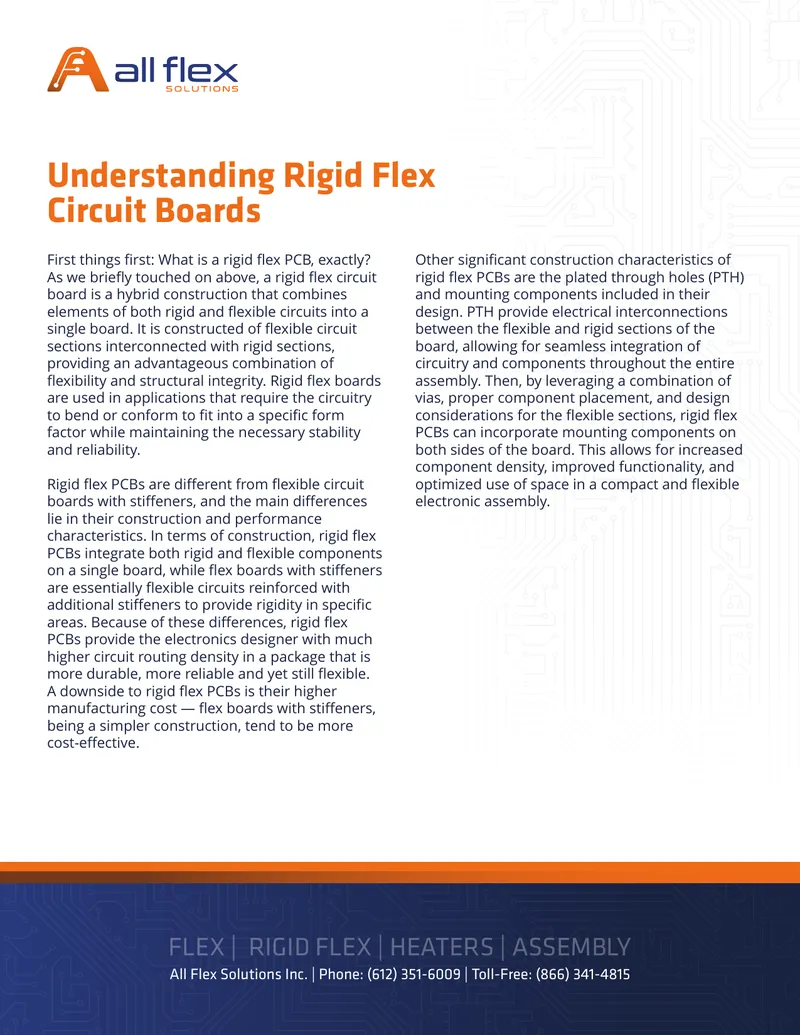

This document is a guide that outlines the applications and advantages of rigid flex printed circuit boards (PCBs). Rigid flex PCBs are hybrid circuits combining rigid and flexible elements, providing flexibility and structural integrity for high-reliability applications. The guide details how these boards are utilized in various industries, including aerospace, medical, and automotive, where adaptability and durability are crucial. It explains the construction characteristics of rigid flex PCBs, such as plated through holes and mounting components, which enhance their performance. The document also discusses the advantages of rigid flex PCBs, including space efficiency, reliability, higher component density, design versatility, and simplified assembly. Furthermore, it addresses when to choose rigid flex PCBs over traditional options, emphasizing their suitability for applications requiring high durability and flexibility, while also considering cost constraints and production volume. The guide concludes by encouraging careful evaluation of rigid flex PCBs for specific applications, balancing their benefits against potential costs.
