Finite Element Analysis for Flexible Heater Design

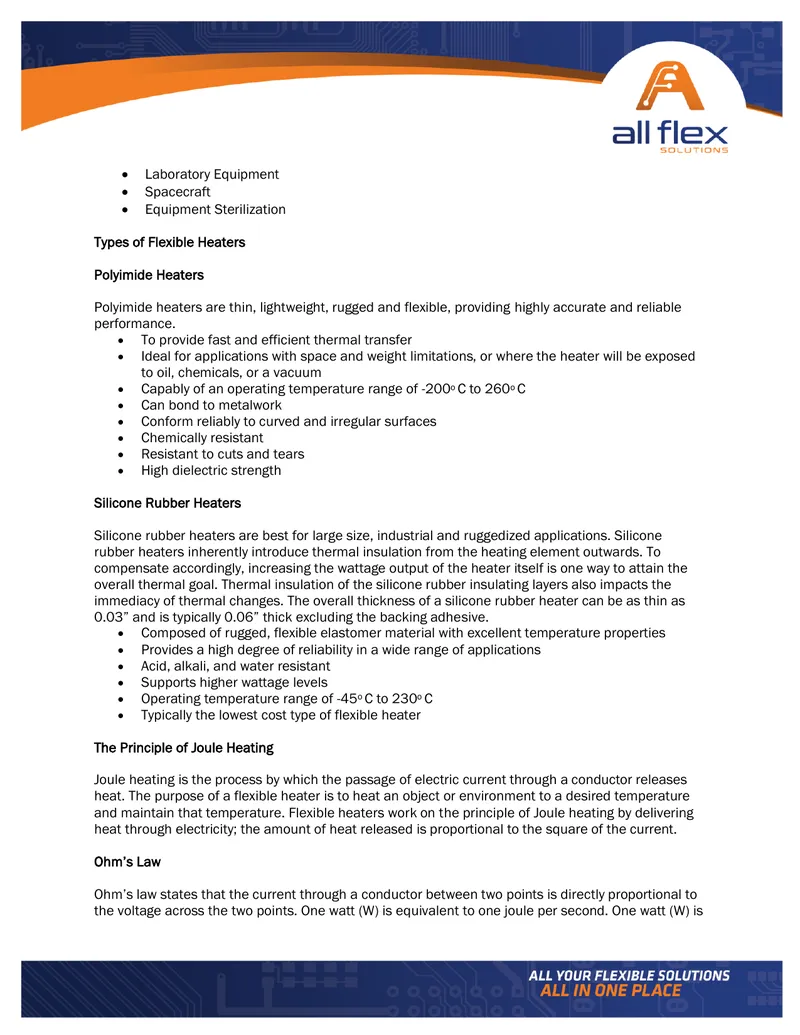

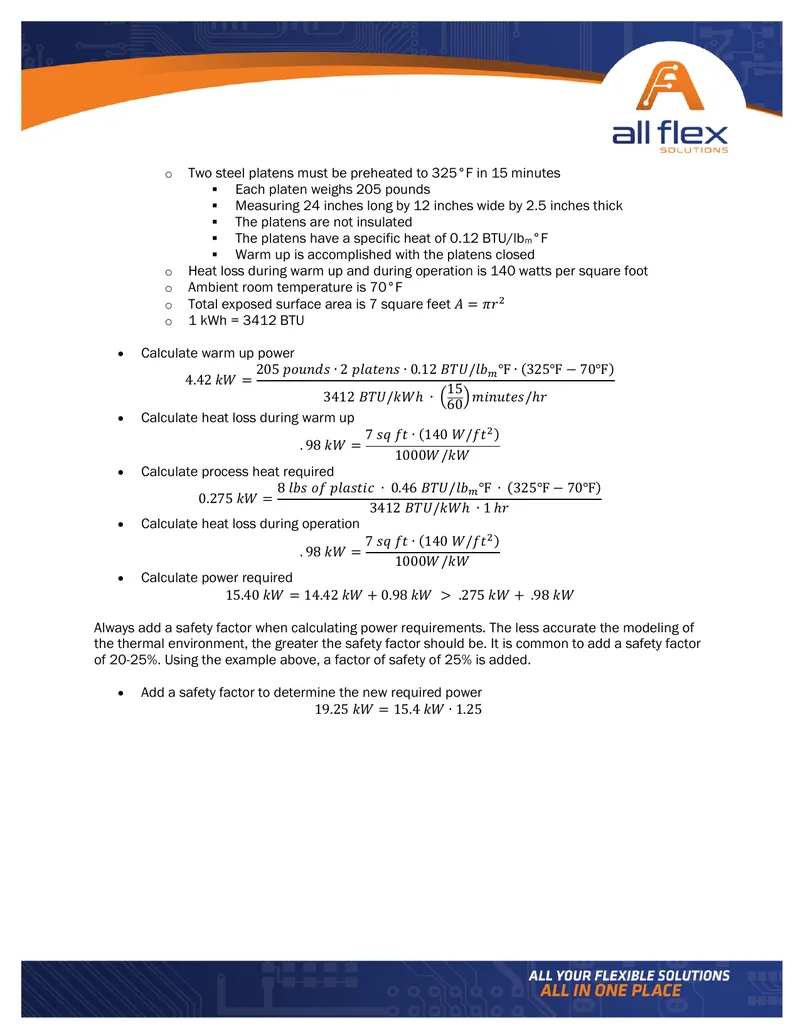

This technical paper discusses the application of Finite Element Analysis (FEA) in the design process of flexible heaters, which are essential in various heating applications. The document outlines how FEA can significantly reduce the time spent in prototype development by simulating real-world conditions to evaluate heater performance before physical prototypes are created. It details the design requirements for flexible heaters, including power specifications, temperature control, and material configuration. The paper also covers the principle of Joule heating, Ohm's law, and various types of flexible heaters, such as polyimide and silicone rubber heaters. Furthermore, it presents the importance of watt density and thermal uniformity in heater applications, explaining how thermal losses can affect performance. The findings from analytical tests comparing FEA estimations to experimental values indicate that FEA can provide accurate predictions, typically within +/- 5 degrees Fahrenheit of actual measurements, thus validating its use in the design process.
