Advanced Joint Architectures for Next-Generation Robotics

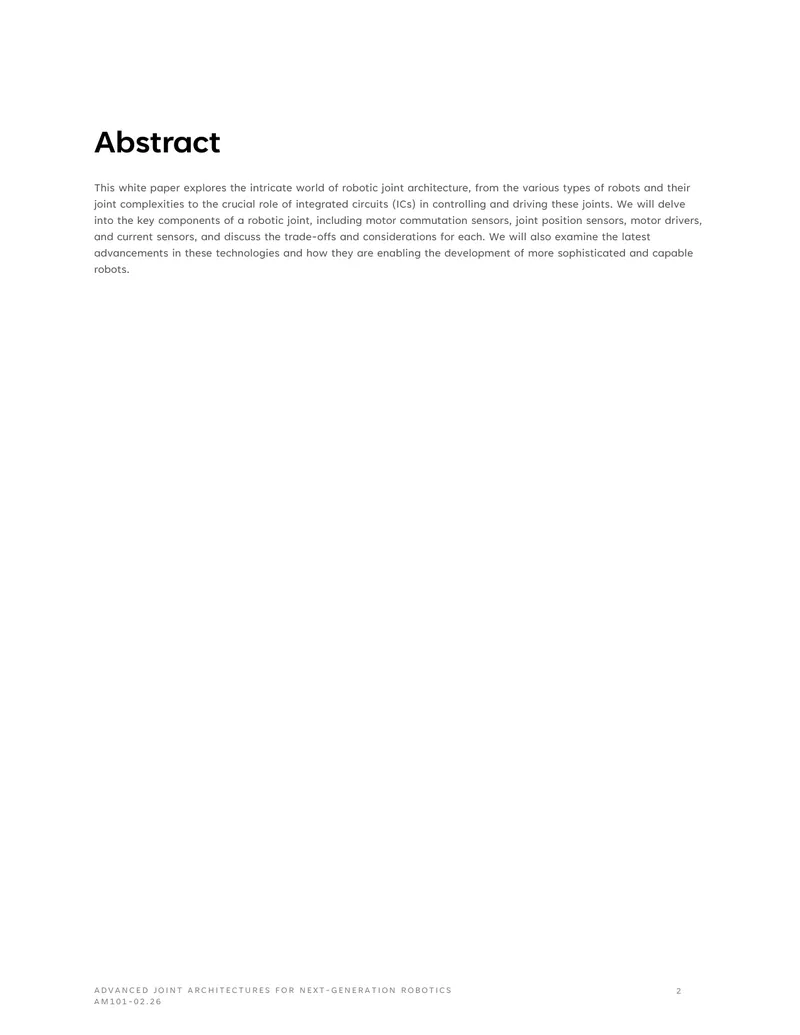

This white paper documents the complexities of robotic joint architecture, focusing on the types of robots and the integral role of integrated circuits in the functioning of these joints. It details the essential components of robotic joints, which include motor commutation sensors, joint position sensors, motor drivers, and current sensors. Each component's trade-offs and considerations are discussed, along with the latest advancements in these technologies. The paper outlines the various types of robotic architectures, such as collaborative robots and humanoid robots, and emphasizes the significance of joint design on a robot's performance. The influence of integrated circuits on joint movement is highlighted, with a block diagram illustrating the key components. Furthermore, the paper examines specific sensor requirements, including size, output, resolution, accuracy, and immunity to stray fields, contributing to the development of sophisticated and capable robotic systems.
