Noise Characteristics and Measurement Methodology for Current Sensors

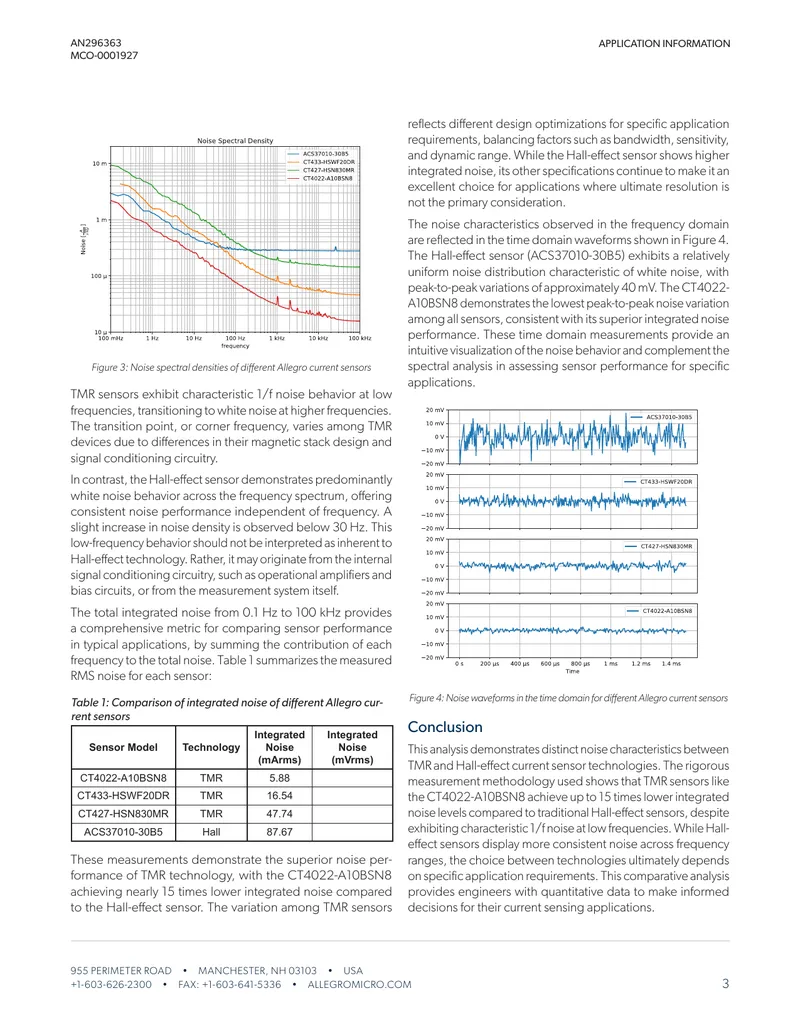

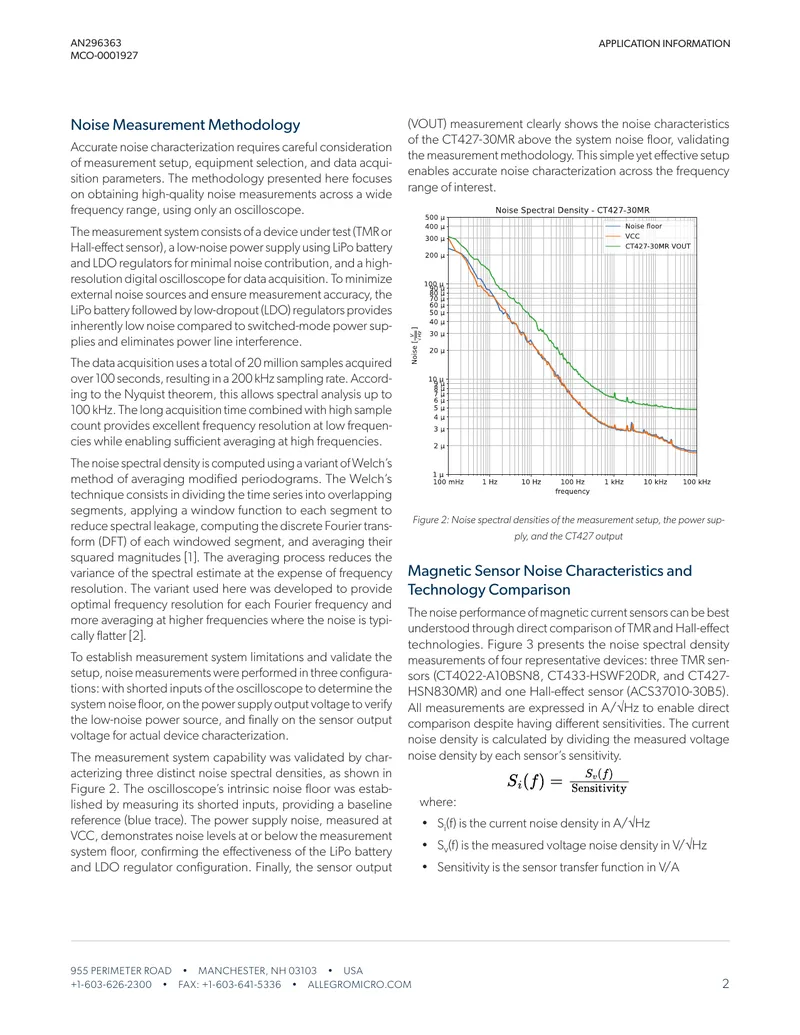

This technical report provides a detailed examination of the noise characteristics and measurement methodologies for tunnel magneto-resistance (TMR) and Hall-effect current sensors. It begins by outlining the importance of accurate current sensing in various applications, including electric vehicles and industrial automation, and highlights the distinct noise behaviors of TMR and Hall-effect sensors. The report explains the fundamental sources of noise, including white noise and 1/f noise, and discusses measurement techniques that ensure high-quality noise characterization. The methodology involves using a low-noise power supply and a high-resolution oscilloscope to capture noise data across a wide frequency range. The report also includes a comparative analysis of the noise performance of different sensors, presenting data on integrated noise levels and spectral densities. The findings indicate that TMR sensors can achieve significantly lower integrated noise levels compared to Hall-effect sensors, providing engineers with the necessary information to make informed decisions regarding current sensing technologies.
