Sonic Choking in Pipe Systems for Compressible Flow

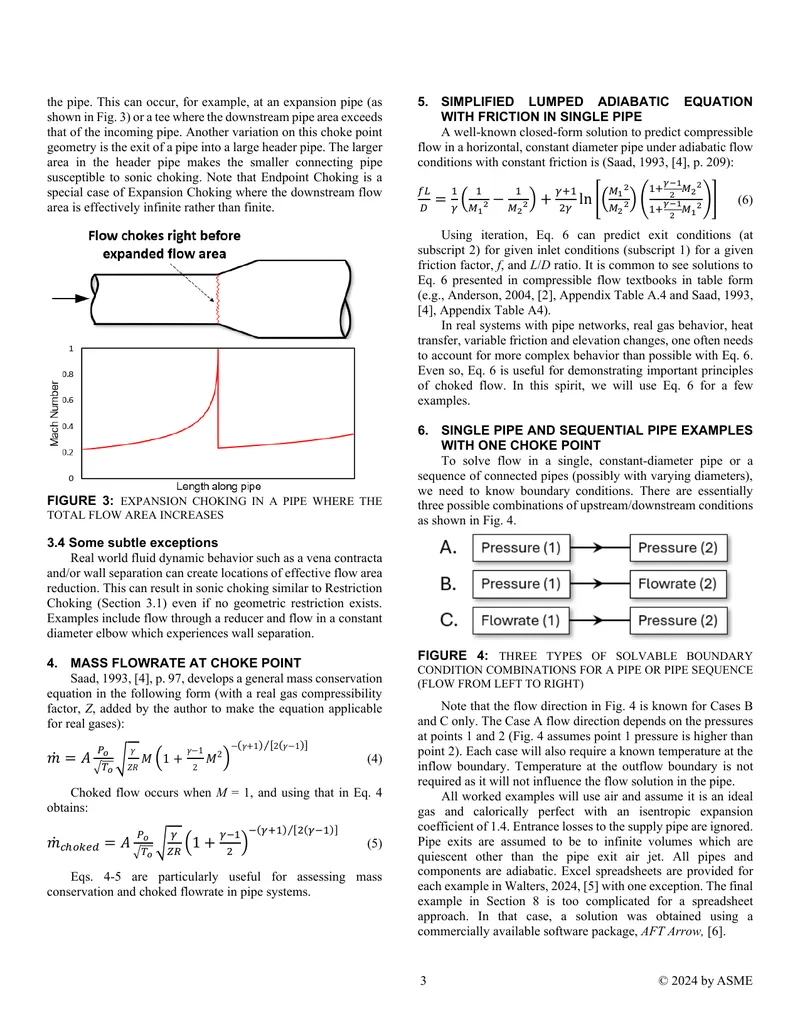

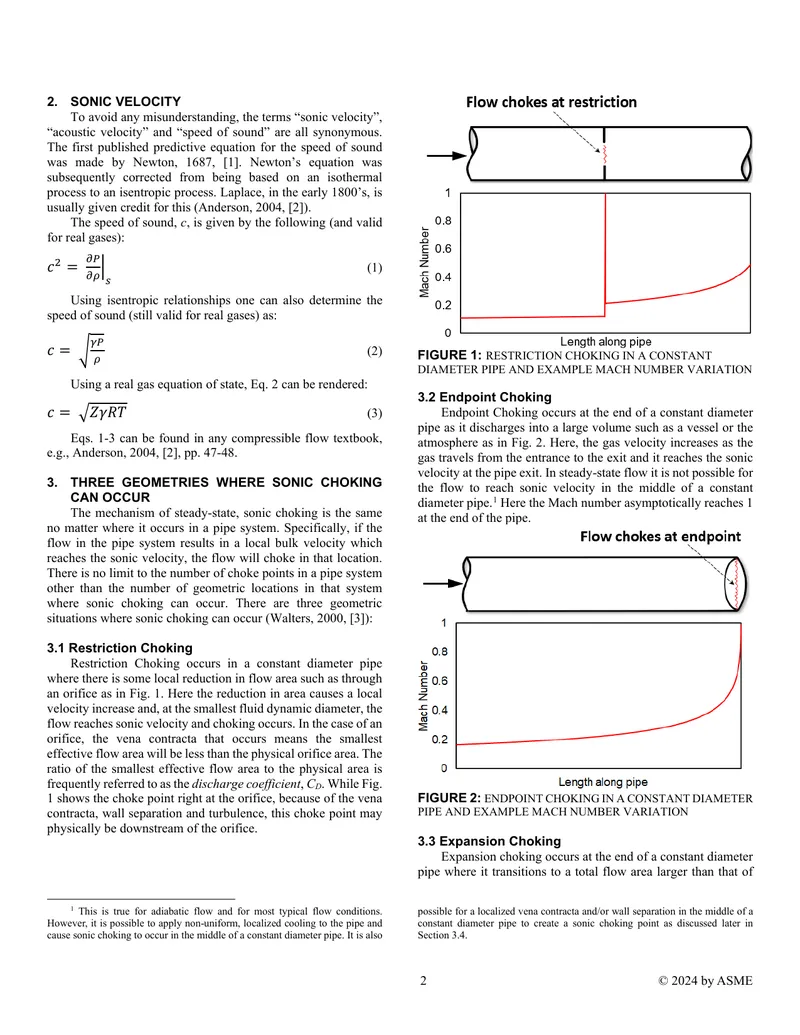

This technical paper discusses sonic choking in pipe systems, focusing on steady, compressible flow. The objective is to provide a comprehensive reference for engineers regarding all possible sonic choking behaviors in generalized pipe network systems with superheated, steady-state, single-phase gas flow. The paper outlines the phenomenon of sonic choking, which occurs when the local bulk velocity of gas reaches sonic velocity, thereby limiting flow capacity. It details various situations where sonic choking can occur, including restriction choking, endpoint choking, and expansion choking. The document also addresses the implications of multiple choke points in series and parallel configurations, as well as the importance of understanding flow and thermodynamic conditions downstream of choke points. Additionally, it presents equations for mass flowrate at choke points and discusses the use of computational software for evaluating complex pipe network behaviors. The paper serves as a vital resource for practicing engineers in the field of gas dynamics.
