Path Generative Model for Four-Bar Mechanism Design

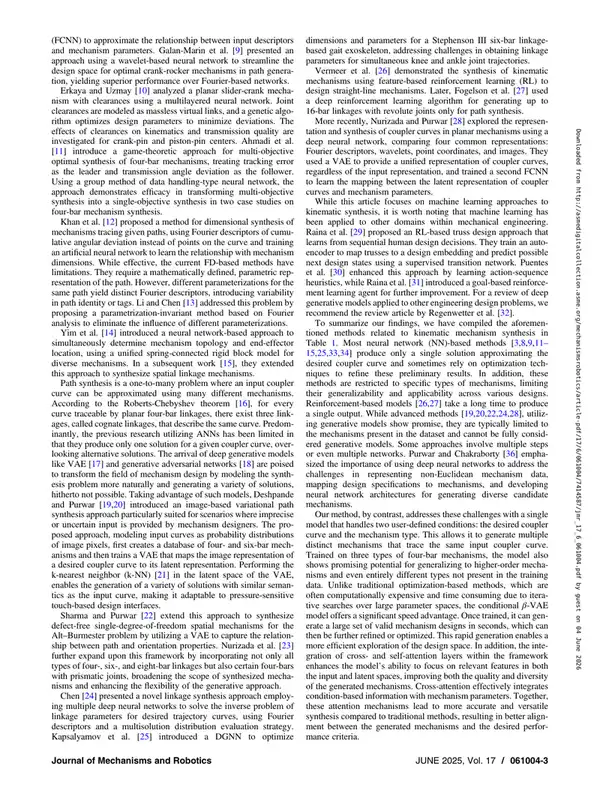

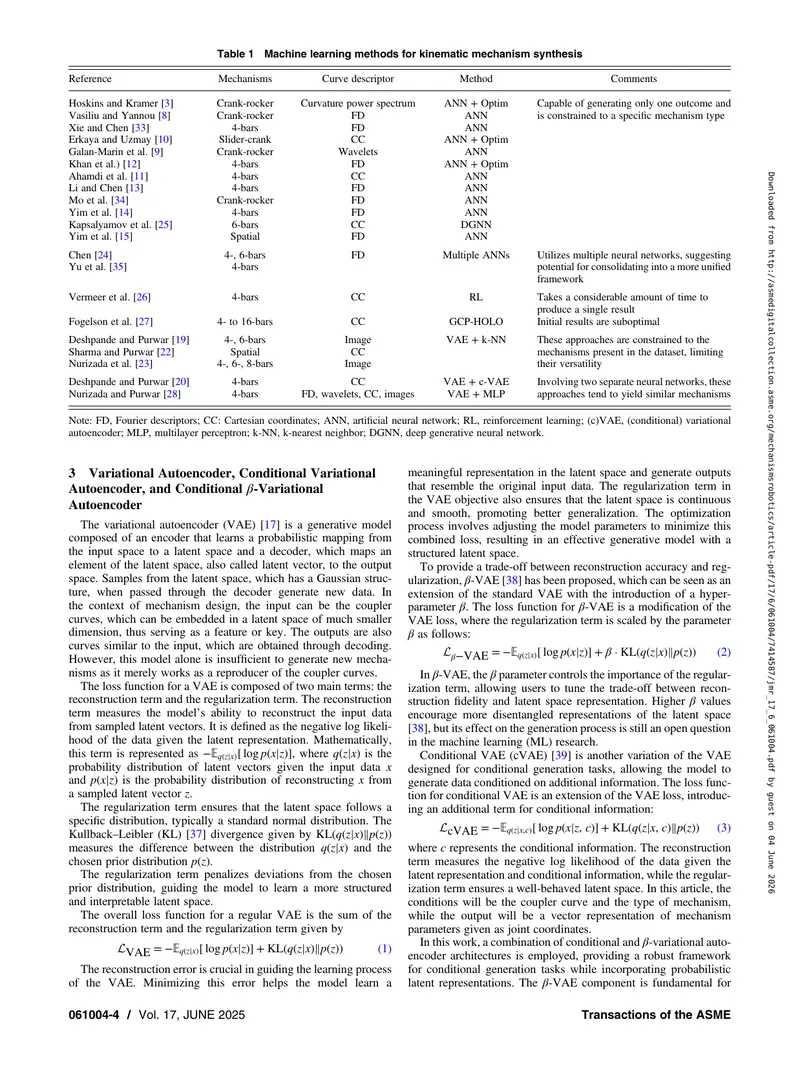

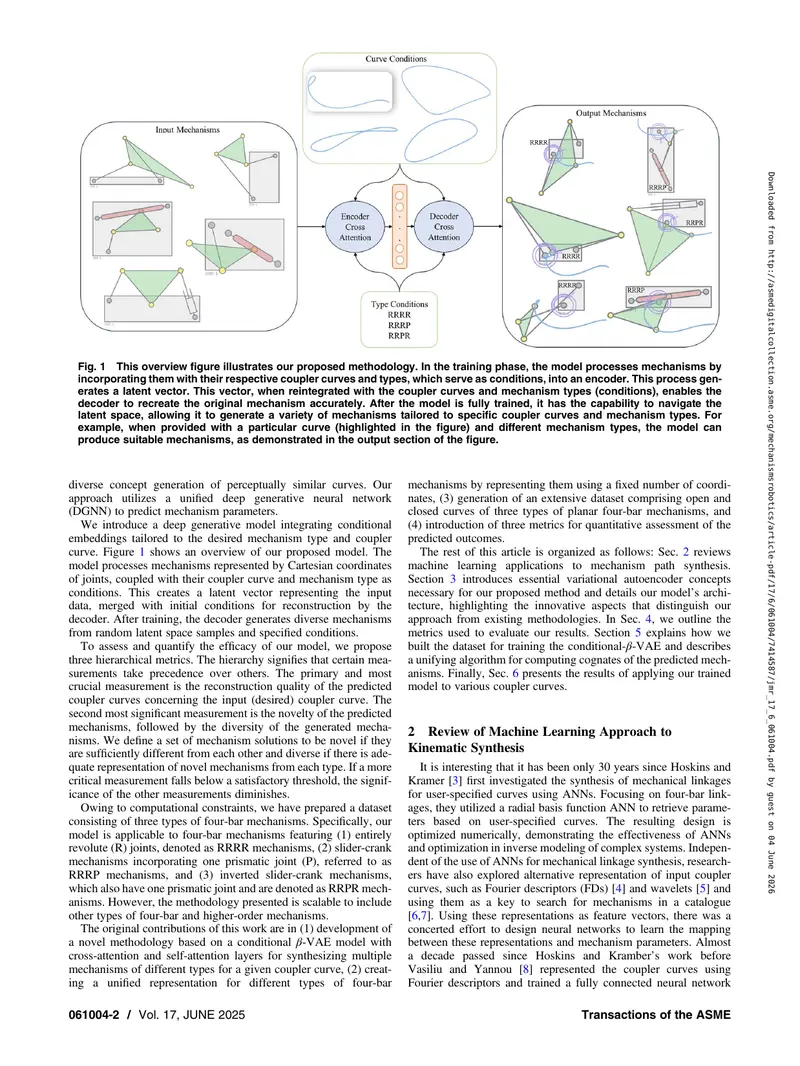

This article is a research article that presents a novel methodology based on a conditional β-variational autoencoder (cβ-VAE) architecture aimed at generating diverse types of planar four-bar mechanisms for a specified coupler curve. The methodology integrates cross- and self-attention layers within the VAE framework, which enhances the encoding and decoding processes by capturing the complex interdependencies of mechanism parameters and associated coupler curves. The authors propose a unified representation scheme for four-bar mechanisms, which include both revolute and prismatic joints, using a consistent set of joints. To validate the proposed methodology, an extensive dataset of open and closed coupler curves is compiled. The article also introduces three metrics for quantifying the model's efficacy and describes an innovative algorithm for enhancing predictive outcomes by identifying and computing cognate mechanisms. The work aims to address the limitations of traditional optimization methods in linkage synthesis by facilitating the generation of multiple mechanisms that approximate input coupler curves.
