DC Bus Overvoltage Fault Analysis in VFDs

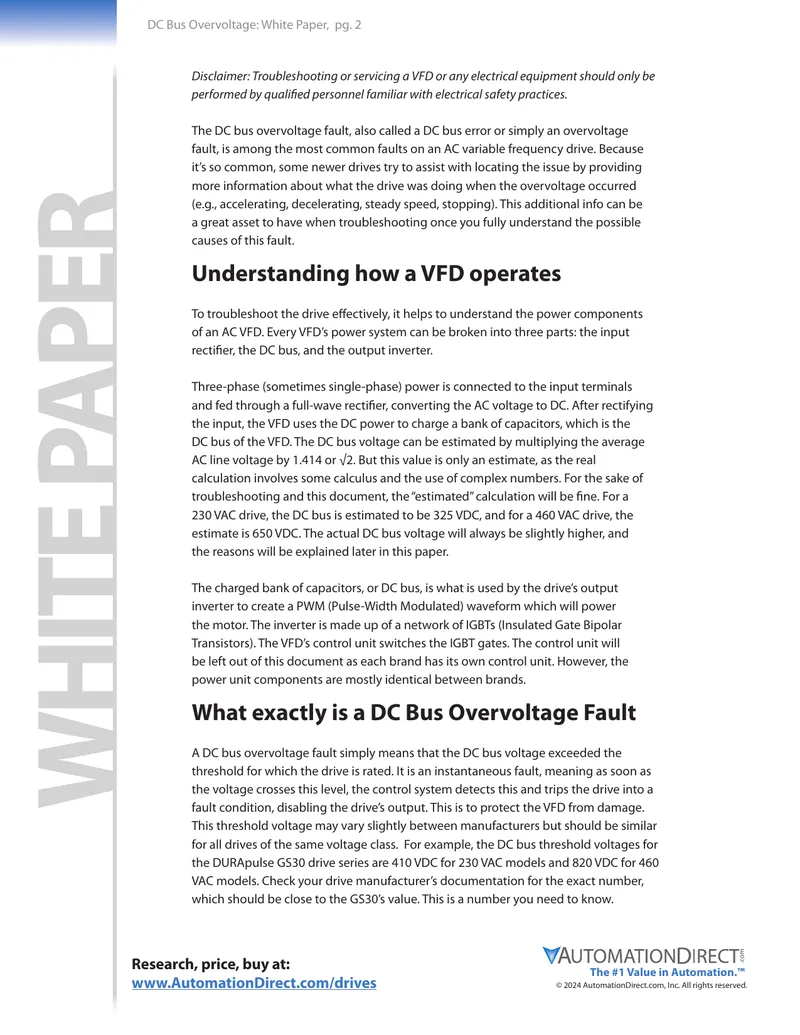

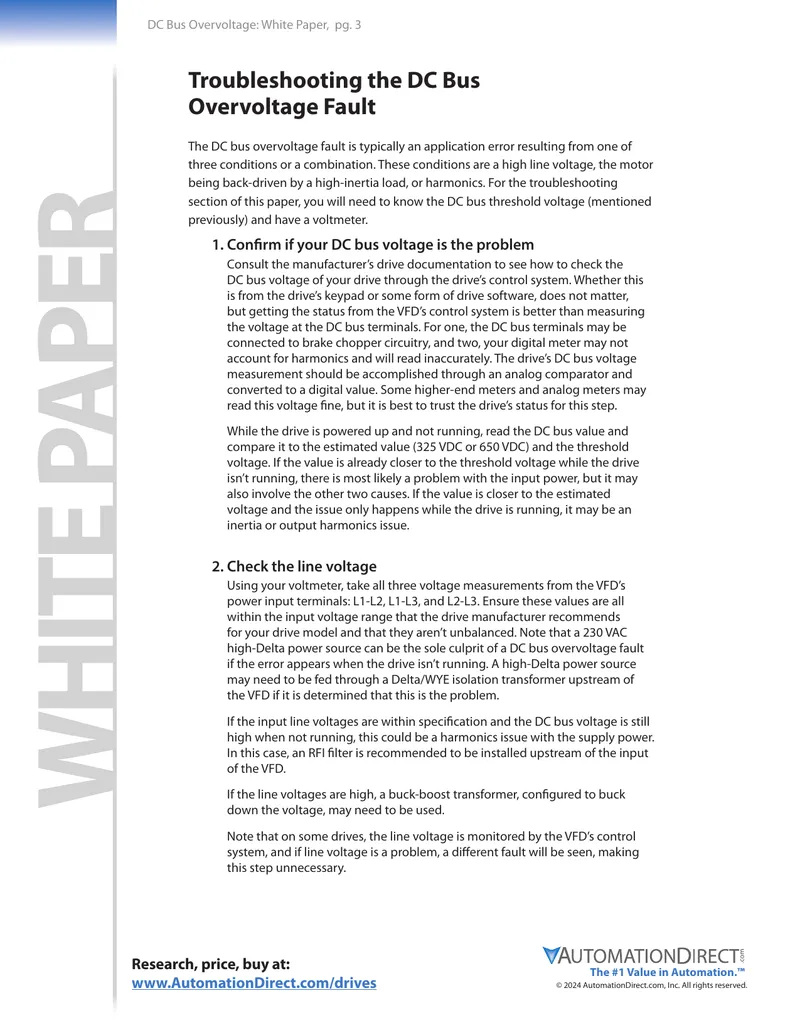

This white paper provides an in-depth analysis of the DC bus overvoltage fault commonly encountered in Variable Frequency Drives (VFDs). It outlines the significance of understanding the causes of this fault, which can arise from various conditions including high line voltage, mechanical application issues, and electrical harmonics. The document details the structure of a VFD's power system, including its input rectifier, DC bus, and output inverter, and explains how the DC bus voltage is calculated. It also discusses troubleshooting methods, emphasizing the importance of confirming the DC bus voltage and checking line voltage to identify potential issues. Additionally, the paper highlights the role of mechanical application issues, particularly how high inertia loads can lead to regeneration and subsequent voltage spikes. Recommendations for mitigating these faults, such as adjusting acceleration and deceleration times, installing brake resistors, and managing harmonics, are also provided. This comprehensive approach aims to ensure proper VFD operation and prevent damage from overvoltage conditions.
