Recommended Components and Circuit Layout for Servo Motor Drives

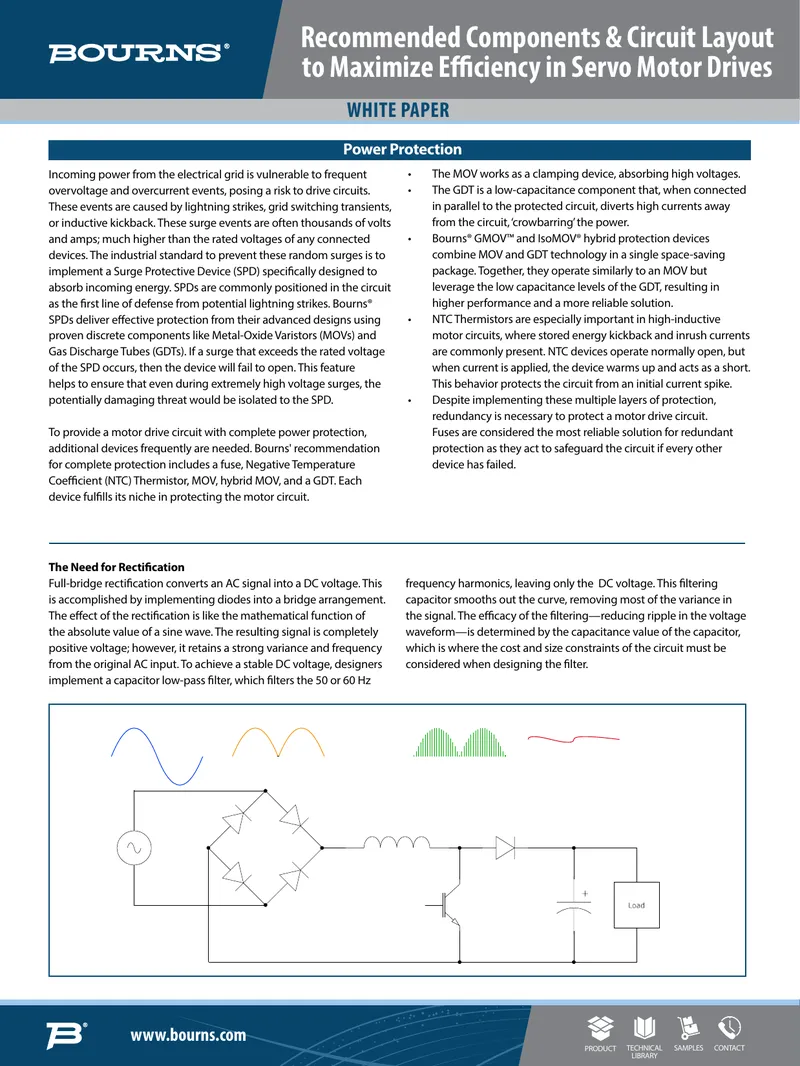

This white paper details the essential components and circuit layout considerations necessary for optimizing efficiency in servo motor drives. It outlines the role of servo motors in converting electrical energy into mechanical motion, highlighting their applications in various sectors, including industrial automation. The paper explains the power conversion process, emphasizing the need for specialized circuitry to manage high-frequency AC voltage. It discusses the importance of implementing Power Factor Correction (PFC) circuits to enhance power quality and reduce harmonic distortion. Additionally, the document presents various protective components, such as Surge Protective Devices (SPDs) and fuses, which are critical for safeguarding motor drive circuits against overvoltage and overcurrent events. The paper also covers the significance of current sensing in maintaining operational efficiency, recommending specific Bourns components for high-precision current measurement. Overall, the white paper serves as a comprehensive guide for designers aiming to create robust and energy-efficient servo motor drive systems.
