Operator by Part Control Chart in Gage R&R Studies

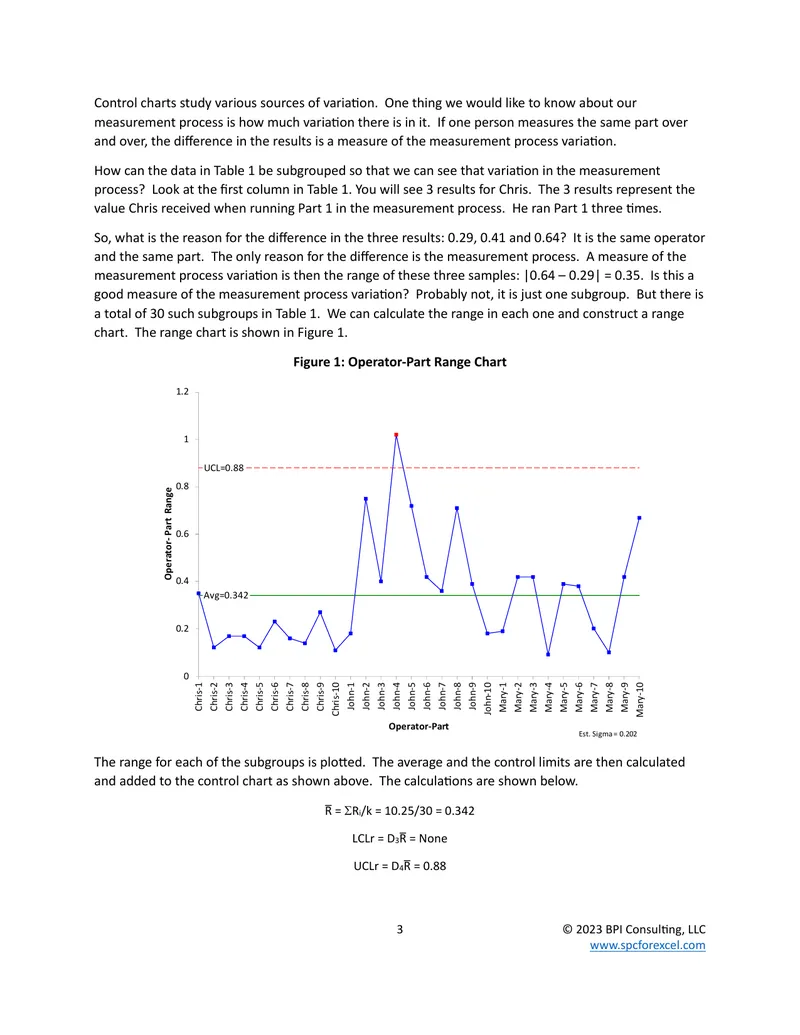

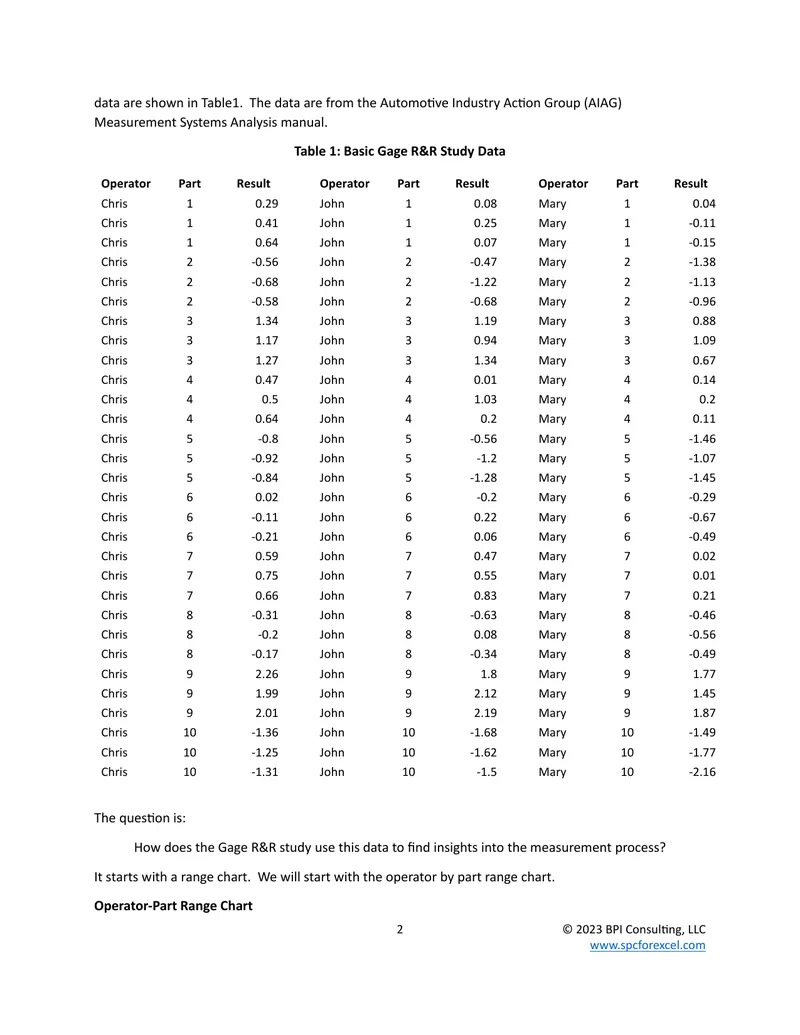

This technical report examines the Operator by Part Control Chart within the context of Gage R&R studies, which are essential for assessing the quality of measurement processes. The report outlines the significance of the control chart in visualizing measurement process variation and determining the need for adjustments in the study. It details two critical decisions necessary for setting up a Gage R&R study, including the selection of parts, operators, and trials. The report presents example data from a Gage R&R study involving three operators and ten parts, illustrating how to analyze measurement process variation through range and average charts. The analysis includes the calculation of control limits and the interpretation of results, emphasizing the importance of identifying out-of-control points and ensuring consistency in measurements. The report concludes by discussing the implications of measurement process variation on overall study results and the potential need for further investigation or repetition of the study.
