Type 1 Gage Study Methodology and Analysis

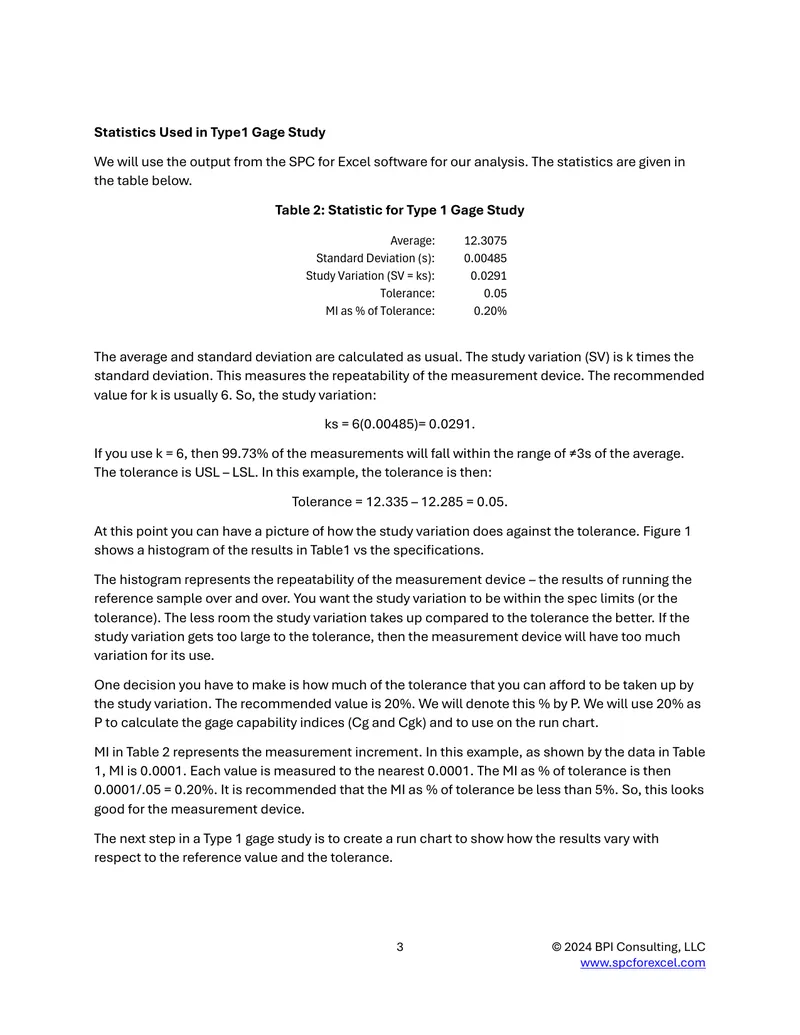

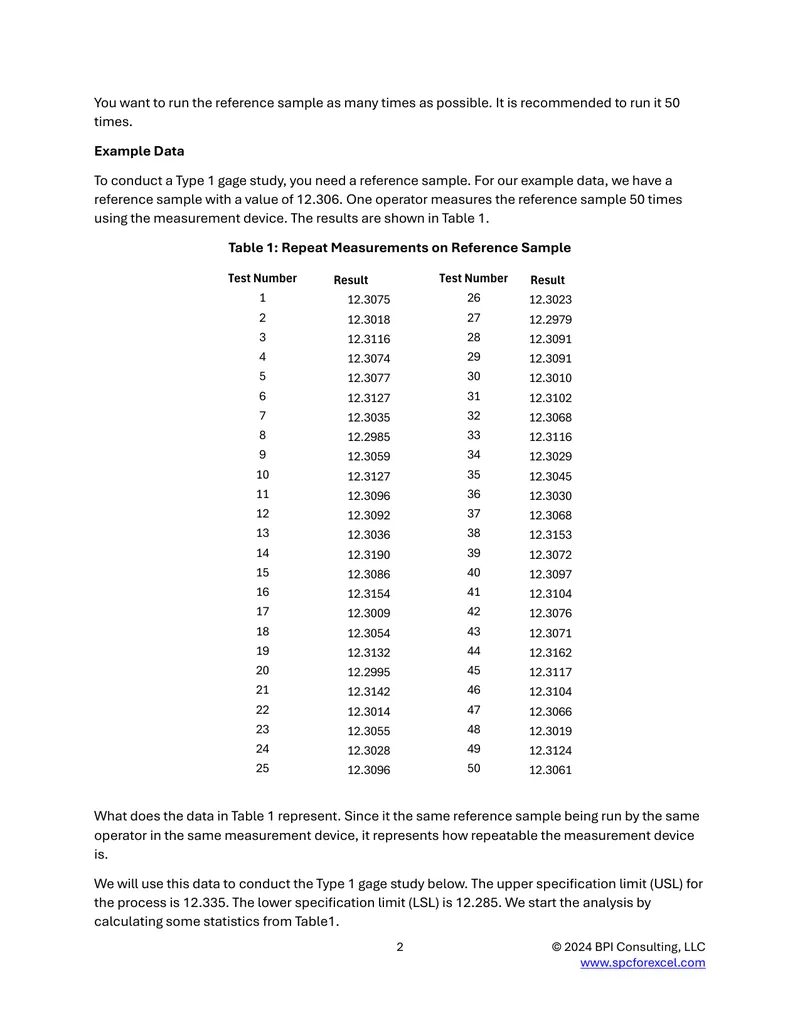

This document is a technical report that introduces the Type 1 gage study, which is essential for evaluating the repeatability and bias of measurement devices. It outlines the necessity of measurement systems to be accurate and precise, emphasizing the importance of conducting gage studies to assess these qualities. The report details the steps involved in performing a Type 1 gage study, including data collection, statistical analysis, and the construction of run charts. It presents example data to illustrate the process, including calculations for average, standard deviation, and study variation. The report also discusses the significance of the bias in measurements and how to assess the capability of the measurement device using indices such as Cg and Cgk. The findings indicate that the measurement device in the example does not meet acceptable capability standards, highlighting the need for further evaluation and potential adjustments to improve accuracy and reliability.
