Optimization of CNC Machine Components Using 3D Printing

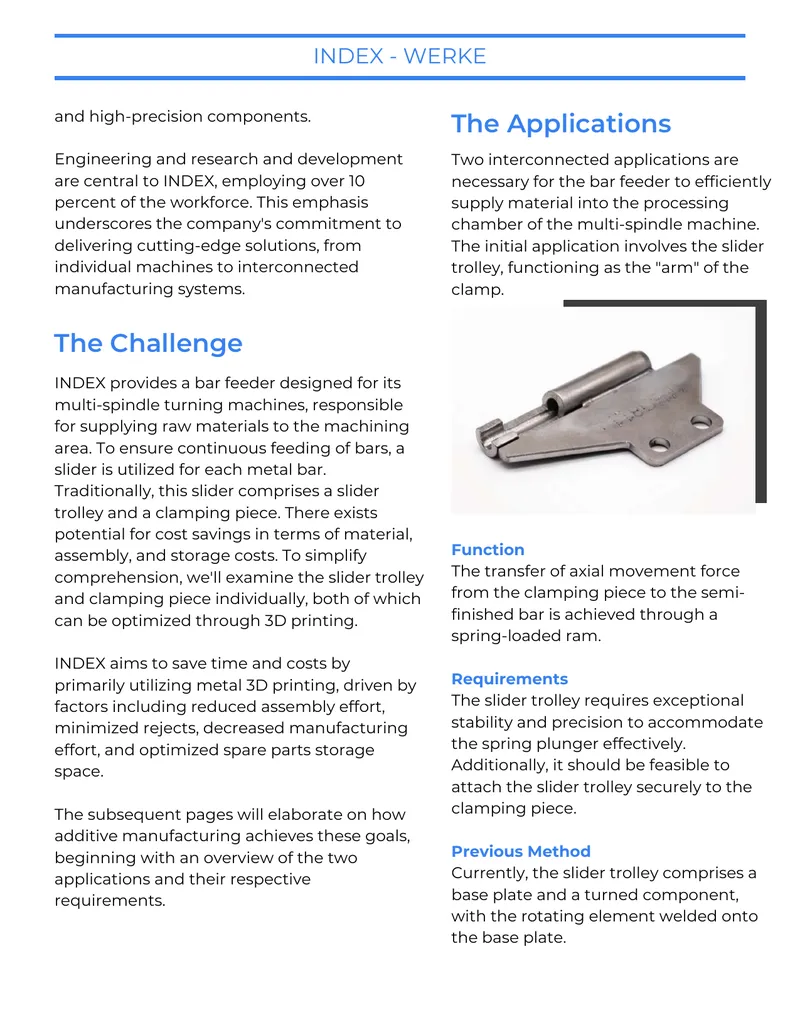

This technical report discusses the optimization of CNC machine components, specifically focusing on the slider trolley and clamping piece used in multi-spindle turning machines. The report outlines the challenges associated with traditional manufacturing methods, including high production costs and complex assembly processes. It details the annual production requirements for both components, highlighting the need for 520 units of each, with associated costs of €66,040 for slider trolleys and €106,600 for clamping pieces. The report explains how metal 3D printing was chosen as a solution to streamline production and reduce costs. By utilizing this technology, the company achieved significant improvements, including a 62% reduction in costs, 66% less storage space needed, and an 80% reduction in assembly effort. The report emphasizes the benefits of additive manufacturing in enhancing efficiency and reliability in the production of critical components for CNC machines.
