Comparison of Forward and Flyback Power Supply Topologies

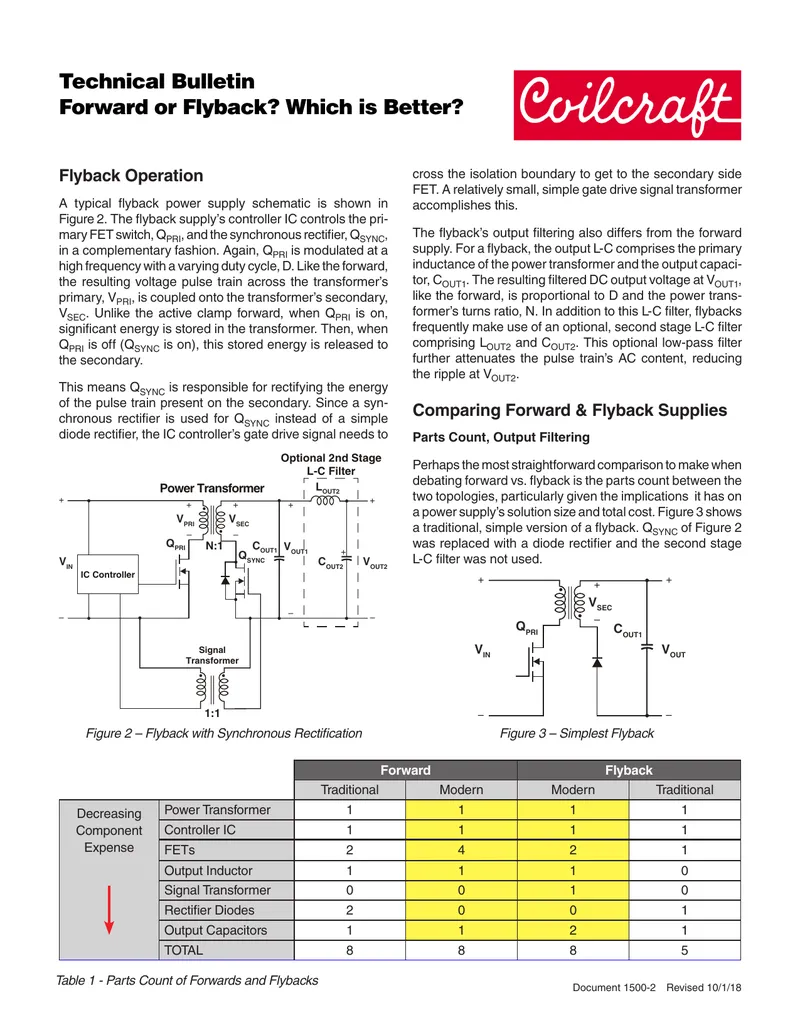

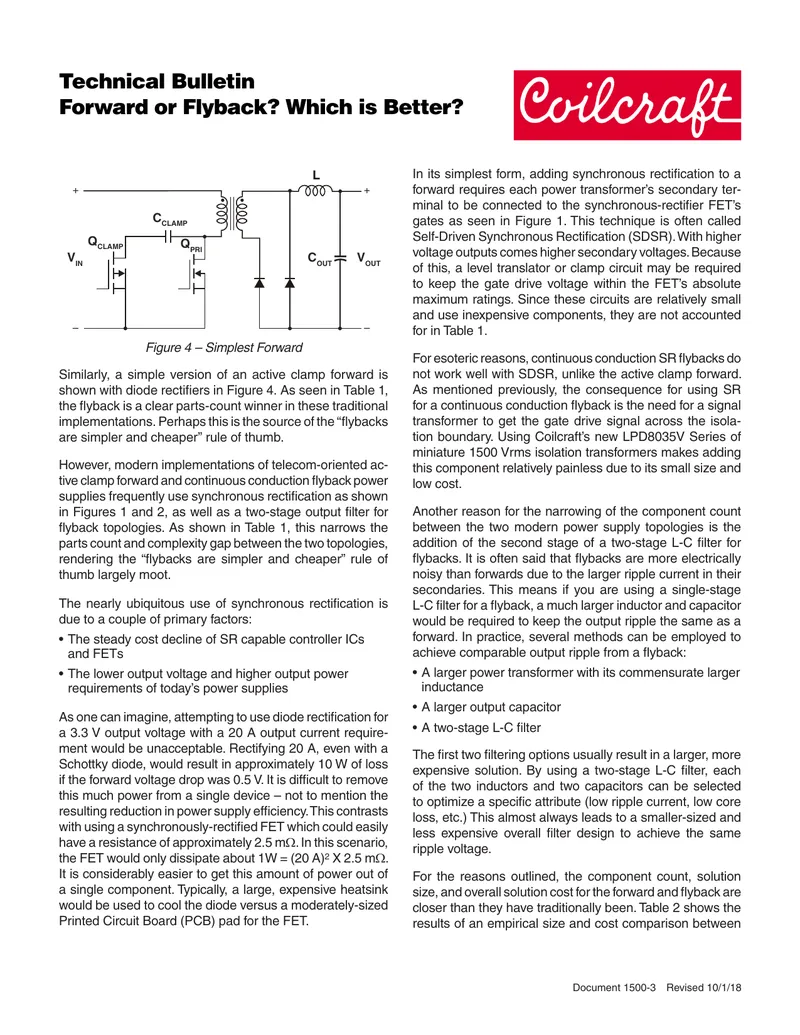

This technical bulletin discusses the characteristics and design trade-offs between forward and flyback isolated power supply topologies. It specifically examines the performance implications of each topology using two telecom-oriented power supplies as examples, which are compliant with the IEEE 802.3bt standard. The bulletin outlines the operation of active clamp forward and continuous conduction flyback topologies, detailing their respective components and functionality. It also compares the parts count and output filtering requirements of both designs, noting that modern implementations have narrowed the gap in complexity and cost between the two. The bulletin highlights the increasing attractiveness of forward topologies due to advancements in transformer technology and semiconductor devices, while also addressing the challenges associated with flyback designs. The document provides a factual analysis of the operational principles and efficiency considerations for both power supply types, aiming to inform design decisions in power supply applications.
