Grounding of HVAC Motor Shafts for Bearing Protection

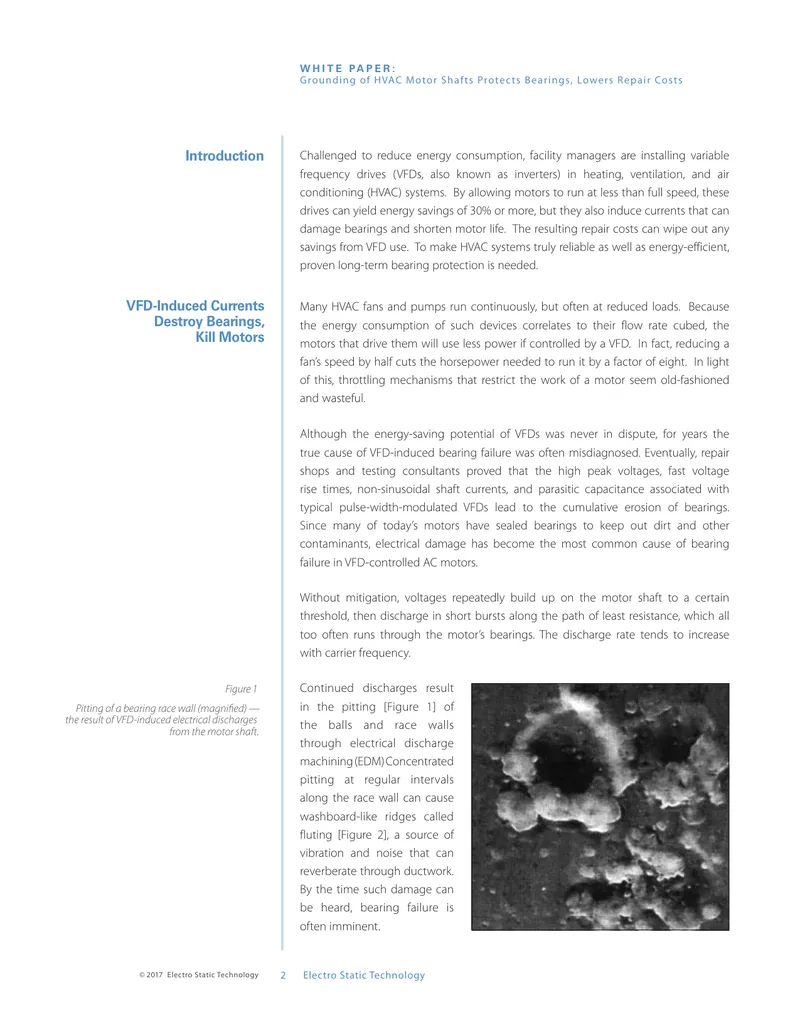

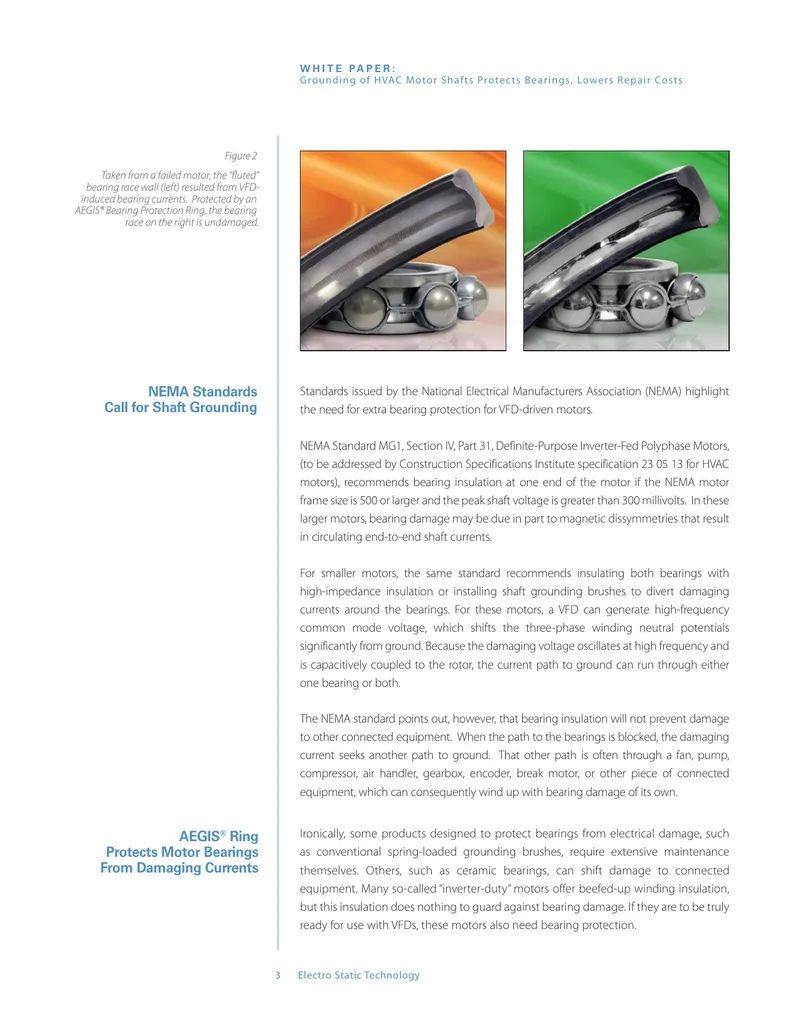

This white paper discusses the grounding of HVAC motor shafts as a method to protect bearings and reduce repair costs. It outlines the challenges posed by variable frequency drives (VFDs), which are commonly used to enhance energy efficiency in HVAC systems. While VFDs can lead to significant energy savings, they also induce damaging electrical currents that can lead to premature bearing failure. The paper details how these currents can cause pitting and fluting in bearings, ultimately resulting in motor failure. It references the National Electrical Manufacturers Association (NEMA) standards that recommend various protective measures, including bearing insulation and the installation of shaft grounding brushes. The document highlights the AEGIS® Bearing Protection Ring as an effective solution to mitigate the risks associated with VFD-induced currents. It presents case studies demonstrating the successful implementation of these rings in HVAC applications, showcasing their ability to significantly reduce harmful shaft currents and improve motor reliability.
