ETAP Transient Stability Validation Case Study

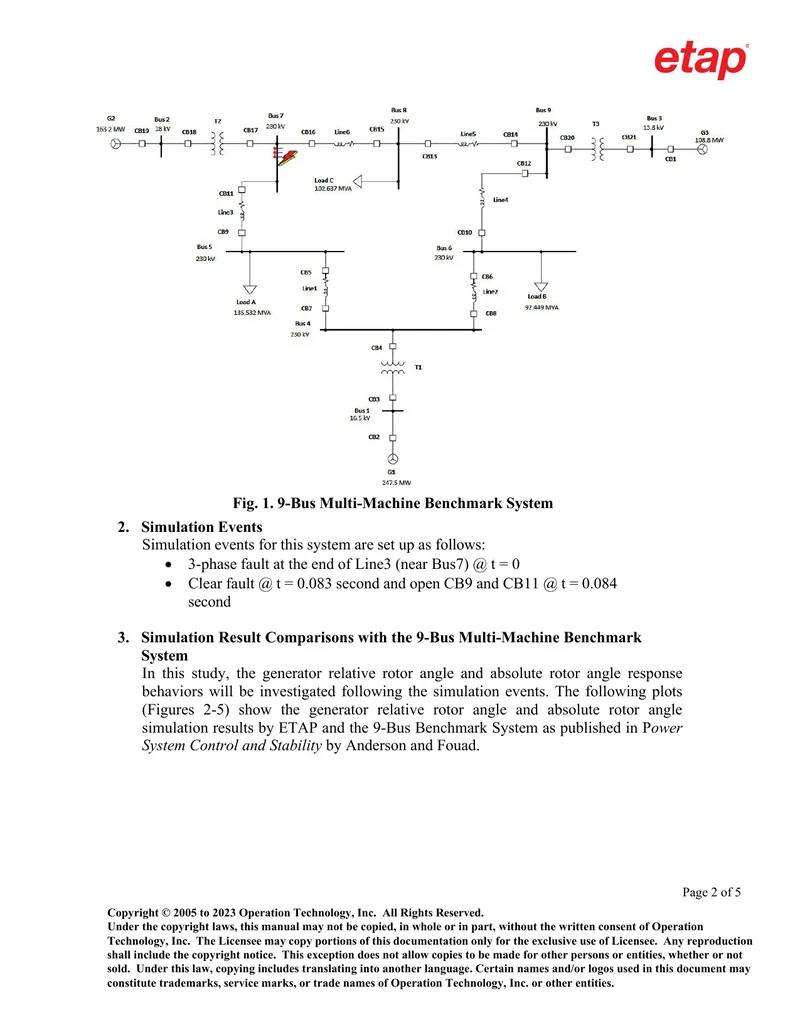

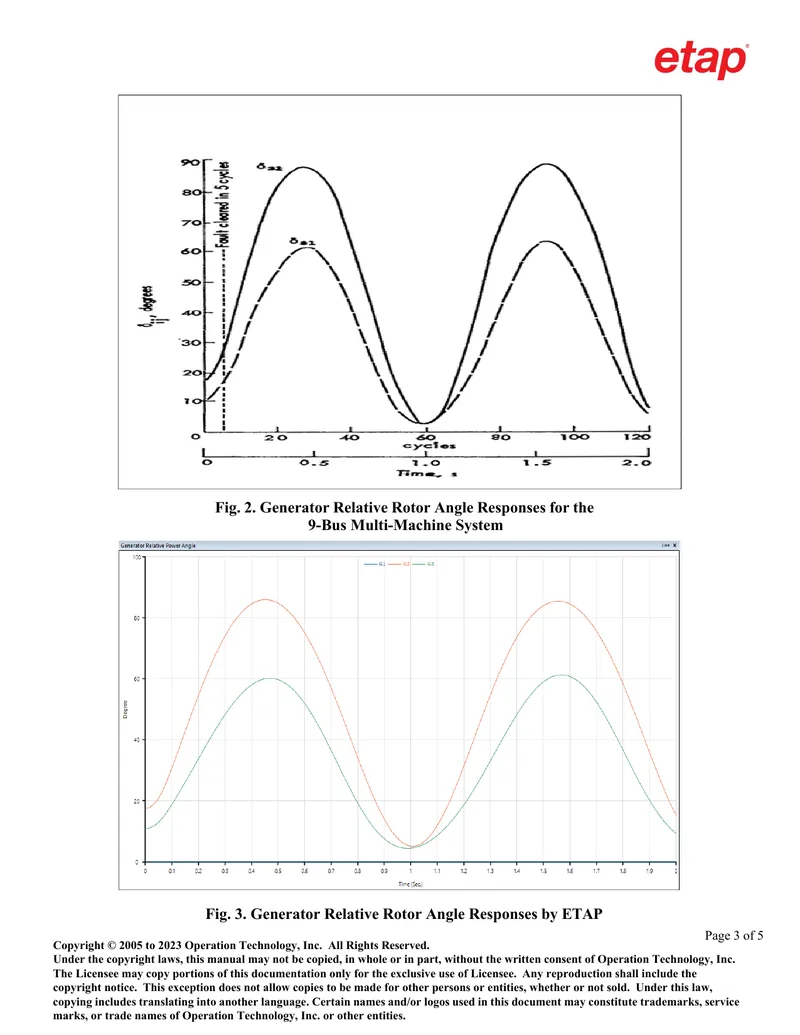

This document is a case study focusing on the ETAP Transient Stability validation for a 9-bus multi-machine system benchmark, specifically identified as Case No. 4. The study compares the simulation results of the ETAP Transient Stability tool with the established benchmark from 'Power System Control and Stability' by Anderson and Fouad. It details the rotor angle stability analysis within a multi-machine transmission system, including the setup of simulation events such as a 3-phase fault and subsequent fault isolation. The results indicate that the initial rotor angles, maximum rotor angles, oscillation frequencies, and overall response curves for both the ETAP simulations and the benchmark are nearly identical, demonstrating a close correlation. The document also discusses the modeling of generators and the simulation parameters used, concluding that the ETAP results align closely with the benchmark findings, with minor discrepancies attributed to the use of typical damping coefficients in the ETAP model.
