Injection Molding Design Guide

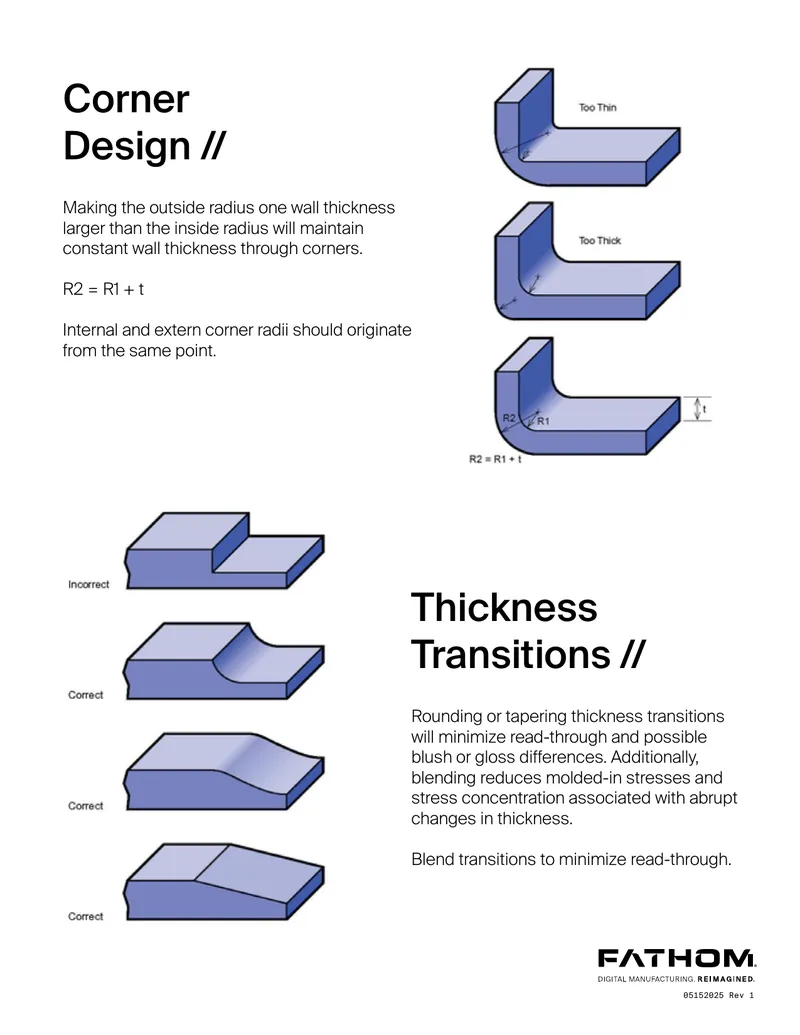

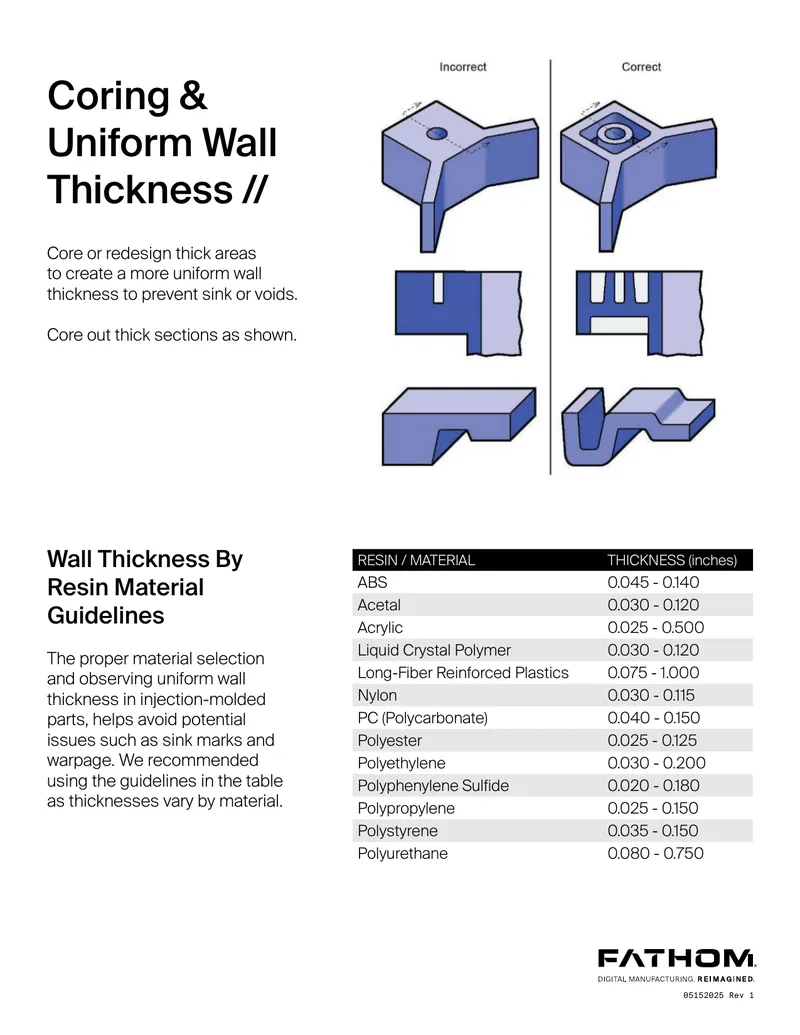

This guide provides detailed information on designing for injection molding, emphasizing the importance of precision tooling and the need for careful design to avoid costly production issues. It outlines common design problems and best practices to prevent mistakes during the mold-making process. The document discusses critical aspects such as coring, wall thickness, corner design, ribs, bosses, and draft angles, offering guidelines for each to ensure effective manufacturing. It highlights the significance of uniform wall thickness and proper material selection to mitigate potential issues like sink marks and warpage. Additionally, the guide includes specific recommendations for rib and boss designs, addressing factors that influence their effectiveness and potential problems. The content serves as a comprehensive resource for manufacturers and designers to enhance product quality and efficiency in the injection molding process.
