Ground Fault Detection and Repair in Solar PV Systems

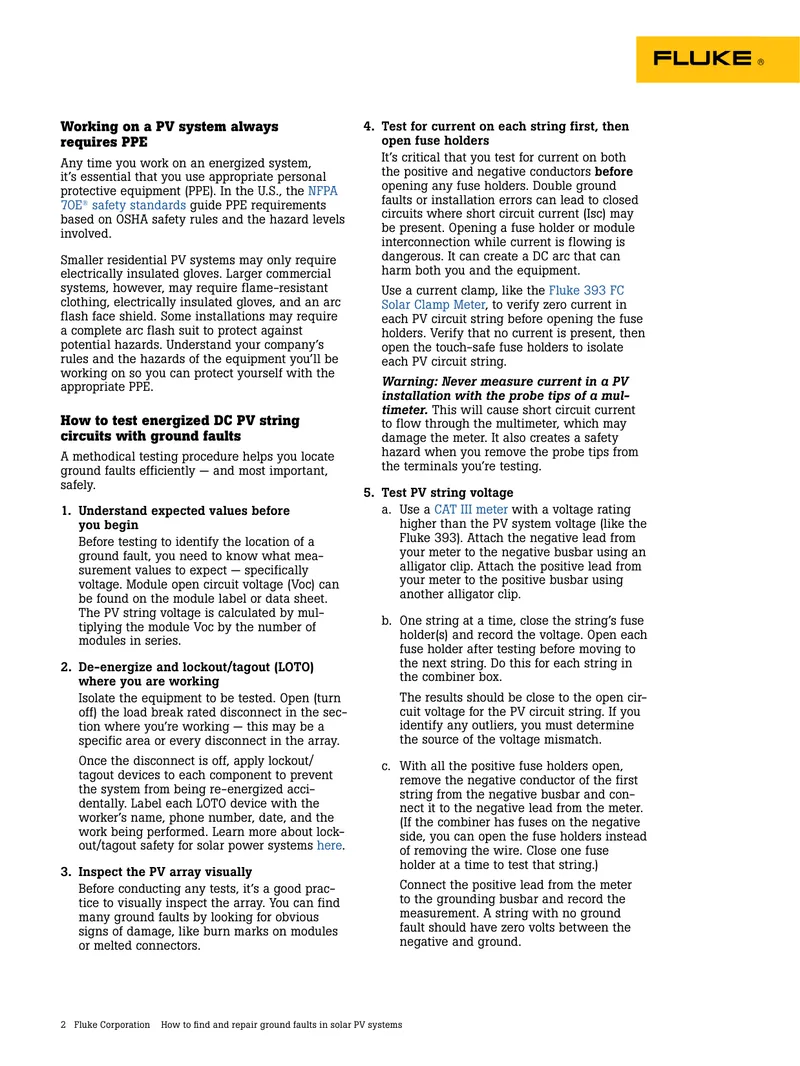

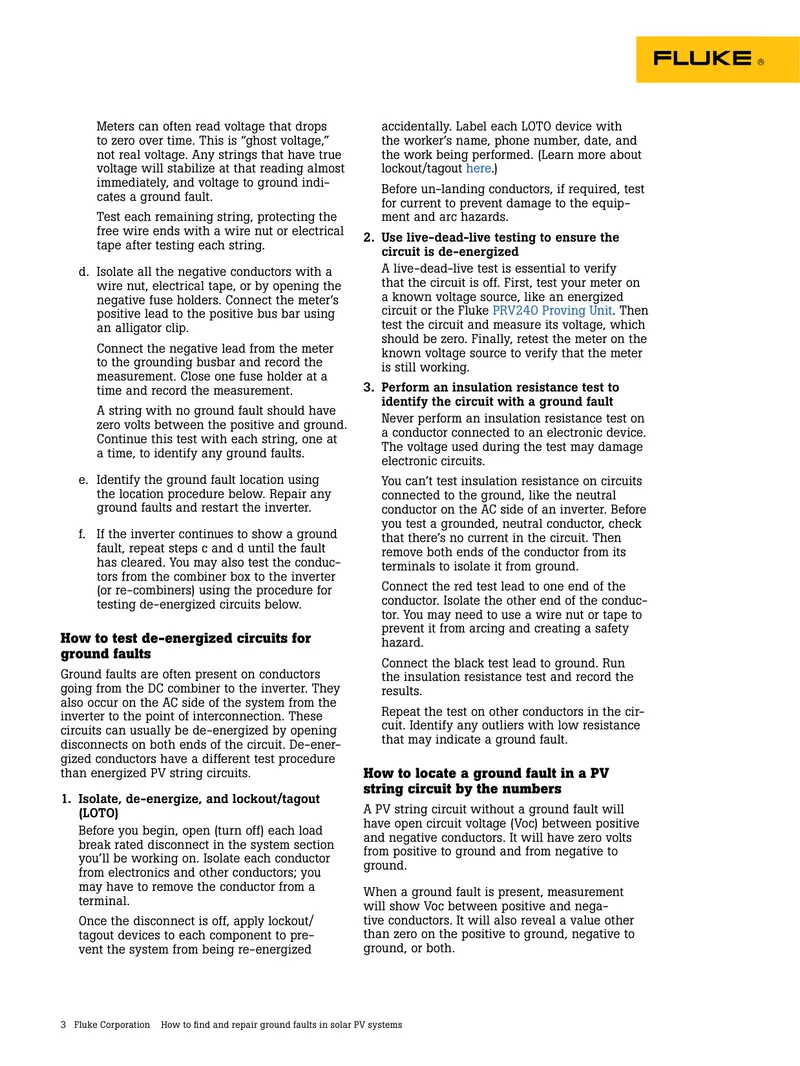

This technical report outlines the procedures for identifying and repairing ground faults in solar photovoltaic (PV) systems. Ground faults, which are unintentional connections between current-carrying conductors and grounded parts, can significantly affect the performance and safety of solar installations. The document defines ground faults and describes their types, including hard and intermittent faults, along with common causes such as installation errors and environmental factors. It details the protective measures for solar inverters, emphasizing the necessity of ground fault detection and interruption (GFDI) devices. The report provides a systematic approach for testing energized and de-energized circuits, including safety protocols like lockout/tagout (LOTO) and the use of appropriate personal protective equipment (PPE). Additionally, it explains how to measure voltages in PV string circuits to identify ground faults accurately. The document serves as a comprehensive guide for solar technicians to ensure safe and effective maintenance of PV systems.
