Leak Point Detection in Semiconductor Chambers

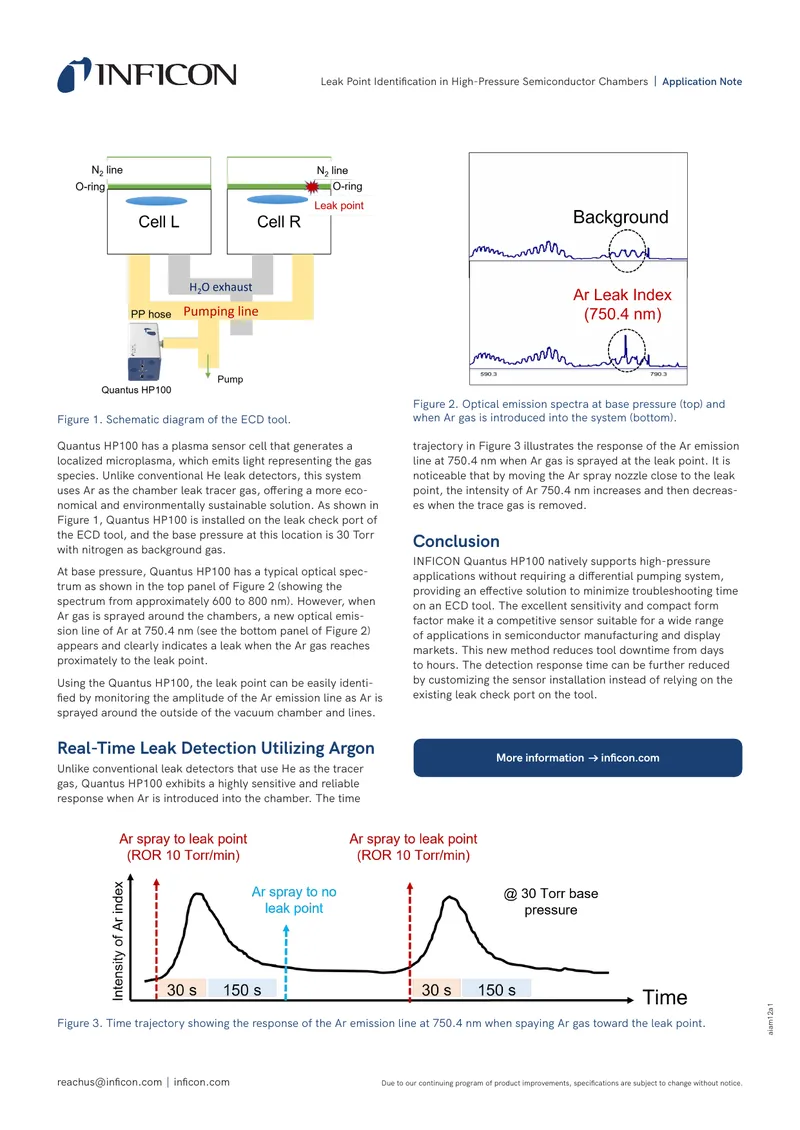

This application note discusses the use of the INFICON Quantus HP100 gas analyzer for leak point detection in semiconductor chambers operating under rough vacuum conditions. It outlines the critical importance of chamber integrity during electrochemical deposition (ECD) processes, where even minor leaks can significantly affect process stability and yield. The document describes the challenges faced in identifying leak points, particularly the time-consuming nature of traditional methods that rely on helium gas. It presents a test case where the Quantus HP100 was employed to troubleshoot an ECD tool, detailing its capabilities in detecting leaks using argon as a tracer gas. The note explains the advantages of the Quantus HP100, including its sensitivity and compact design, which allow for effective leak detection without the need for a differential pumping system. The conclusion emphasizes the tool's ability to reduce troubleshooting time from days to hours, thereby enhancing operational efficiency in semiconductor manufacturing.
