Design Considerations for Electrical Fast Transient Immunity

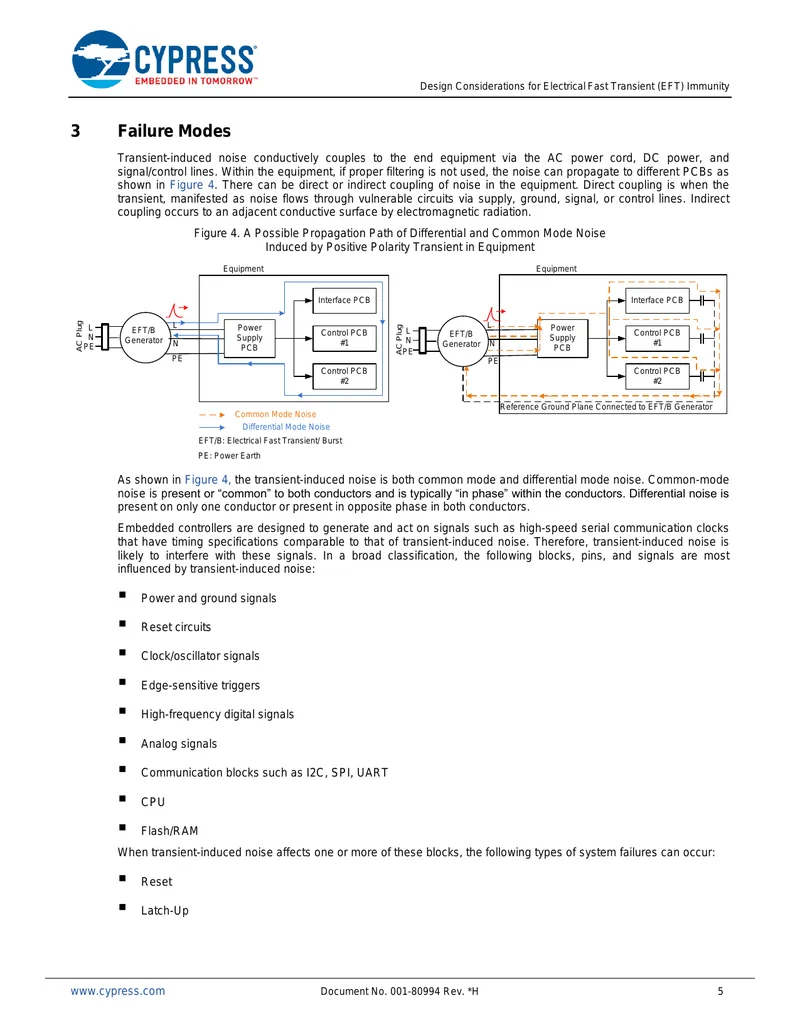

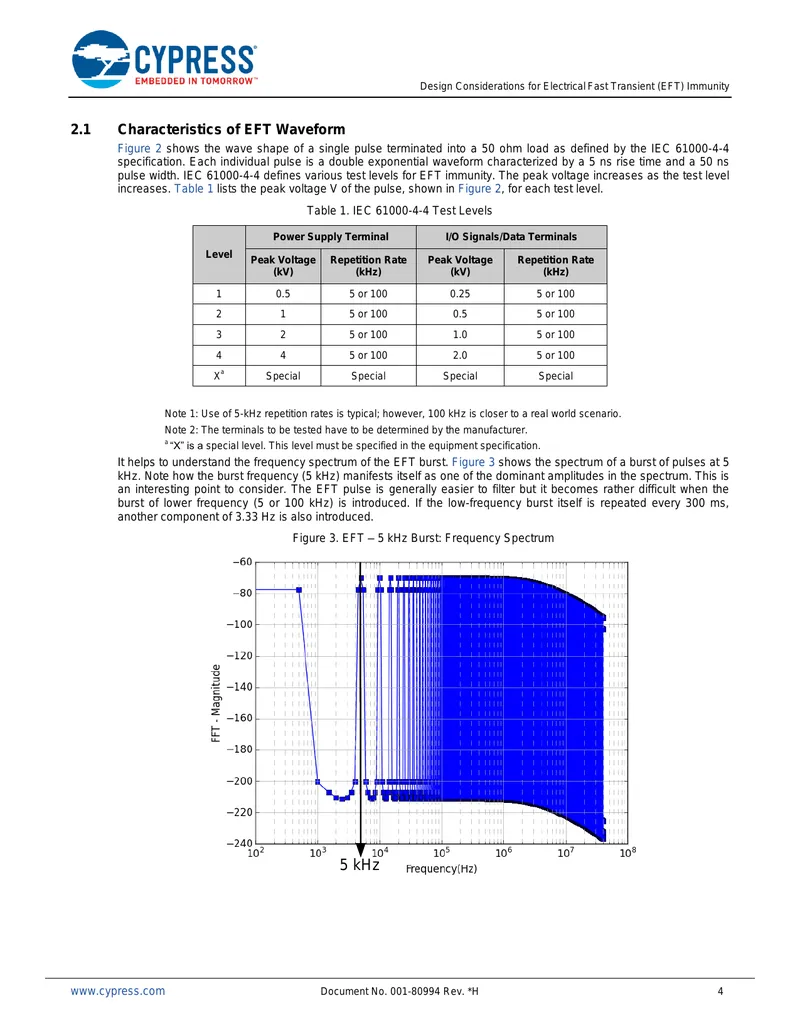

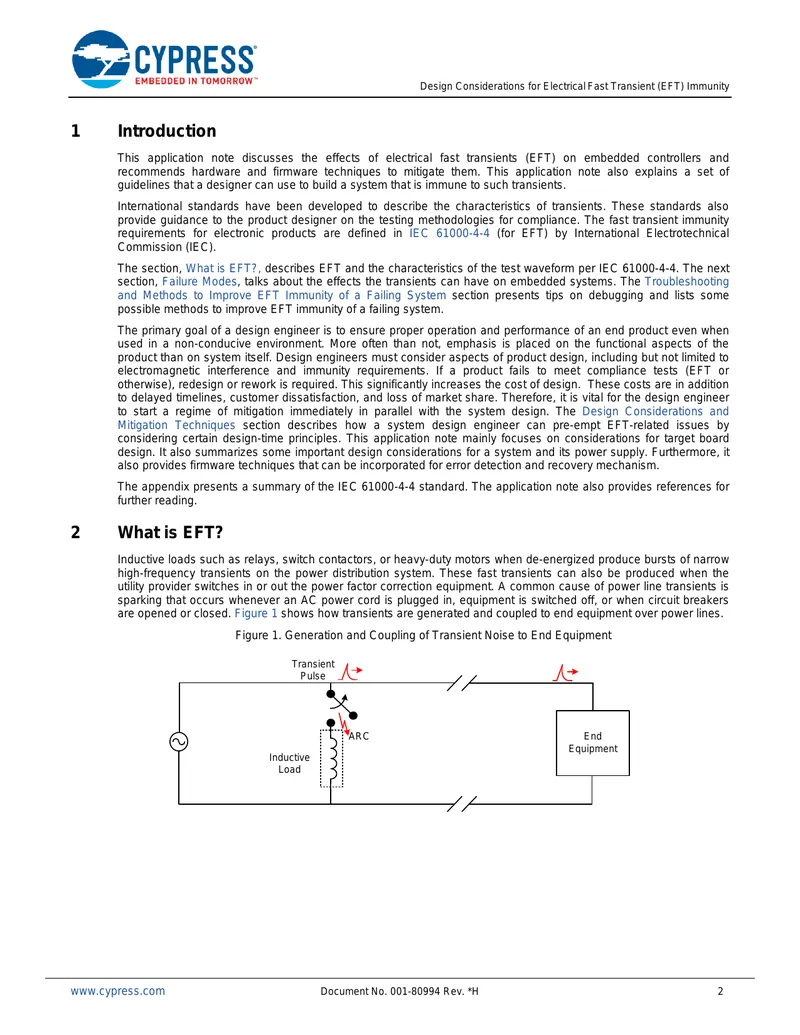

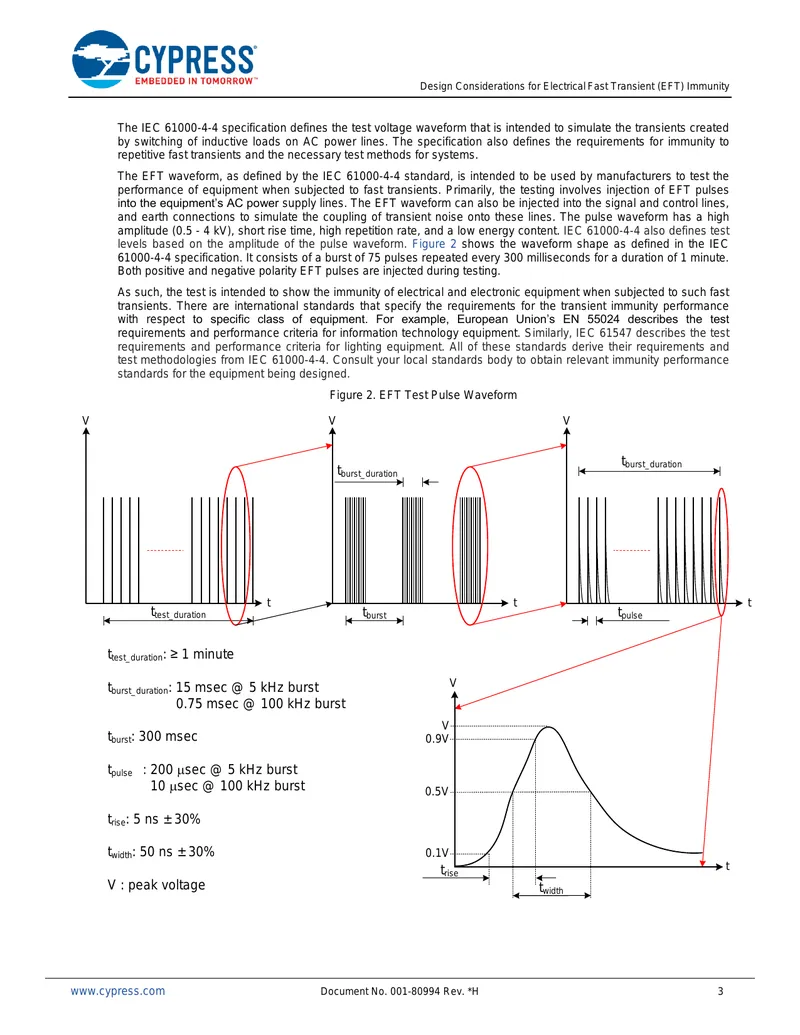

This technical report discusses the design considerations for improving electrical fast transient (EFT) immunity in embedded systems. It outlines the effects of fast transients on mixed-signal embedded controllers and provides methods to enhance EFT immunity. The document details the IEC 61000-4-4 EFT test requirements, which serve as a standard for testing the immunity of electronic products against fast transients. It explains the characteristics of EFT waveforms, failure modes associated with transients, and troubleshooting methods to improve system performance. The report emphasizes the importance of considering electromagnetic interference and immunity requirements during the design phase to avoid costly redesigns. It also includes guidelines for hardware and firmware techniques that can be implemented to mitigate the effects of EFT. The appendix summarizes the IEC 61000-4-4 standard, providing additional context for compliance testing. Overall, the report serves as a comprehensive guide for design engineers focused on enhancing the resilience of embedded systems to electrical fast transients.
