Summary

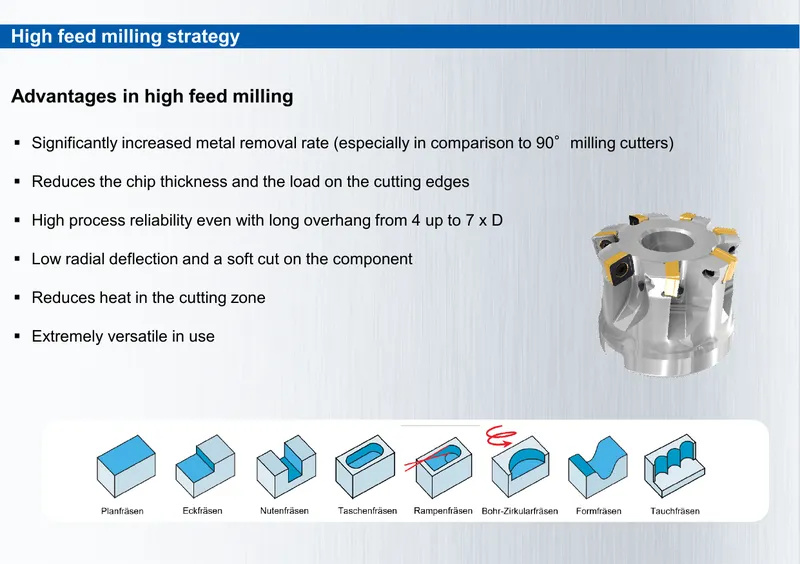

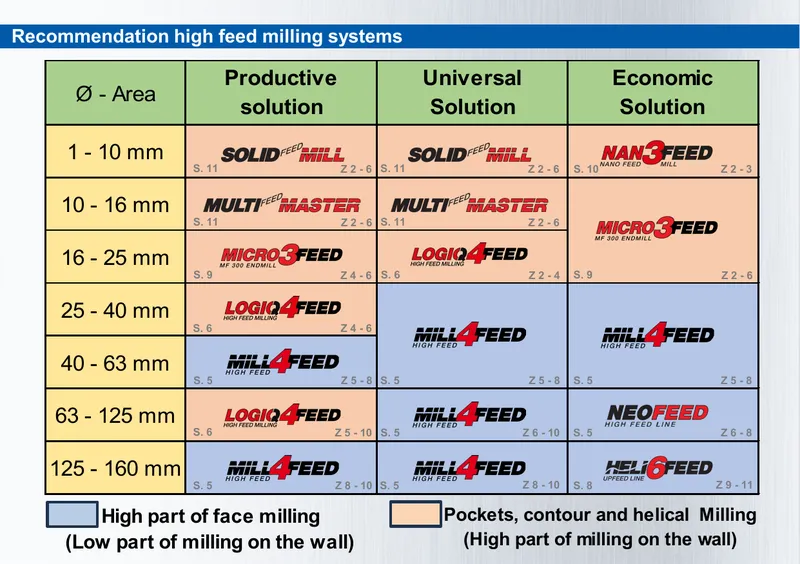

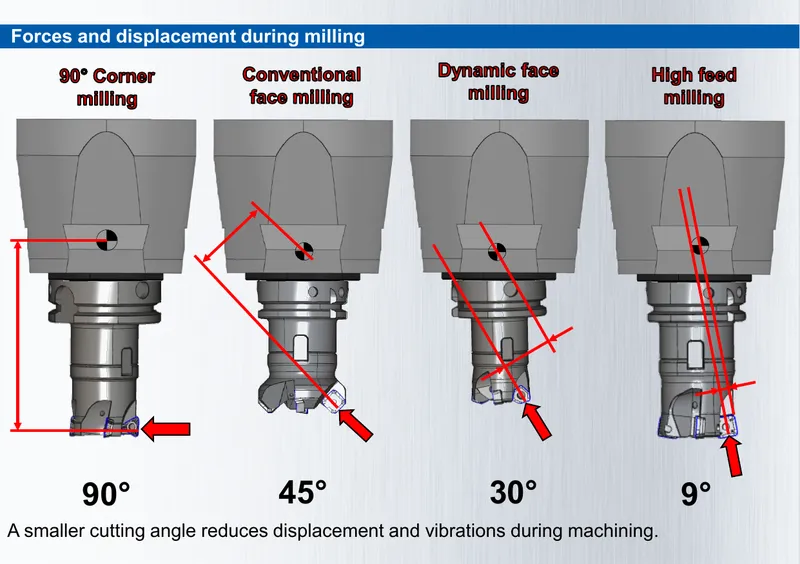

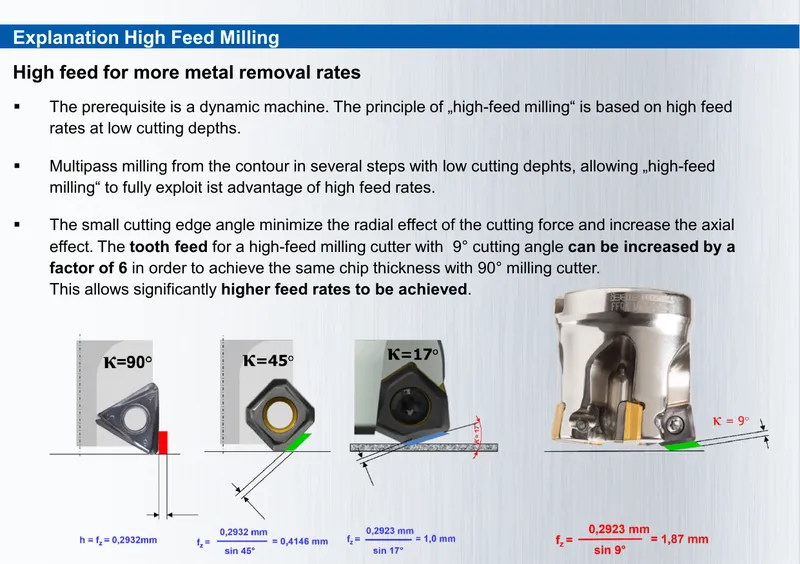

This guide provides an in-depth explanation of high feed milling, focusing on its principles and advantages in machining processes. High feed milling is characterized by high feed rates at low cutting depths, which necessitates the use of a dynamic machine. The document outlines the multipass milling technique, emphasizing how it allows for the effective exploitation of high feed rates. The guide details the benefits of using a smaller cutting edge angle, which minimizes radial cutting force effects and enhances axial force, enabling significant increases in feed rates. Additionally, the document discusses the advantages of high feed milling, including increased metal removal rates, reduced chip thickness, and improved process reliability, even with long overhangs. It also highlights the versatility of high feed milling systems and provides recommendations for various milling applications. Overall, this practical guide serves as a comprehensive resource for understanding and implementing high feed milling strategies.
