Industrial Hydraulic Hose Selection Guidelines

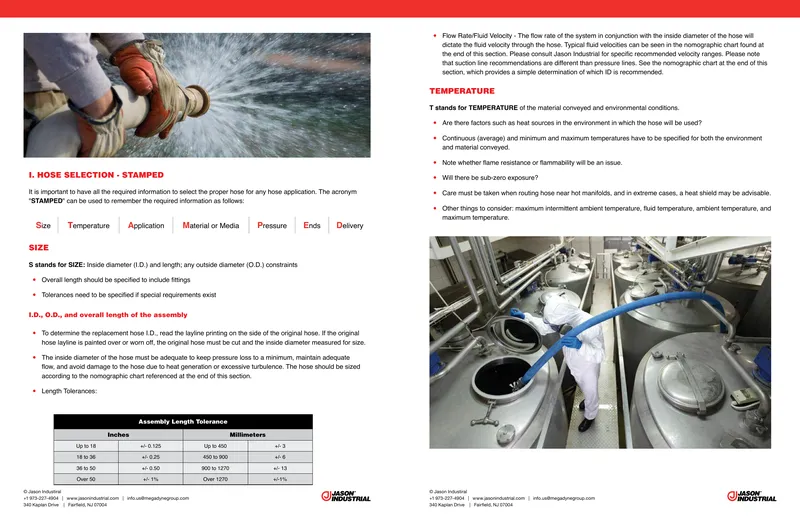

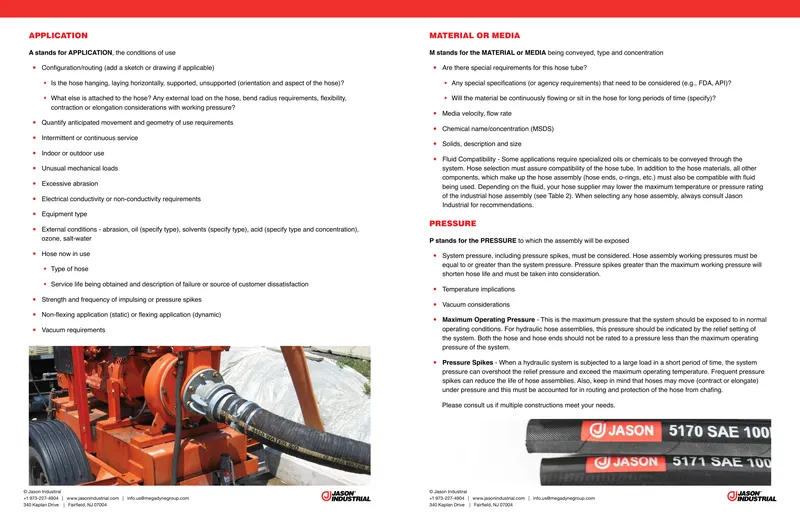

This guide details the process of selecting the appropriate hydraulic hose for various applications, utilizing the acronym STAMPED to outline key factors. The acronym stands for Size, Temperature, Application, Material or Media, Pressure, Ends, and Delivery. Each factor is elaborated upon, beginning with Size, which emphasizes the importance of inside diameter, outside diameter, and overall length, including tolerances. Temperature considerations include environmental factors and the material being conveyed. The Application section addresses conditions of use, such as configuration, anticipated movement, and external loads. Material or Media focuses on the type and concentration of substances conveyed, while Pressure highlights the need to account for system pressure and pressure spikes. The Ends section discusses attachment methods and styles, and Delivery pertains to customer-specific requirements. Additionally, the document includes a table for pressure re-rating percentages based on temperature and a nomographic chart for flow capacity, as well as common terms and thread compatibility.
