Summary

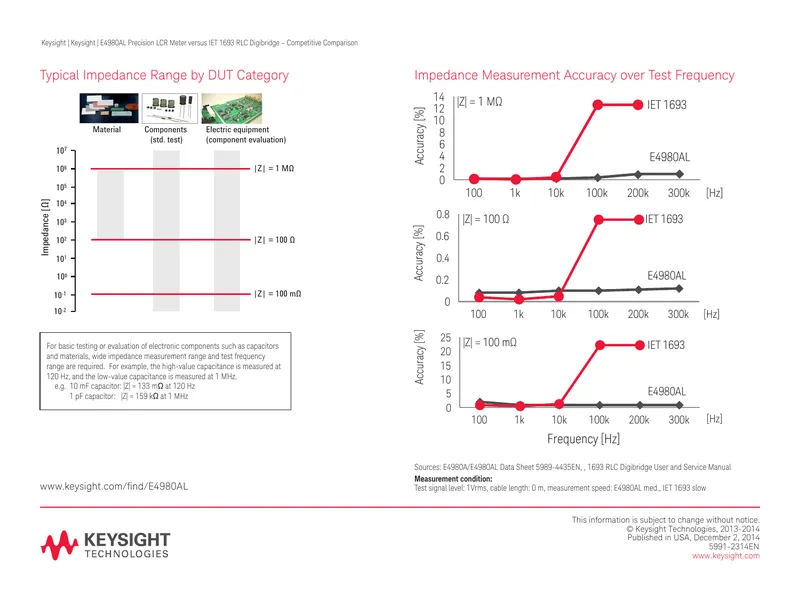

This technical report presents a competitive comparison between the Keysight E4980AL Precision LCR Meter and the IET 1693 RLC Digibridge. It outlines various specifications, including frequency range, test signal levels, accuracy, measurement speed, and features of both devices. The Keysight E4980AL operates within a frequency range of 20 Hz to 300 kHz, while the IET 1693 operates from 12 Hz to 200 kHz. The report details the test signal levels, indicating that the E4980AL has a test signal level of 2 Vrms, whereas the IET 1693 has a maximum of 1.275 Vrms. Additionally, it discusses measurement accuracy, with the E4980AL achieving a basic accuracy of 0.05% and the IET 1693 at 0.02%. The report also highlights the measurement speed, indicating that the E4980AL is significantly faster than the IET 1693. Other features such as USB/LAN interface, compensation methods, and available accessories are also compared.
