Single Flank and NVH Testing for Electric Vehicle Gears

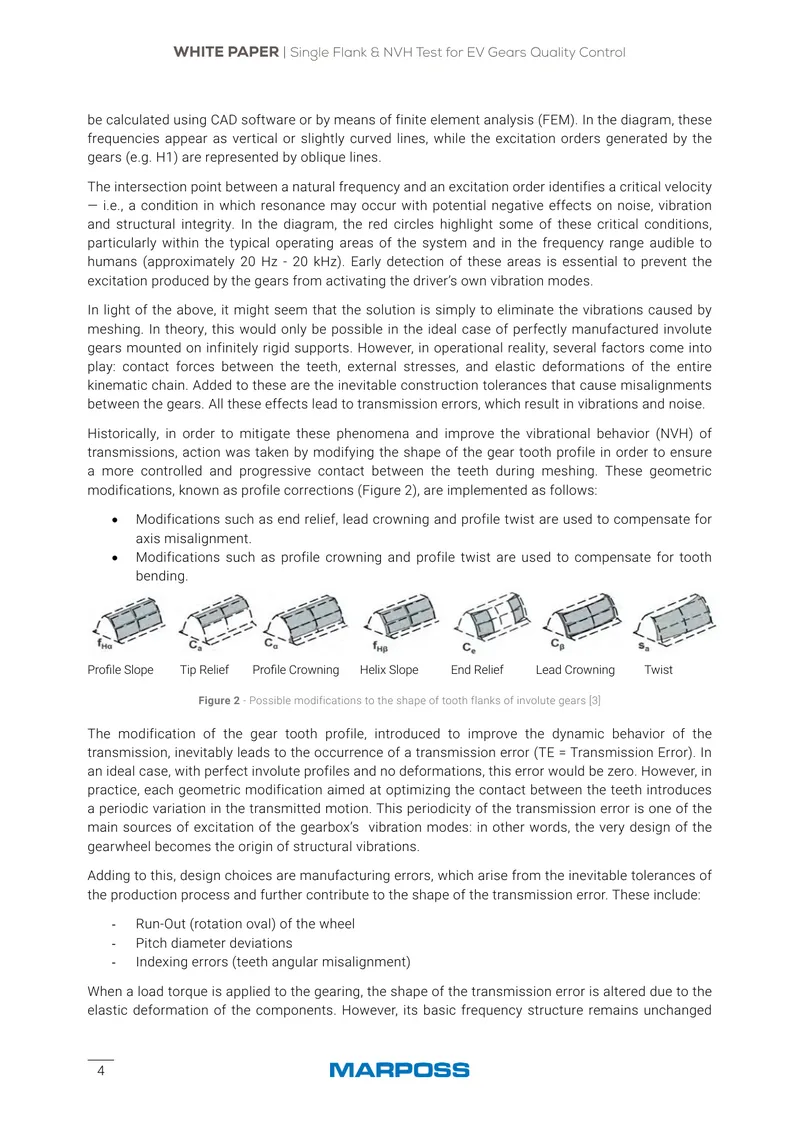

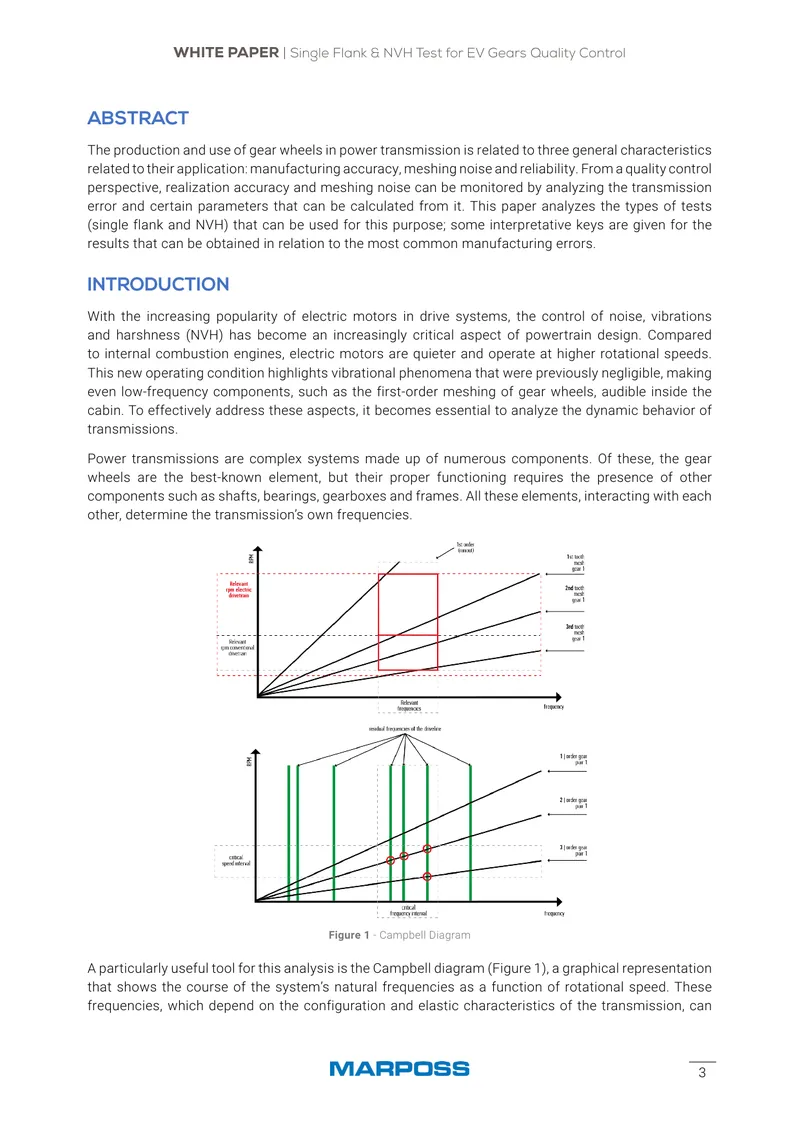

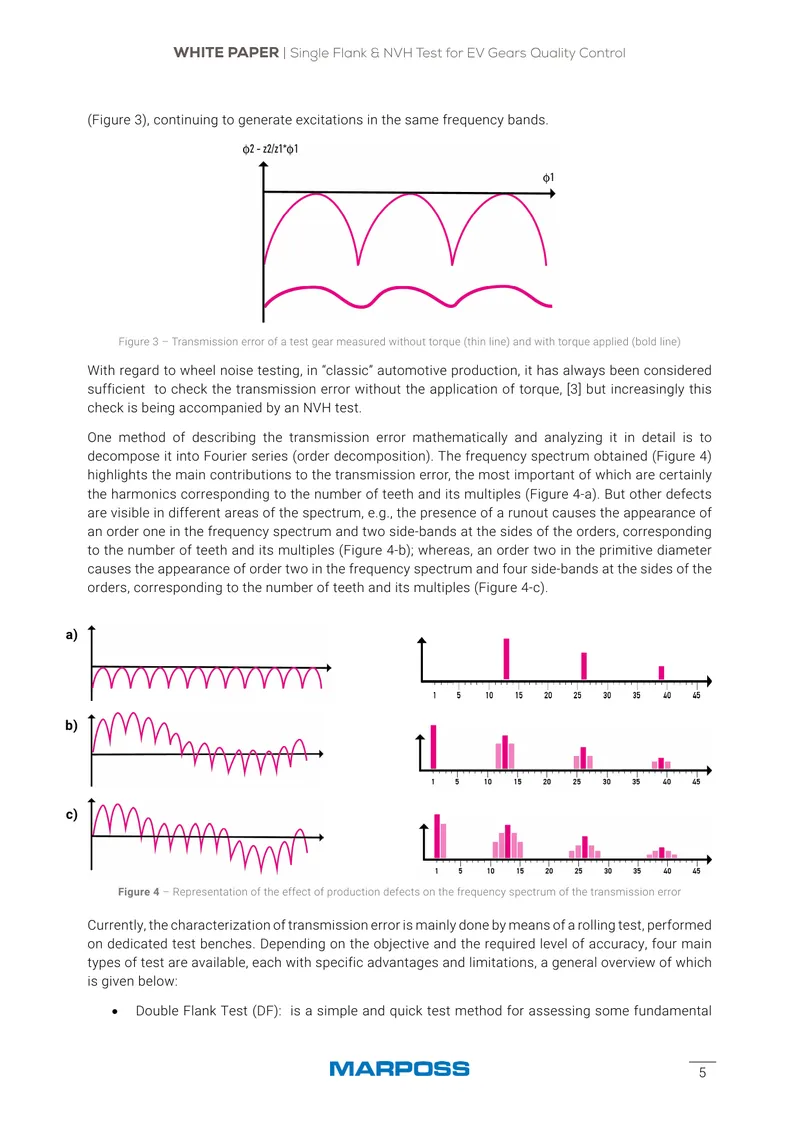

This white paper discusses the Single Flank and NVH testing methods for quality control of electric vehicle gears. It outlines the significance of monitoring manufacturing accuracy, meshing noise, and reliability in gear production. The paper details how transmission errors and specific parameters can be analyzed to ensure quality. It introduces the concept of NVH, which has gained importance due to the quieter operation of electric motors compared to internal combustion engines. The document explains the use of Campbell diagrams for analyzing the dynamic behavior of transmissions and highlights the role of gear tooth profile modifications in managing vibrations. It also describes various testing methods, including the Double Flank Test, Single Flank Test, and NVH tests, emphasizing the advantages and limitations of each. The integration of Single Flank and NVH testing techniques is proposed as a new standard for in-line quality control in the production of electric vehicle gearboxes, ensuring effective monitoring of gearbox noise and performance.
