Data Acquisition System for Solar Vehicle Twente One

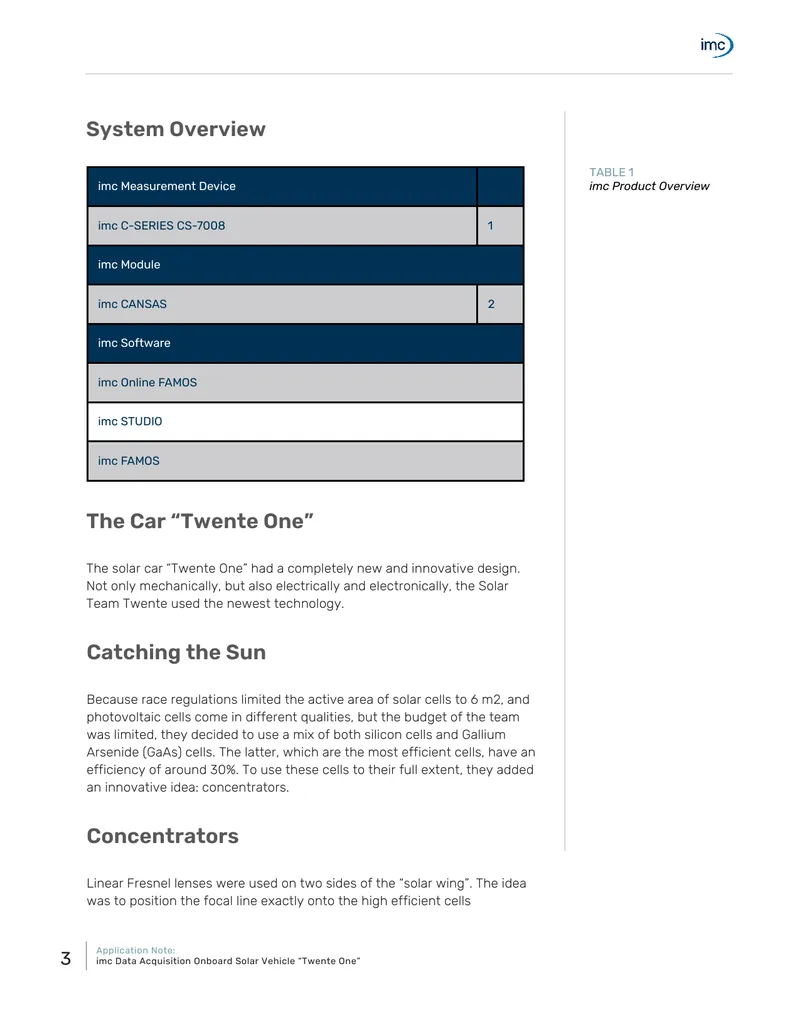

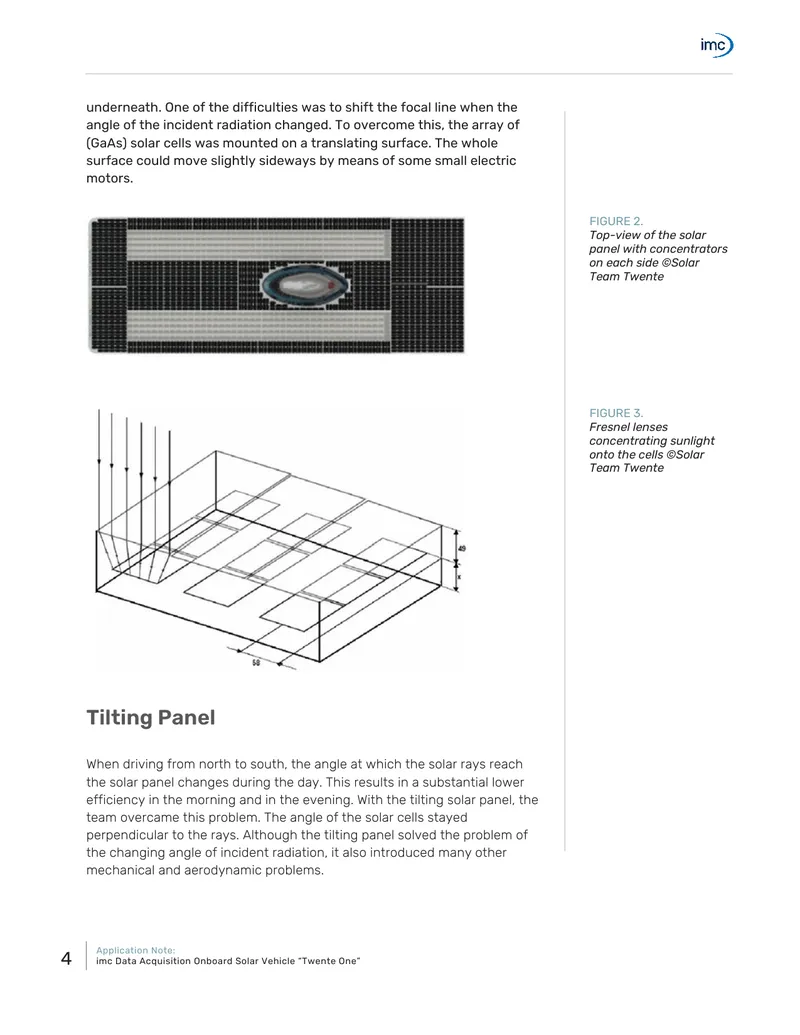

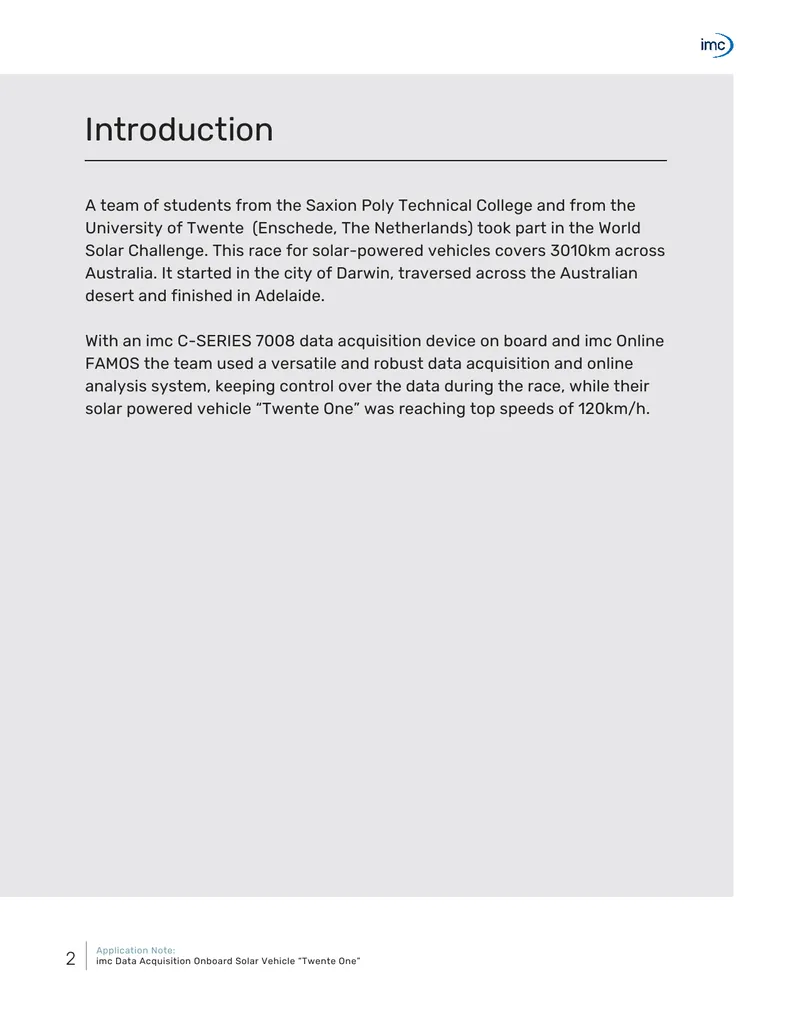

This application note details the data acquisition system utilized in the solar vehicle 'Twente One', developed by a team from Saxion Poly Technical College and the University of Twente for the World Solar Challenge. The document outlines the use of the imc C-SERIES 7008 data acquisition device, which enabled real-time data monitoring and analysis during the race. It describes the innovative design of the vehicle, including the integration of solar cells, a tilting solar panel, and Maximum Power Point Trackers (MPPT) to optimize energy efficiency. The note also explains the vehicle's electrical system, which includes a 6 kW electric motor and a sophisticated Battery Management System (BMS) for monitoring battery conditions. Furthermore, it discusses the challenges faced during the race, including mechanical issues, and the strategies employed to overcome them. The application note concludes with a summary of the race results, highlighting the team's sixth-place finish despite the difficulties encountered.
