Summary

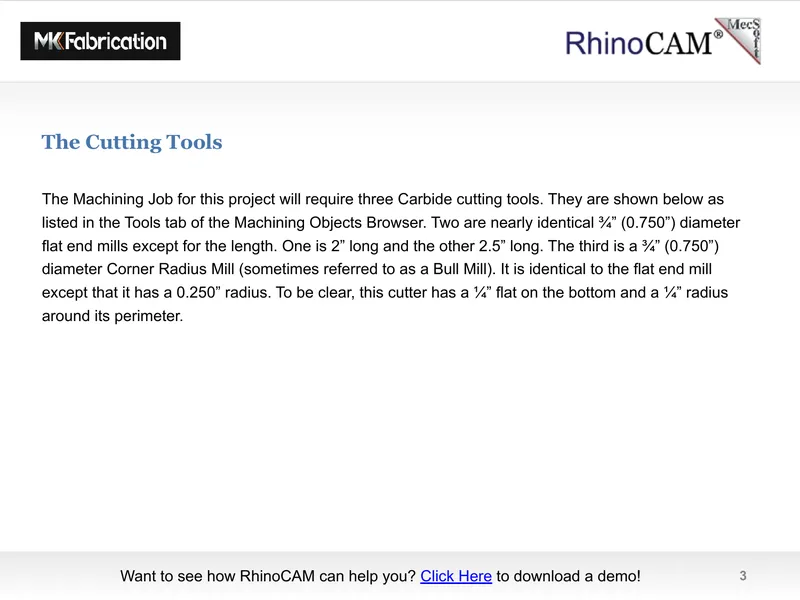

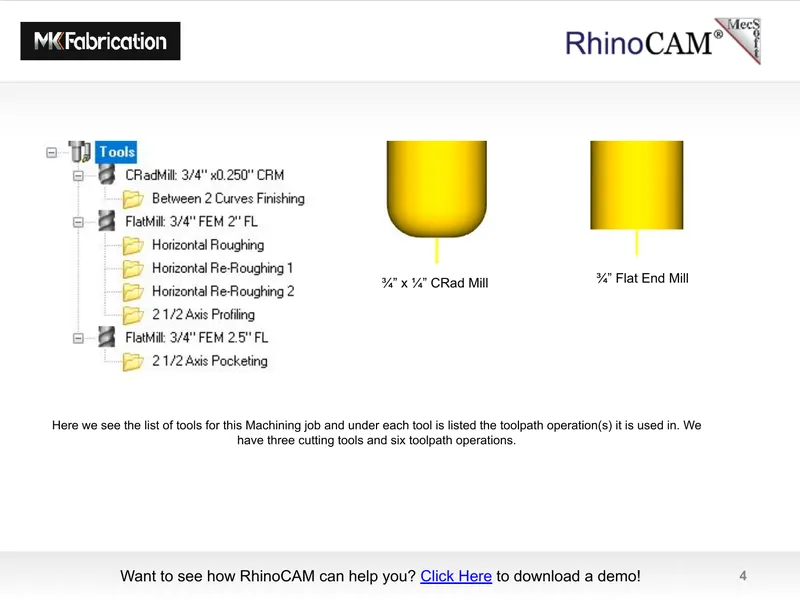

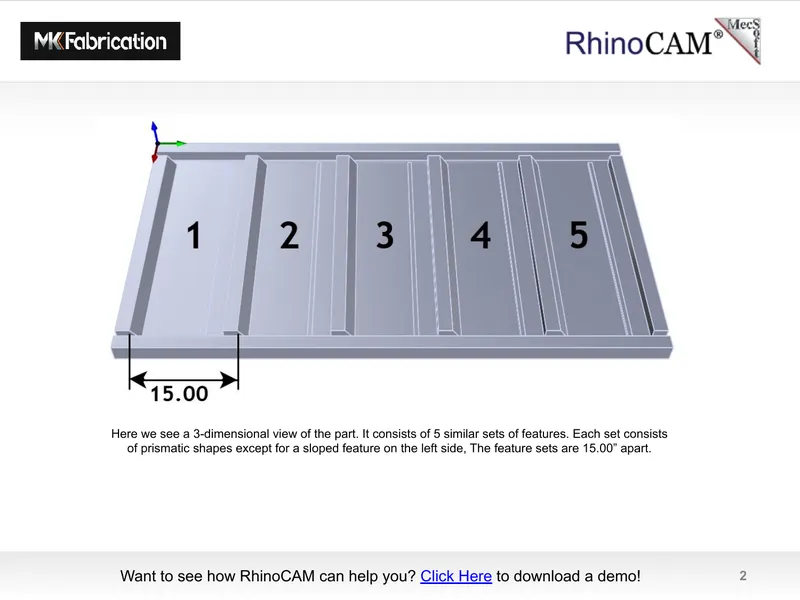

This case study details the machining process utilized by MK Fabrication, which is known for its mobile fabrication capabilities and custom tooling. The case study describes the specific part features involved, characterizing them primarily as prismatic with some sloped contours. It outlines the list of cutting tools required for the machining job, which includes carbide cutting tools and their specifications. The machining job section elaborates on the operations necessary to manufacture the part, such as 2½ Axis Pocketing and 3 Axis Horizontal Roughing, including parameters for each operation. Furthermore, it discusses the XY Instance operation in RhinoCAM, which allows for the efficient management of identical features across multiple sets. The document concludes with acknowledgment of MK Fabrication’s contributions and capabilities, highlighting their certifications and specialized services, thereby providing a comprehensive view of their operations within the context of RhinoCAM.
