LAN8830 Hardware Design Checklist

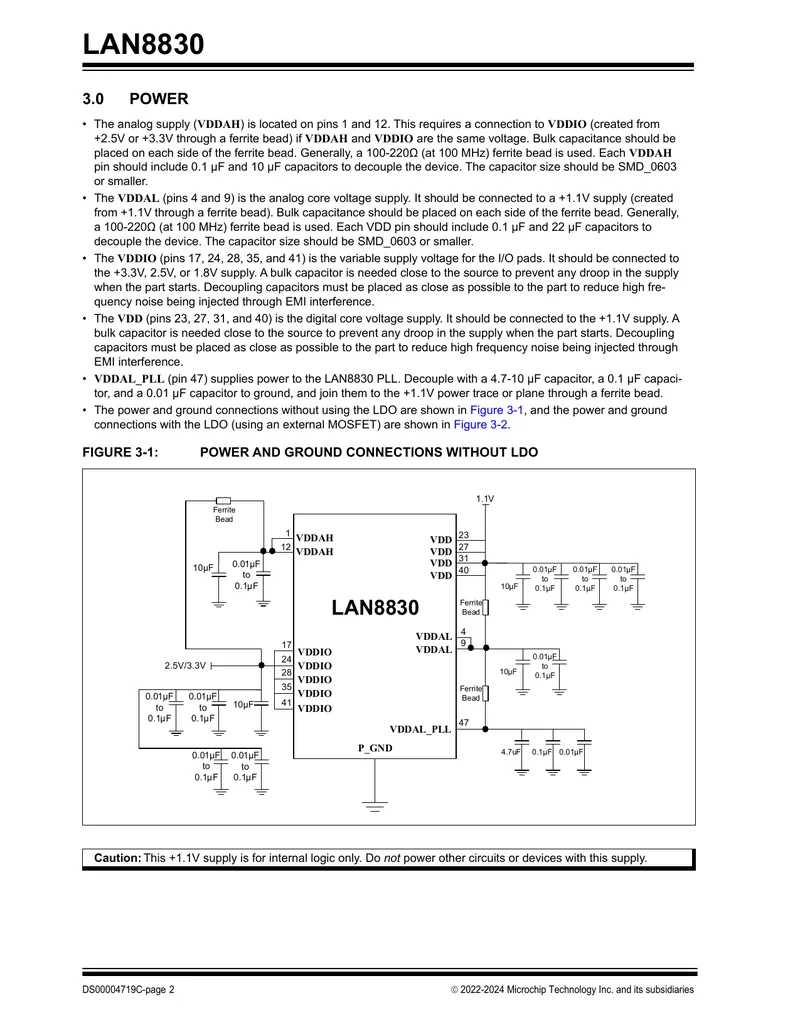

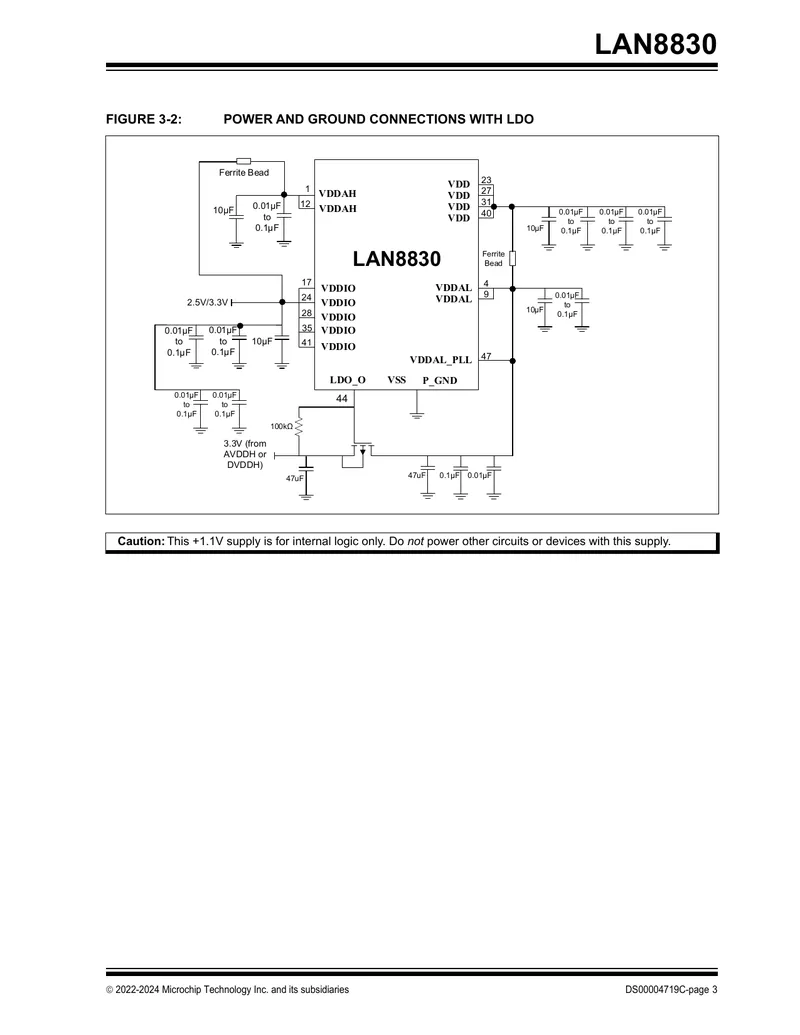

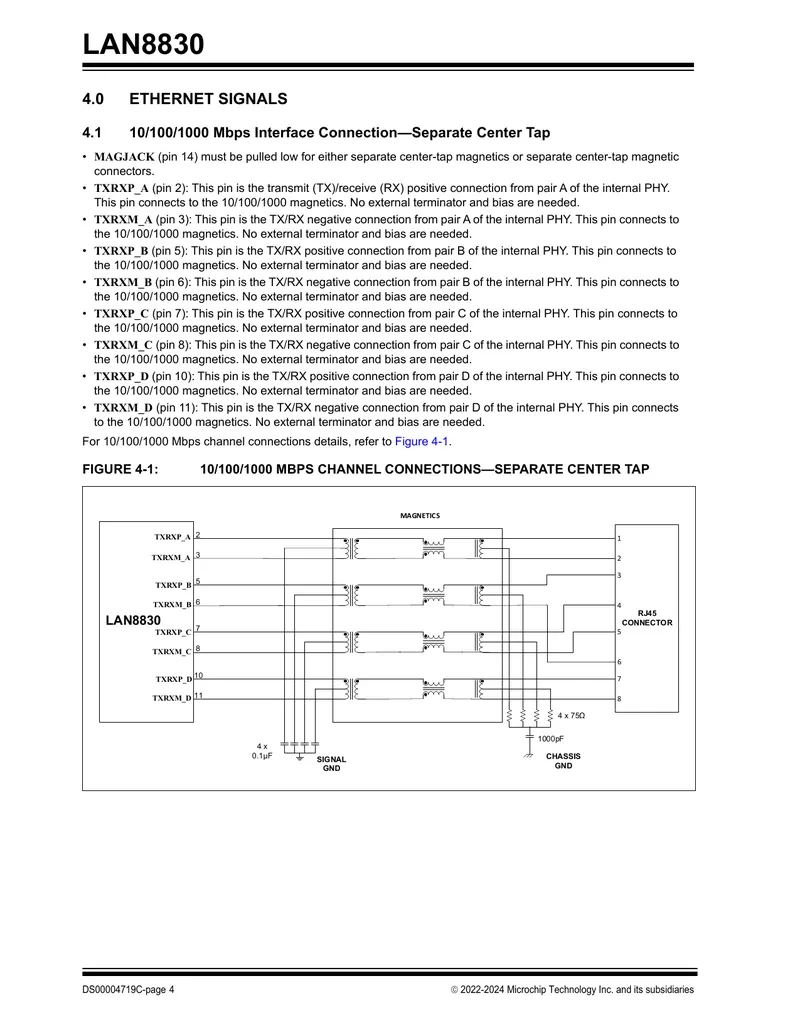

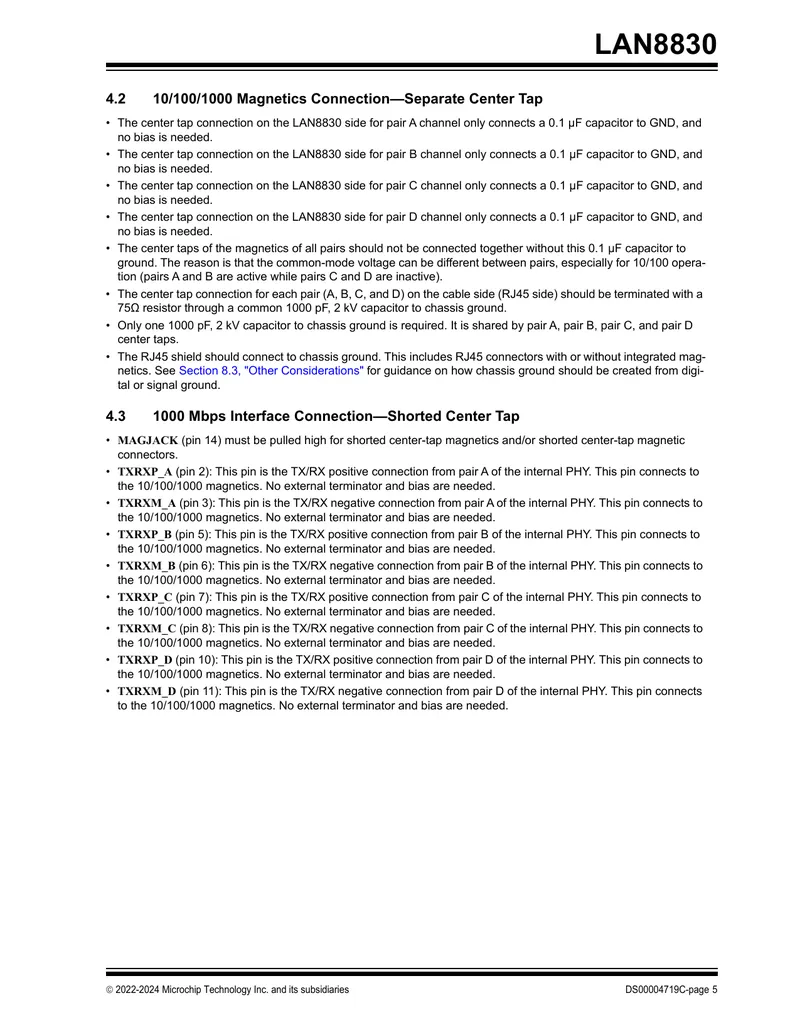

This document is a hardware design checklist for the Microchip LAN8830, outlining essential items to follow when integrating the LAN8830 into new designs. The checklist is divided into several sections, including General Considerations, Power, Ethernet Signals, and others, with detailed guidance provided for each. The General Considerations section emphasizes the importance of checking pin configurations and ensuring proper ground connections. The Power section details the requirements for various power supply connections, including the analog supply and digital core voltage supply, along with recommendations for decoupling capacitors. The Ethernet Signals section describes the connections required for 10/100/1000 Mbps interfaces, including specific pin assignments and configurations for both separate and shorted center tap magnetics. Each section provides explicit instructions to ensure proper functionality and compliance with design standards, making it a comprehensive resource for hardware engineers working with the LAN8830.
