PCI11101C Hardware Design Checklist

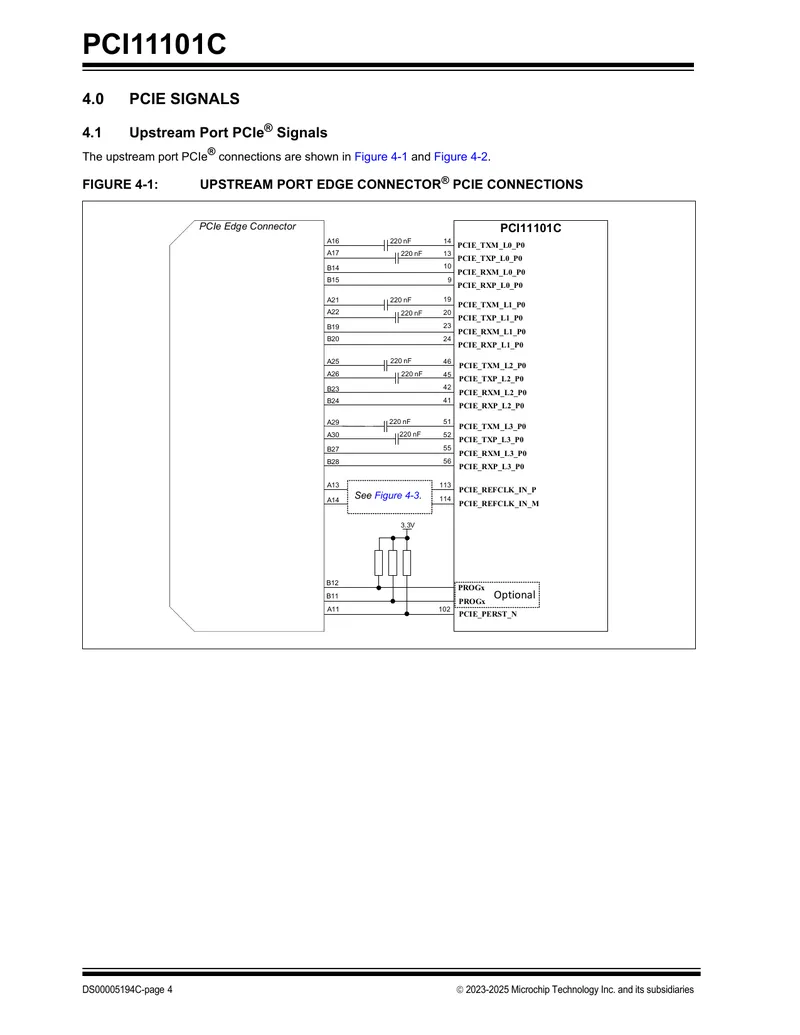

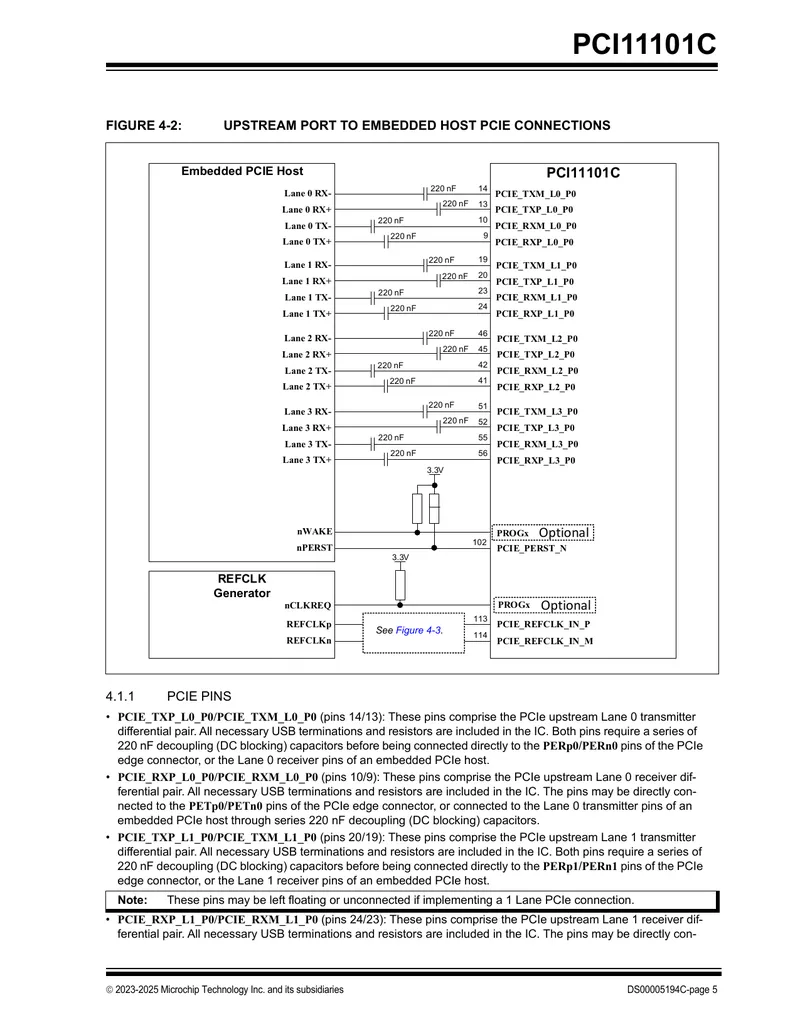

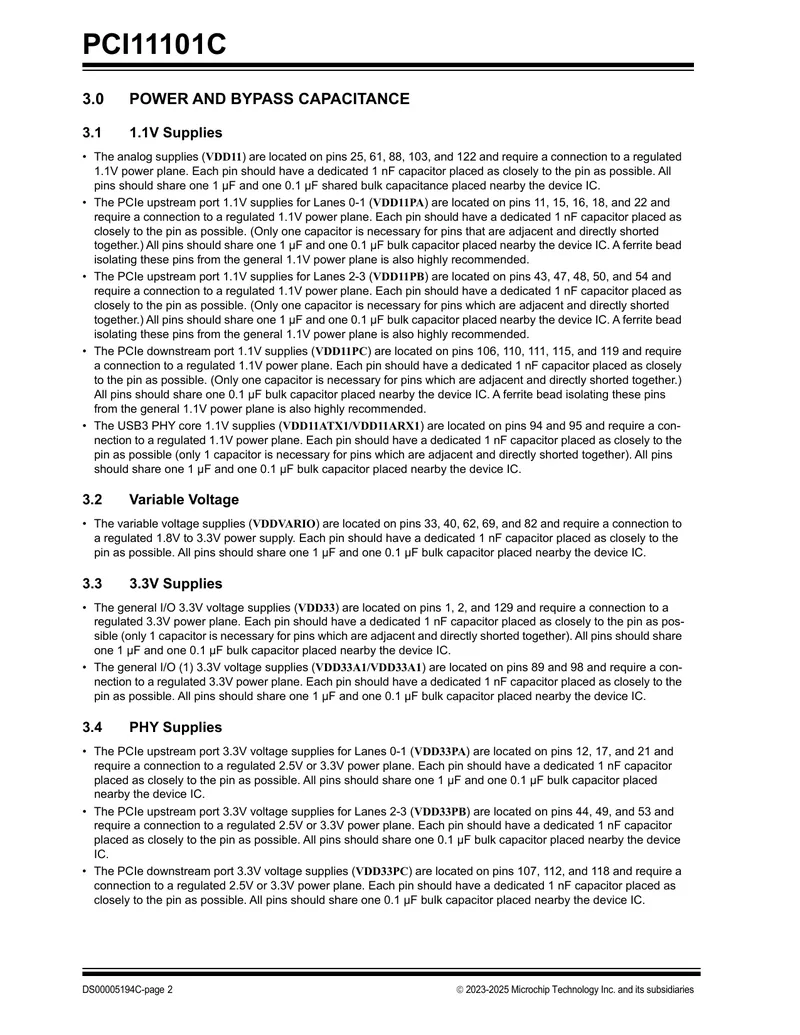

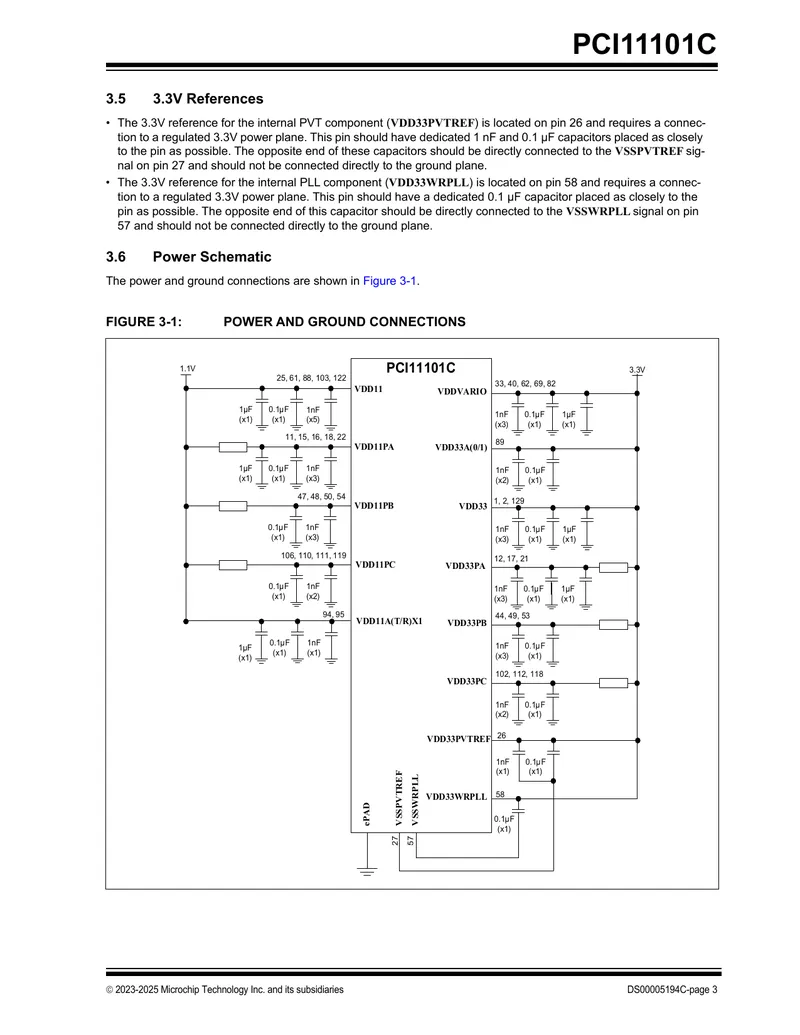

This document is a hardware design checklist for the Microchip PCI11101C, outlining essential items to follow when integrating the PCI11101C into new designs. It begins with an introduction that specifies the checklist's purpose and references detailed sections for various hardware considerations. The document includes sections on general considerations, power and bypass capacitance, PCIe signals, and more. Each section provides explicit guidelines on component connections, required capacitors, and configurations necessary for optimal performance. For instance, it details the requirements for power supplies, including specific voltage levels and capacitor placements for various pins. Additionally, it emphasizes the importance of proper grounding and pin configuration to ensure functionality. The checklist serves as a comprehensive resource for designers to ensure all critical aspects of the hardware design are addressed systematically.
