Best Practices for USB4 ESD Protection and Signal Integrity

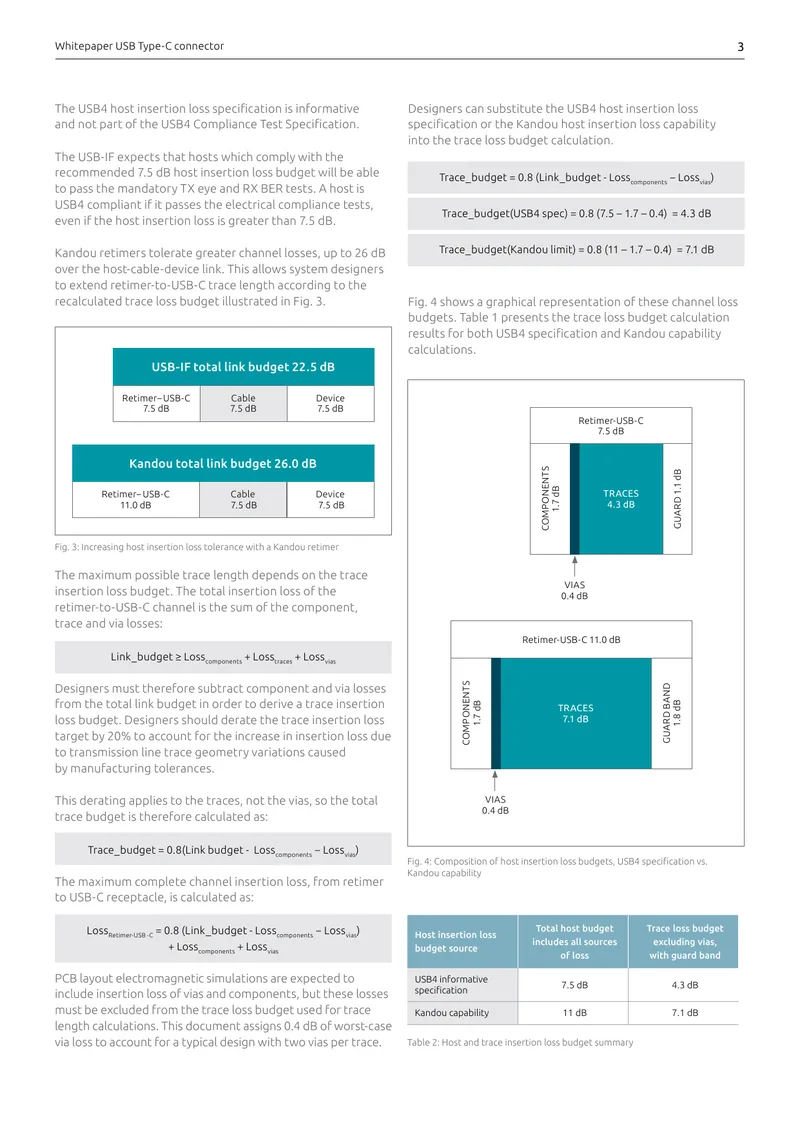

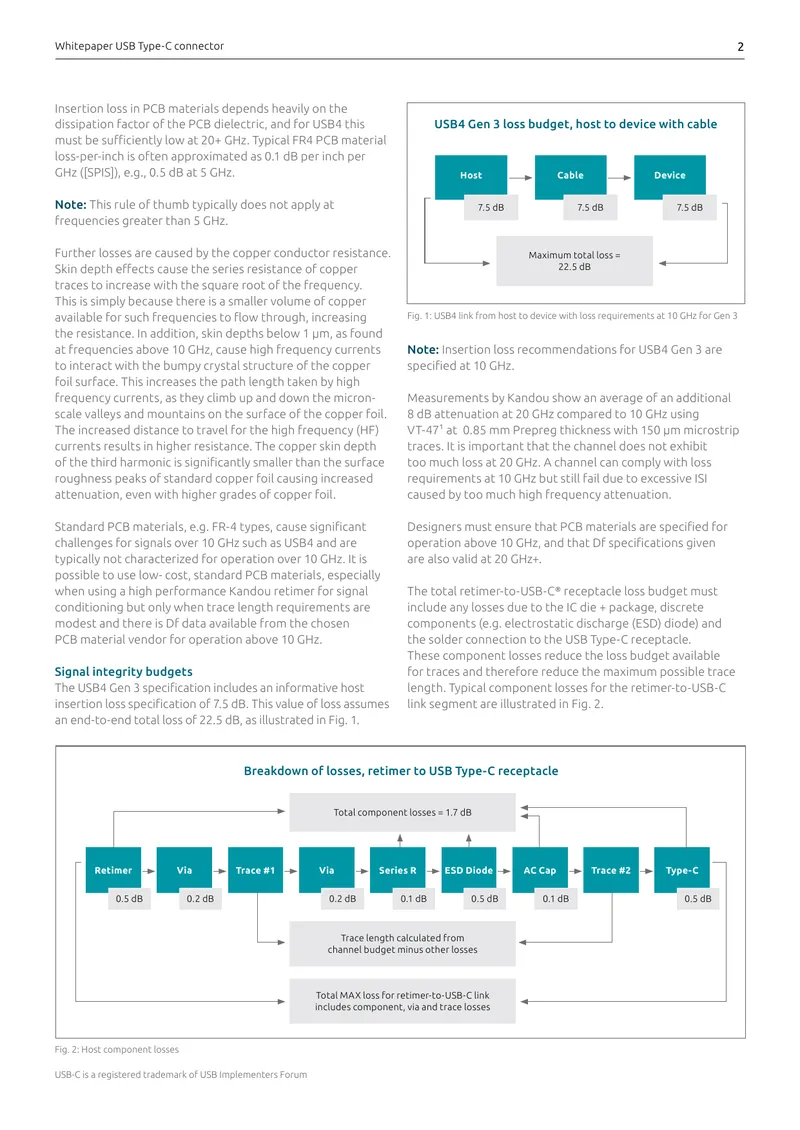

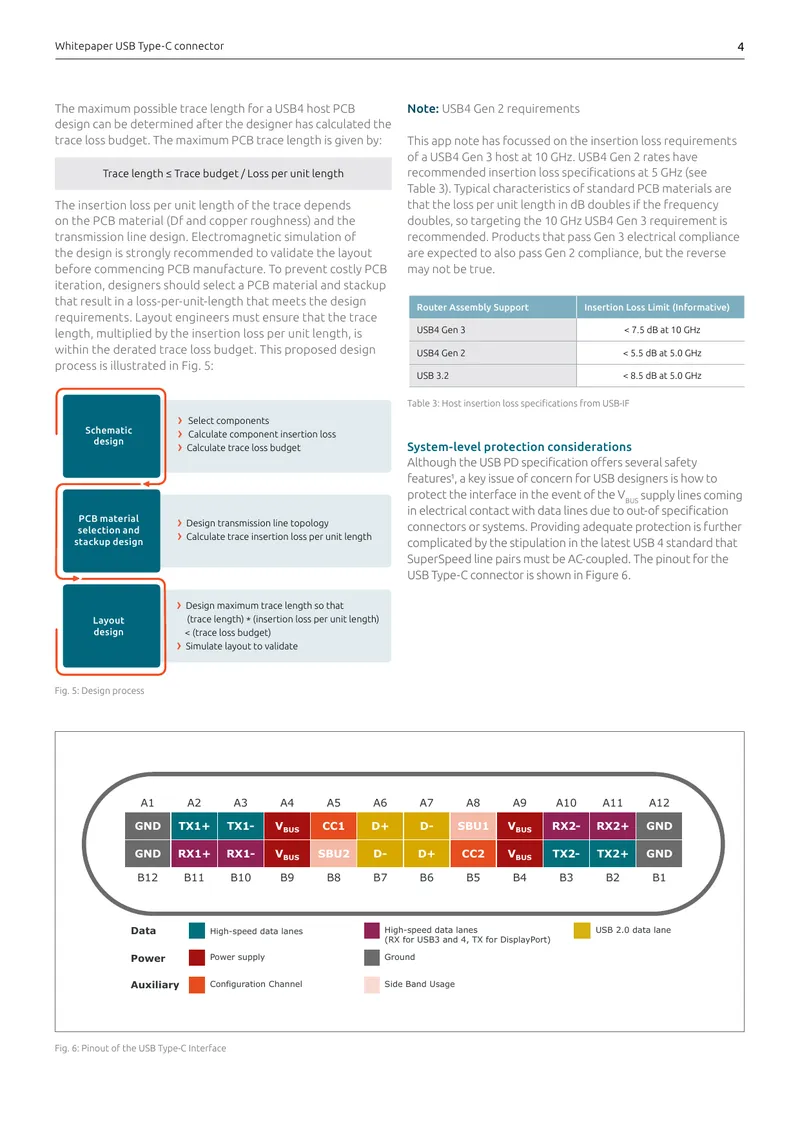

This whitepaper outlines best practices for selecting and placing ESD protection devices for USB4 interfaces, which operate at high speeds of 20 Gbit/s. The document begins by detailing the sensitivity of USB4 SuperSpeed signals to attenuation, emphasizing the need for robust external ESD protection to maintain signal integrity. It discusses the engineering challenges posed by the transition from USB 3.x to USB4, particularly regarding PCB material selection and routing priorities. The whitepaper provides detailed comparisons of critical signal parameters between USB4 and earlier standards, including DDR4, DDR5, and USB 3.2. It emphasizes the importance of using PCB materials characterized for operation above 10 GHz to minimize insertion losses. Moreover, the paper outlines the insertion loss budget calculations necessary for USB4 designs, including considerations for maximum trace lengths and various loss components, ensuring that designers account for potential losses to achieve compliant USB4 performance.
