WINGHEAD F11 Imaging Sonar Technical Overview

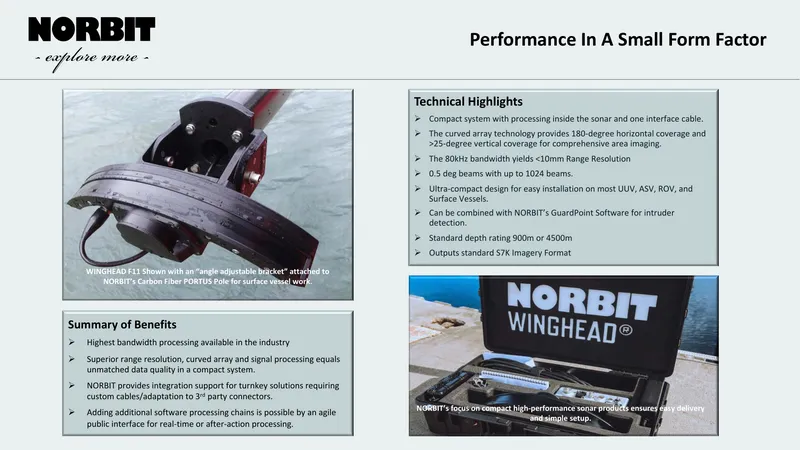

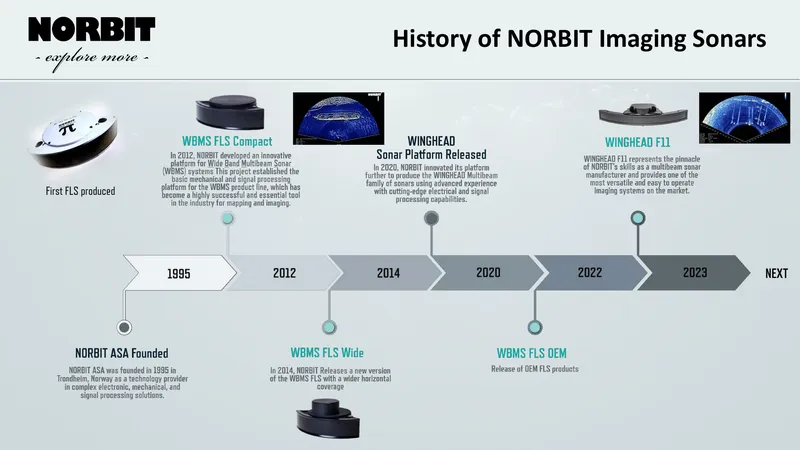

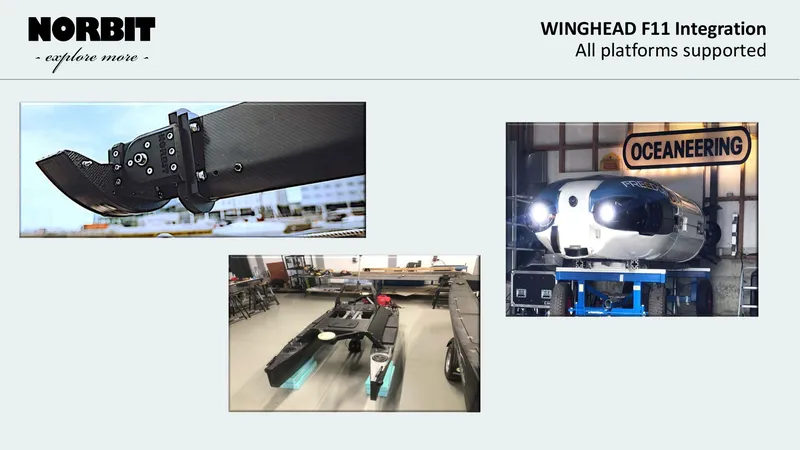

This technical report provides a detailed overview of the WINGHEAD F11, a next-generation high-resolution, long-range forward-looking imaging sonar developed by NORBIT. The document outlines the history of NORBIT imaging sonars and the integration capabilities of the WINGHEAD F11 across various platforms. It emphasizes the sonar's compact design, high bandwidth processing, and superior range resolution, which contribute to its unmatched data quality. The report details the sonar's performance in different operational scenarios, including short-range inspections, mid-range navigation, and long-range detection. Specific objectives and results from various imaging tasks, such as investigating underwater structures and environmental imaging, are presented. The report also highlights the sonar's applications in navigational aid, underwater infrastructure inspection, and marine research. The integration of the WINGHEAD F11 with NORBIT's GuardPoint Software for intruder detection is mentioned, along with the sonar's capability to produce detailed imagery and mapping outputs.
