Hardware Design Guidelines for LPC55(S)xx Microcontrollers

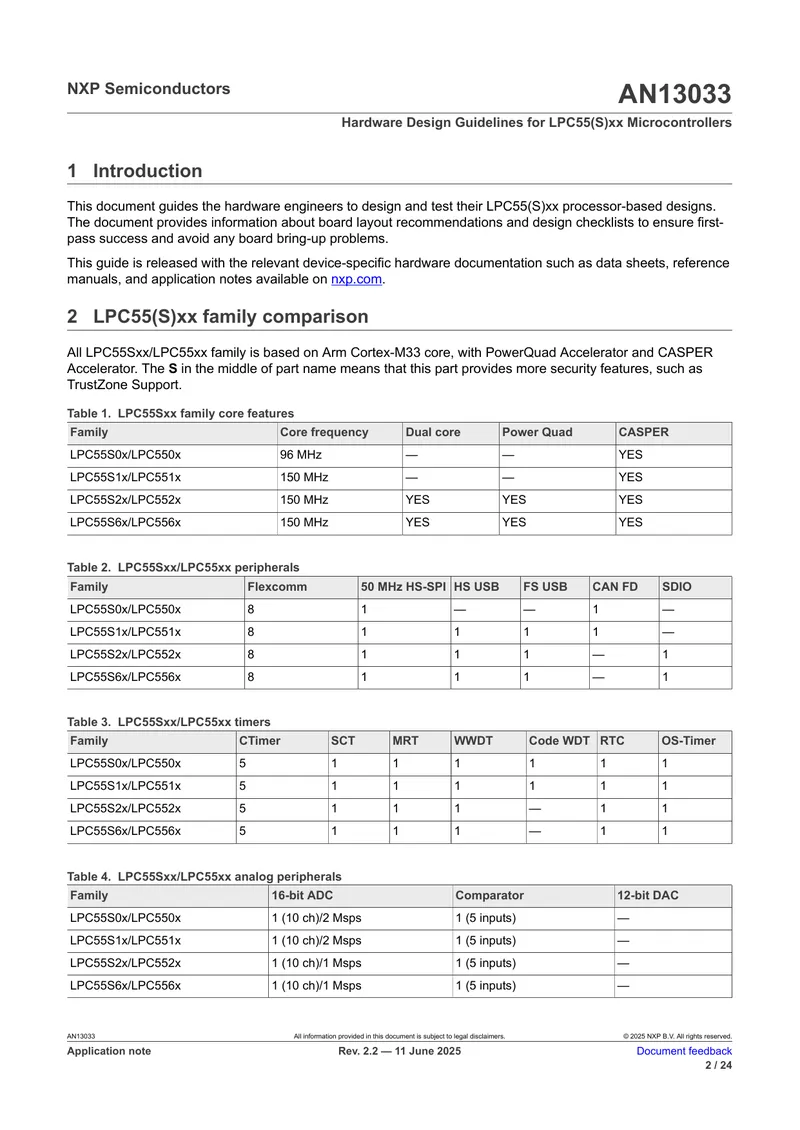

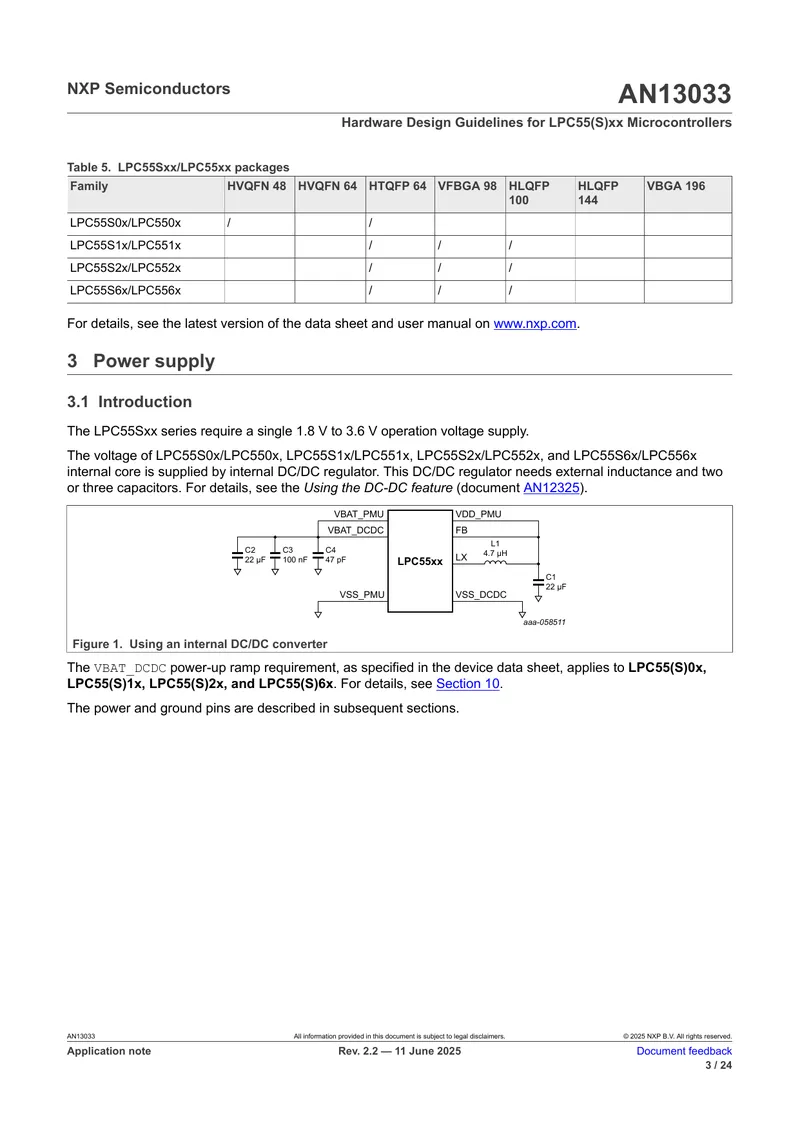

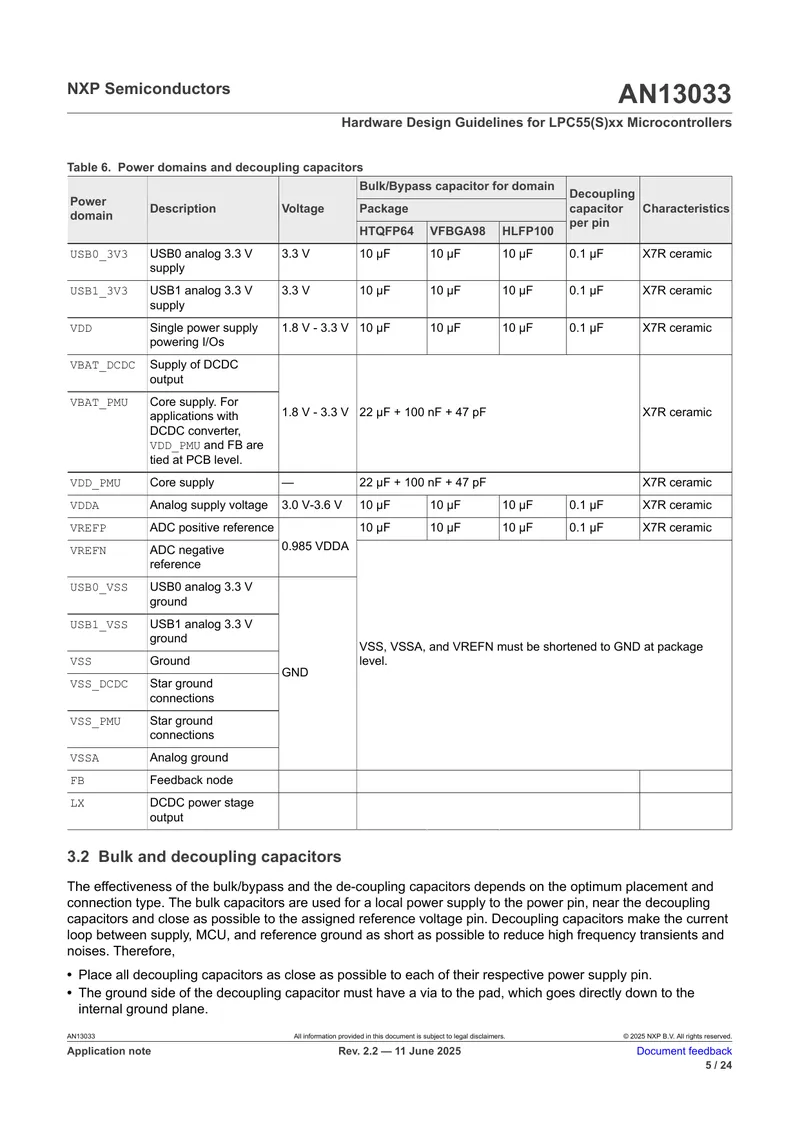

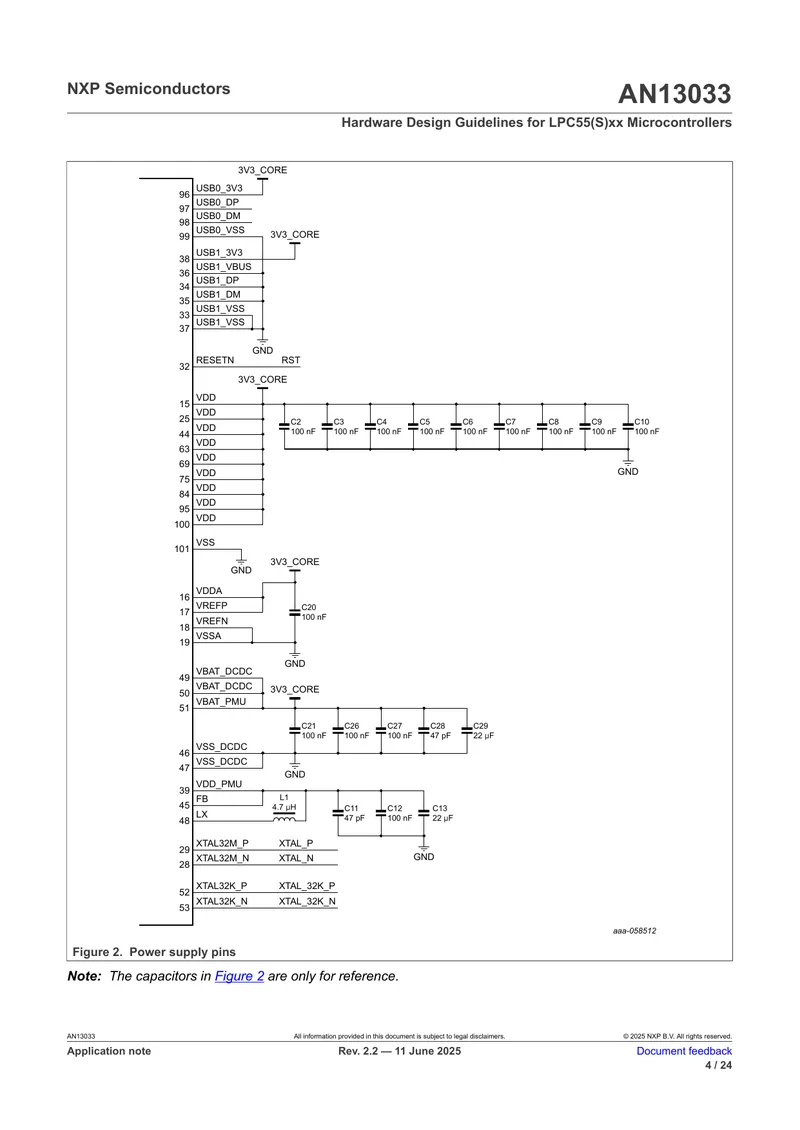

This guide provides hardware design guidelines for LPC55(S)xx microcontrollers, aimed at assisting hardware engineers in designing and testing their processor-based designs. It includes board layout recommendations and design checklists to facilitate first-pass success and mitigate potential board bring-up issues. The document outlines the LPC55(S)xx family features, including core frequency, dual-core options, and various peripherals such as timers and analog components. It also details the power supply requirements, emphasizing the necessity of a single 1.8 V to 3.6 V operation voltage supply and the use of internal DC/DC regulators. Additionally, the guide discusses the importance of proper placement and connection of bulk and decoupling capacitors for effective power management. It further describes clock circuitry options and provides guidelines for crystal oscillator circuit design, ensuring optimal performance of the microcontroller. The document serves as a comprehensive resource for engineers working with LPC55(S)xx microcontrollers.
