Real-Time Simulation for Testing PAC Devices

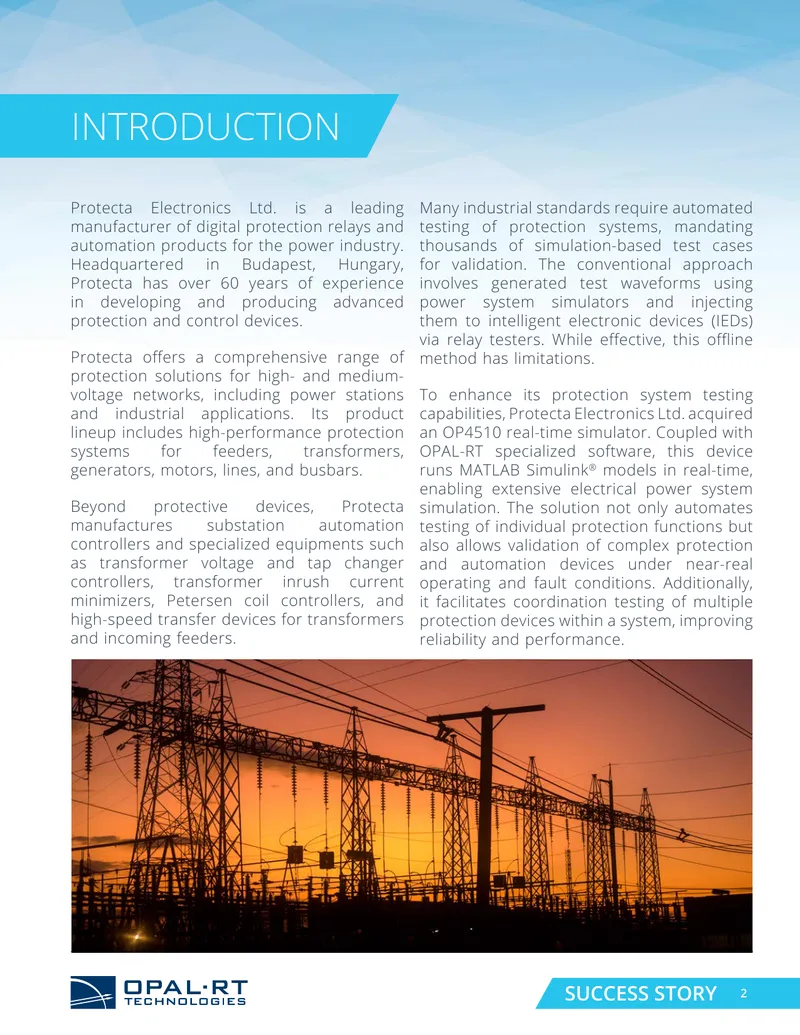

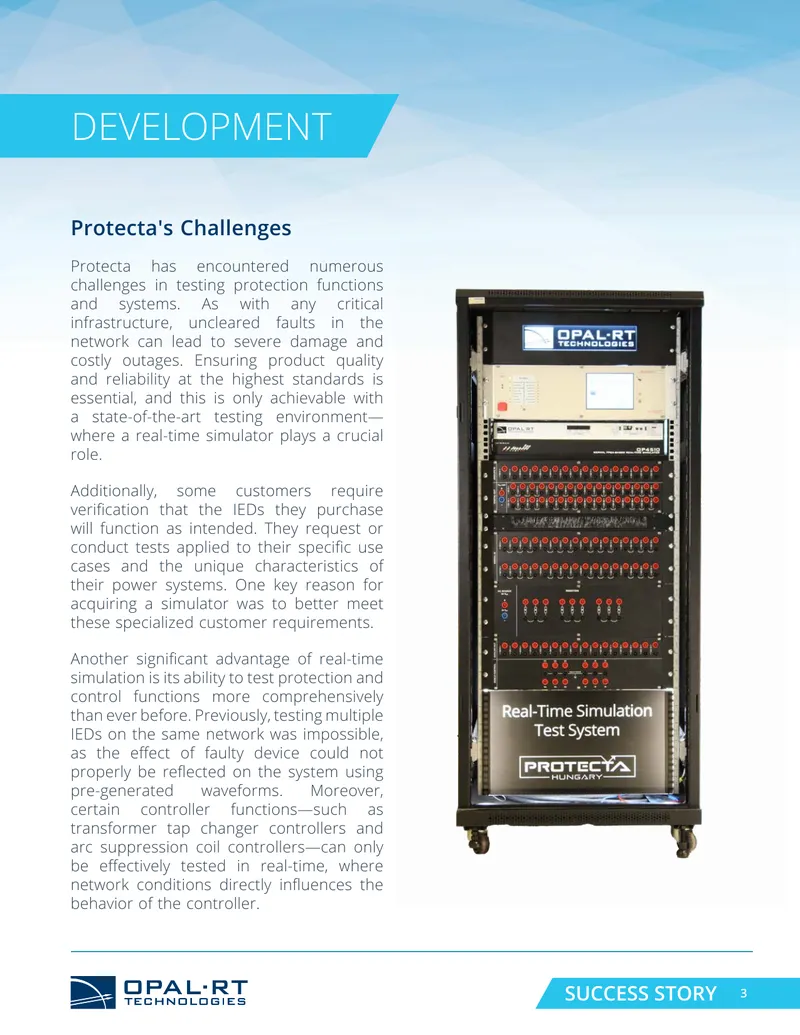

This case study details the implementation of a real-time simulation system at Protecta Electronics Ltd., a manufacturer of digital protection relays for the power industry. The OP4510 real-time simulator, combined with OPAL-RT software, enhances the testing capabilities of protection systems by allowing for extensive simulation of electrical power systems. The document outlines the challenges faced by Protecta in ensuring product reliability and meeting customer-specific testing requirements. It describes how the simulator facilitates automated testing of various protection functions and enables validation under near-real operating conditions. The case study also highlights the development of complex simulation models to test phenomena such as evolving faults and inrush currents. Furthermore, it discusses the integration of the simulator into Protecta's R&D processes, improving the efficiency and accuracy of testing. The conclusion emphasizes the future plans for expanding the library of test scenarios and developing new simulation models to comply with international standards.
