DO Loops and Program Flow in ANSYS

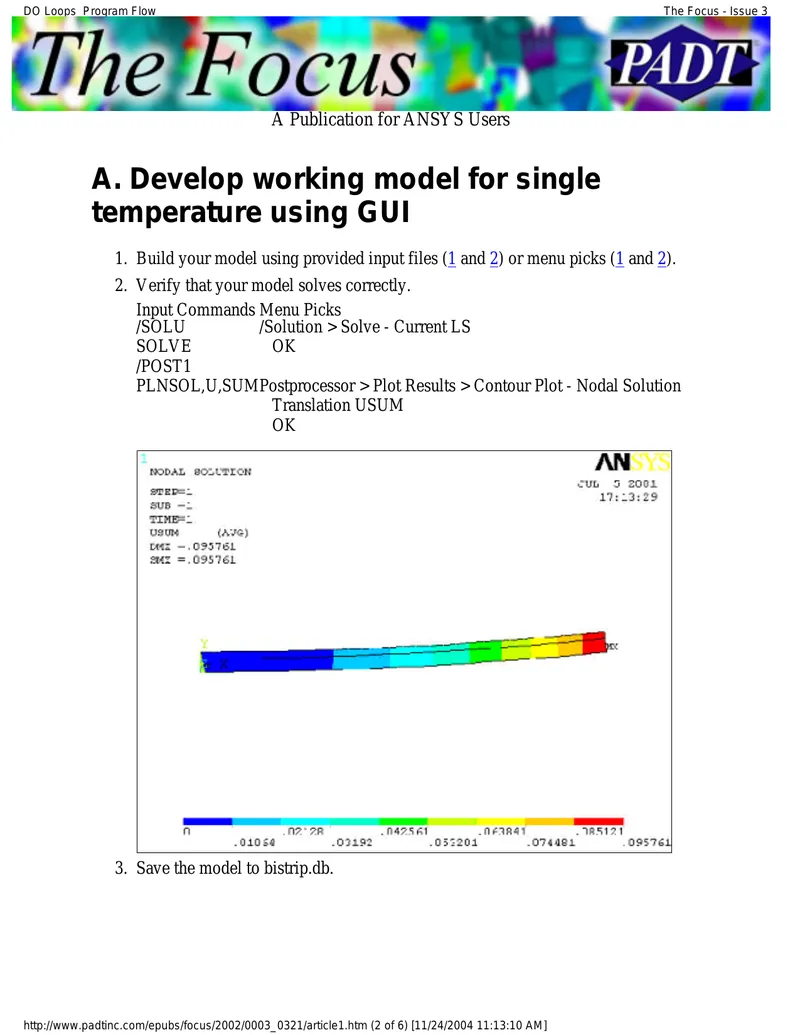

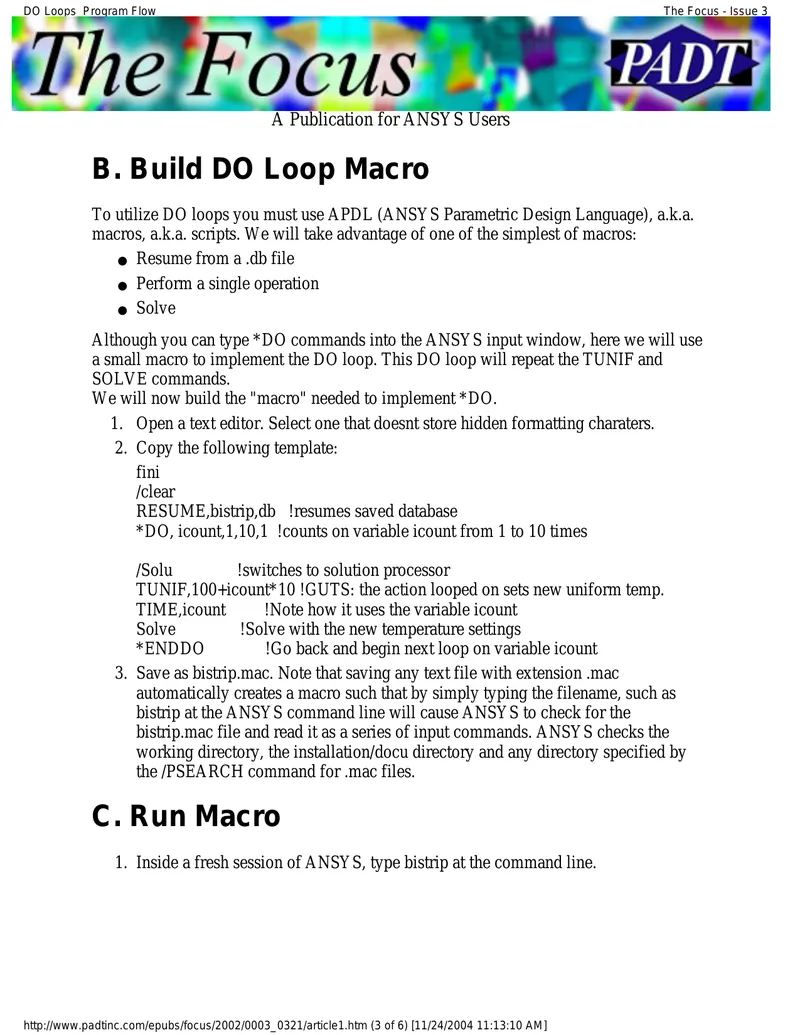

This guide focuses on the use of DO loops and IF-THEN logic within the ANSYS command-line language, APDL, to control program flow effectively. It outlines the importance of utilizing DO loops for repetitive tasks, which can lead to significant time savings. The document provides a case study involving the application of various uniform temperatures to a bi-metallic strip, detailing the necessary steps for geometry creation, boundary condition setup, and model verification. It explains how to build a DO loop macro, run the macro, and review results efficiently. The guide emphasizes the utility of macros in automating tasks and increasing productivity in ANSYS. Additionally, it includes a bonus tip regarding variable storage within databases, cautioning against errors when resuming a database within a loop. Overall, the guide serves as a practical resource for ANSYS users looking to enhance their macro-writing skills and improve their workflow.
