GeoStudio Example of Seepage through an Earth Dam

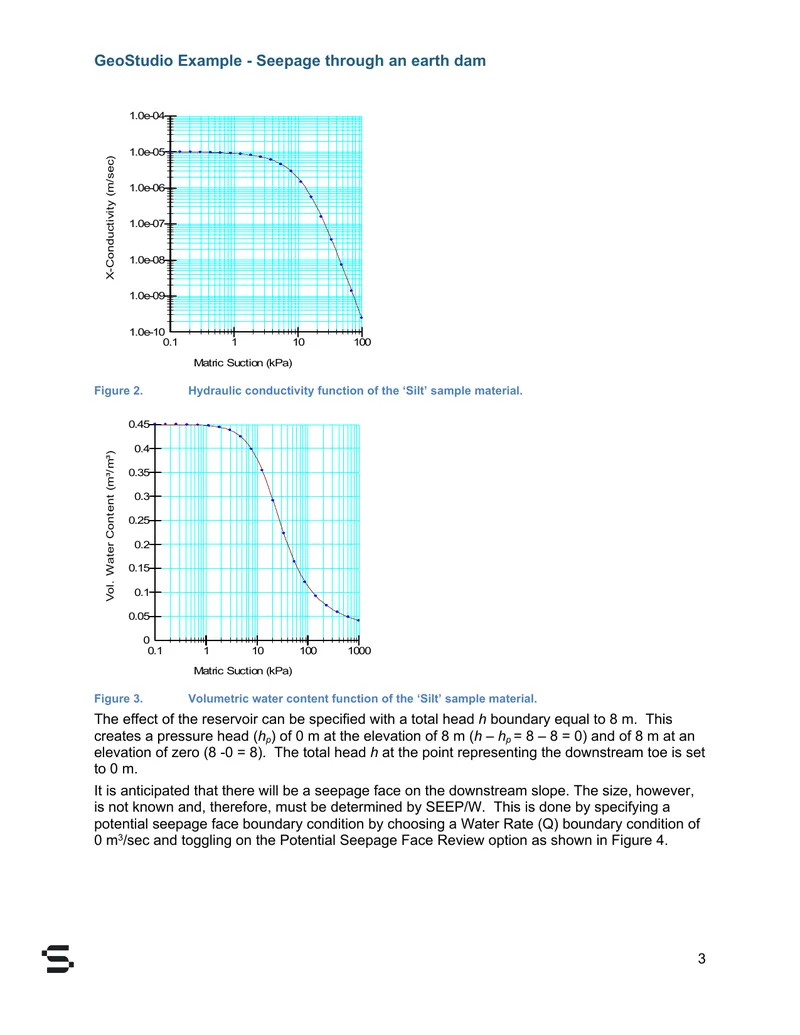

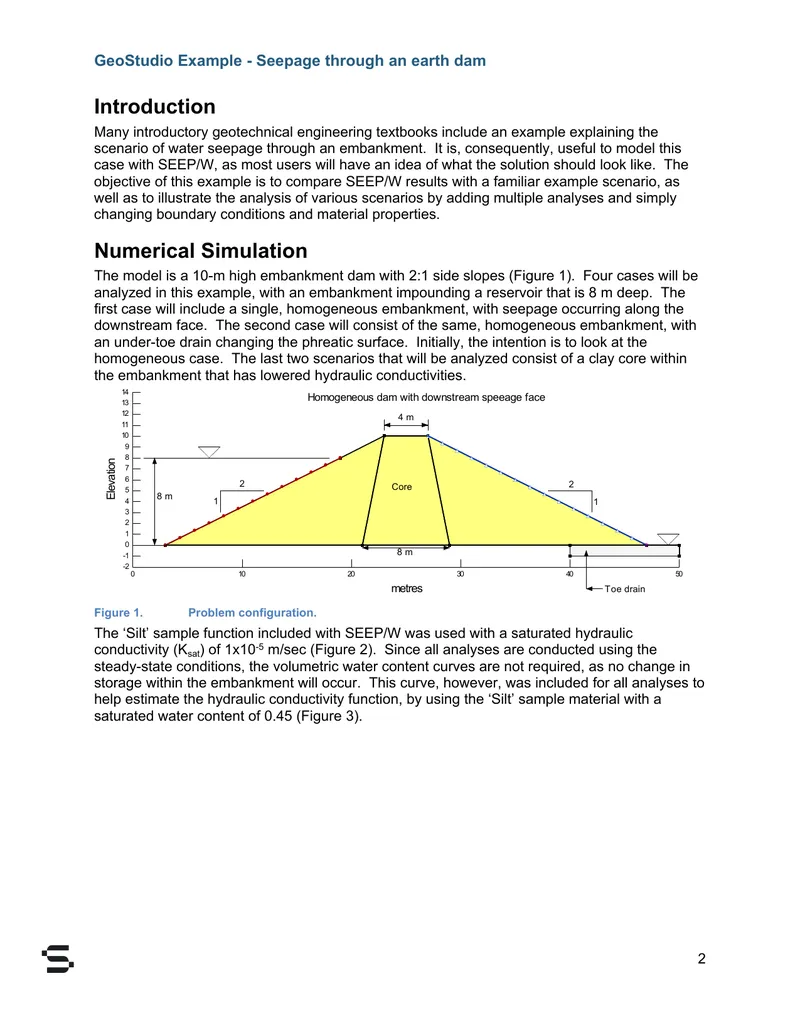

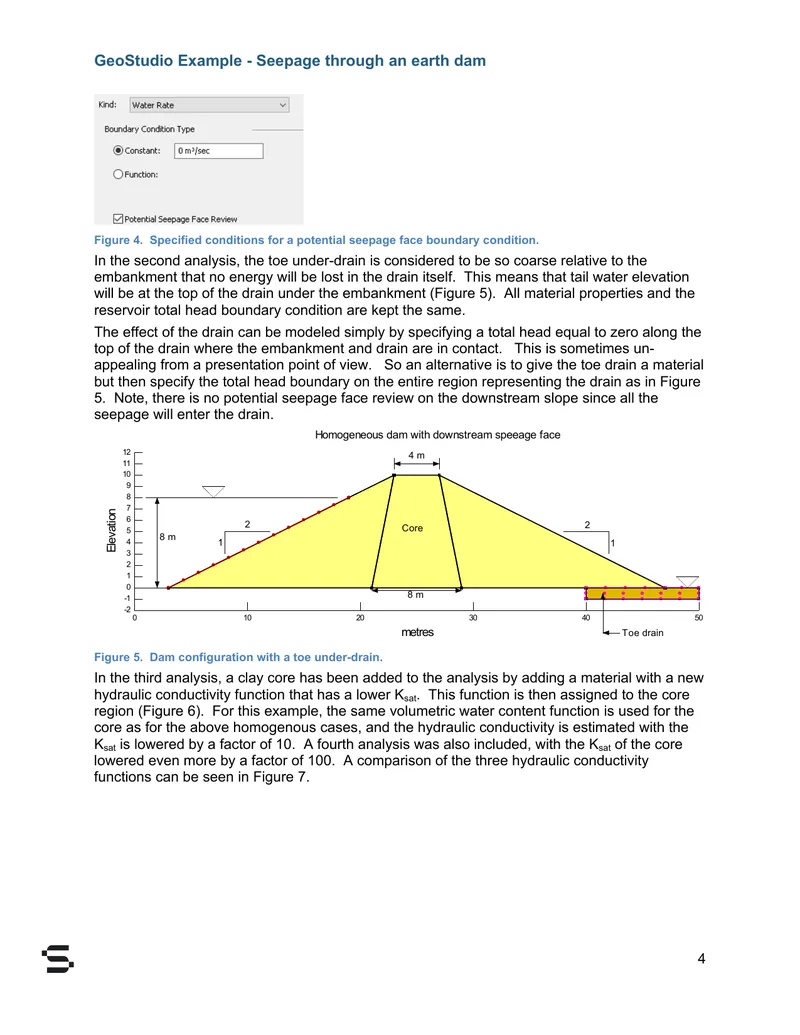

This document is a technical report that presents an example of seepage through an earth dam using the SEEP/W software. It outlines the modeling of a 10-meter high embankment dam with various scenarios to analyze seepage behavior. The report describes four distinct cases: a homogeneous embankment, an embankment with an under-toe drain, and two scenarios involving a clay core with differing hydraulic conductivities. Each case is analyzed under steady-state conditions, detailing the boundary conditions, material properties, and the expected seepage face on the downstream slope. The report includes figures illustrating the model configuration, hydraulic conductivity functions, and flow regimes for each scenario. Results indicate how the presence of a toe drain influences seepage and how variations in material properties affect flow paths and rates. The document concludes by summarizing the findings and emphasizing the importance of understanding seepage behavior in geotechnical engineering.
