Pit Slope Design Using Multiple Geometries

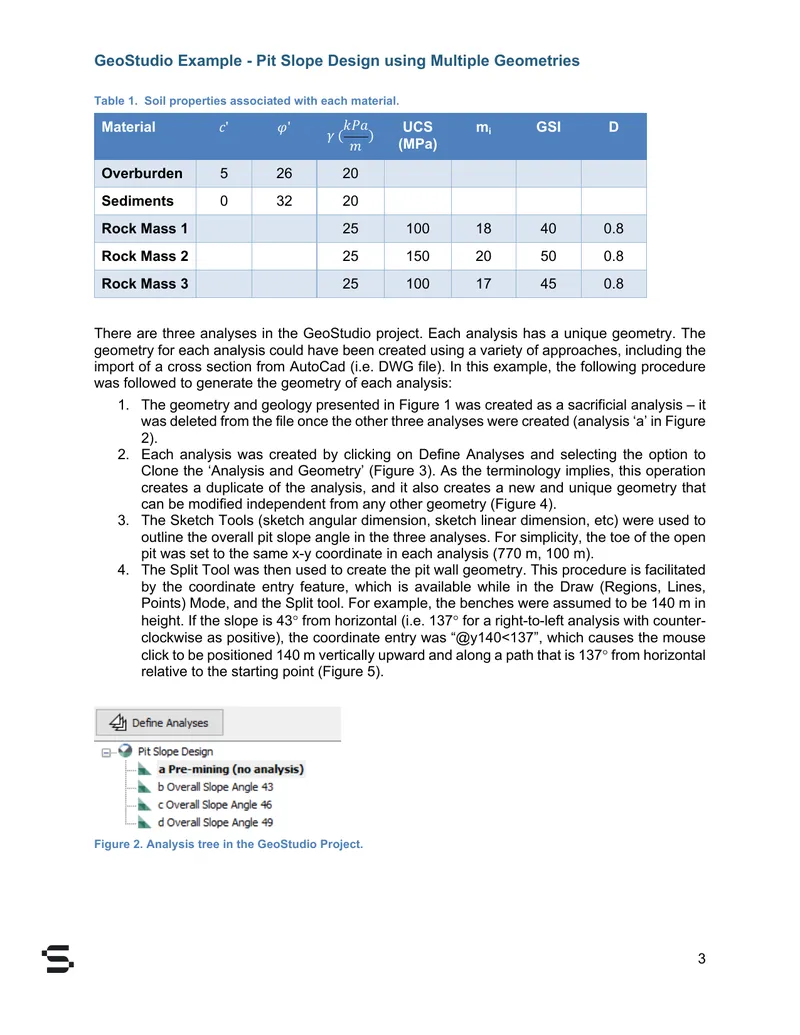

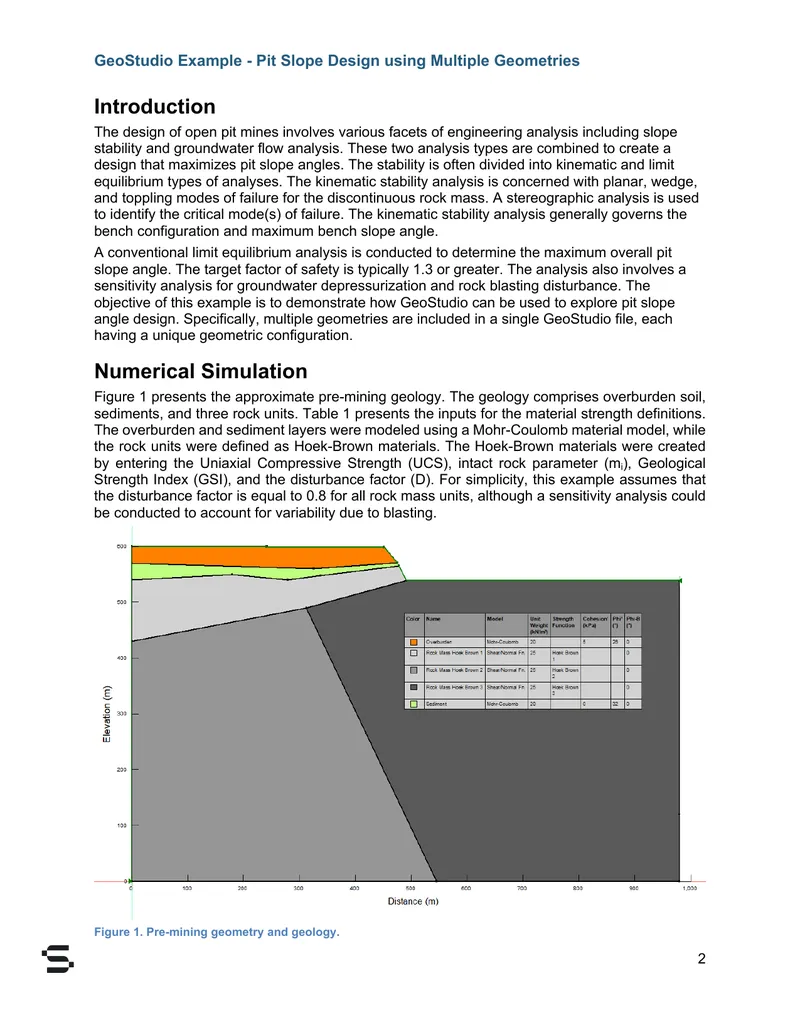

This document is a guide that outlines the use of GeoStudio for pit slope design, focusing on the integration of multiple geometries within a single project file. It describes the engineering analyses involved in designing open pit mines, including slope stability and groundwater flow analysis. The document details kinematic and limit equilibrium analyses, emphasizing the importance of determining maximum pit slope angles and the target factor of safety. The guide explains the process of creating geometries for different analyses, utilizing tools such as cloning and sketching within GeoStudio. It also discusses the modeling of geological conditions, including the use of Mohr-Coulomb and Hoek-Brown material models for various rock units. The results section presents the factor of safety for varying pit slope angles, demonstrating how the slope angle affects stability. Overall, the guide serves as a comprehensive resource for engineers seeking to optimize pit slope designs using GeoStudio.
