Measurement Techniques for Dielectric Material Properties

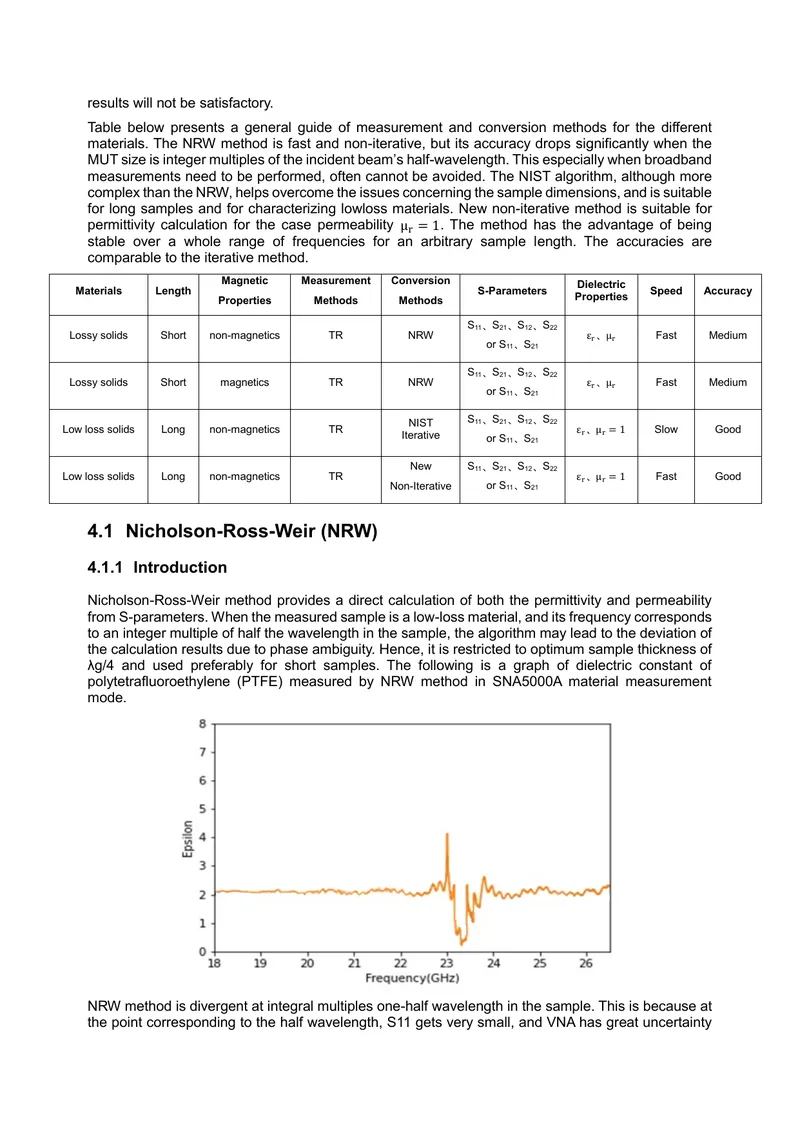

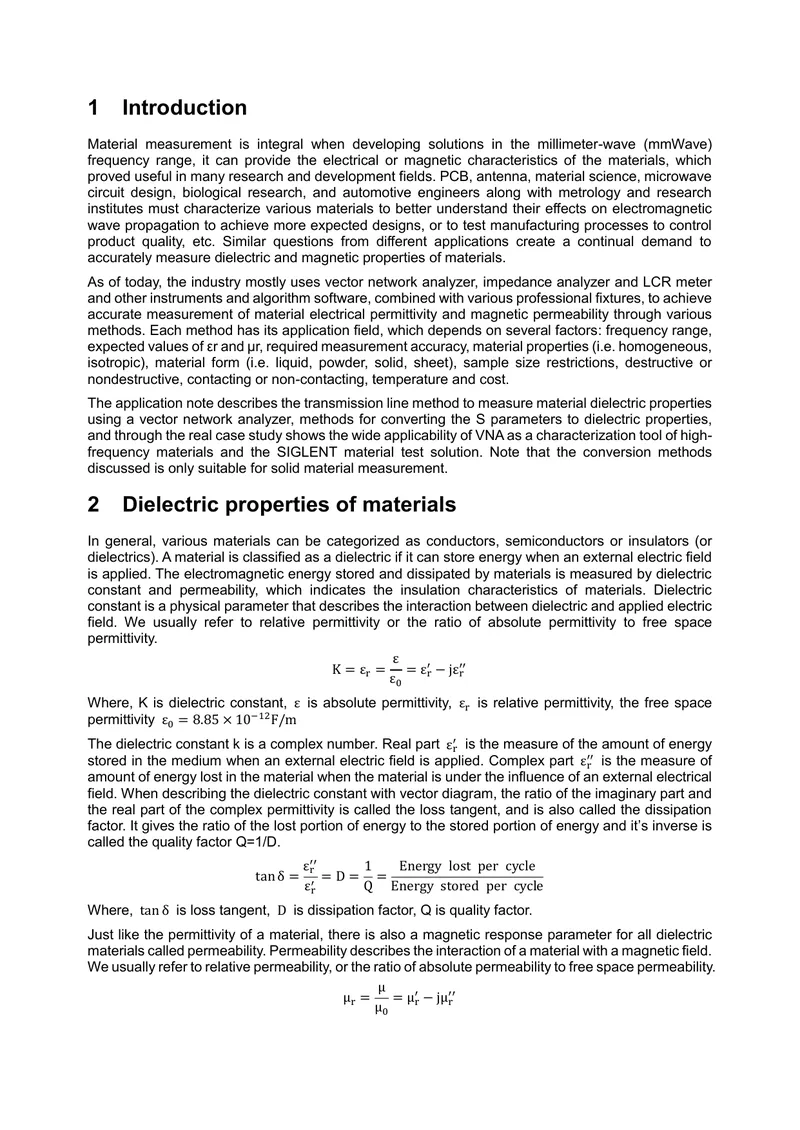

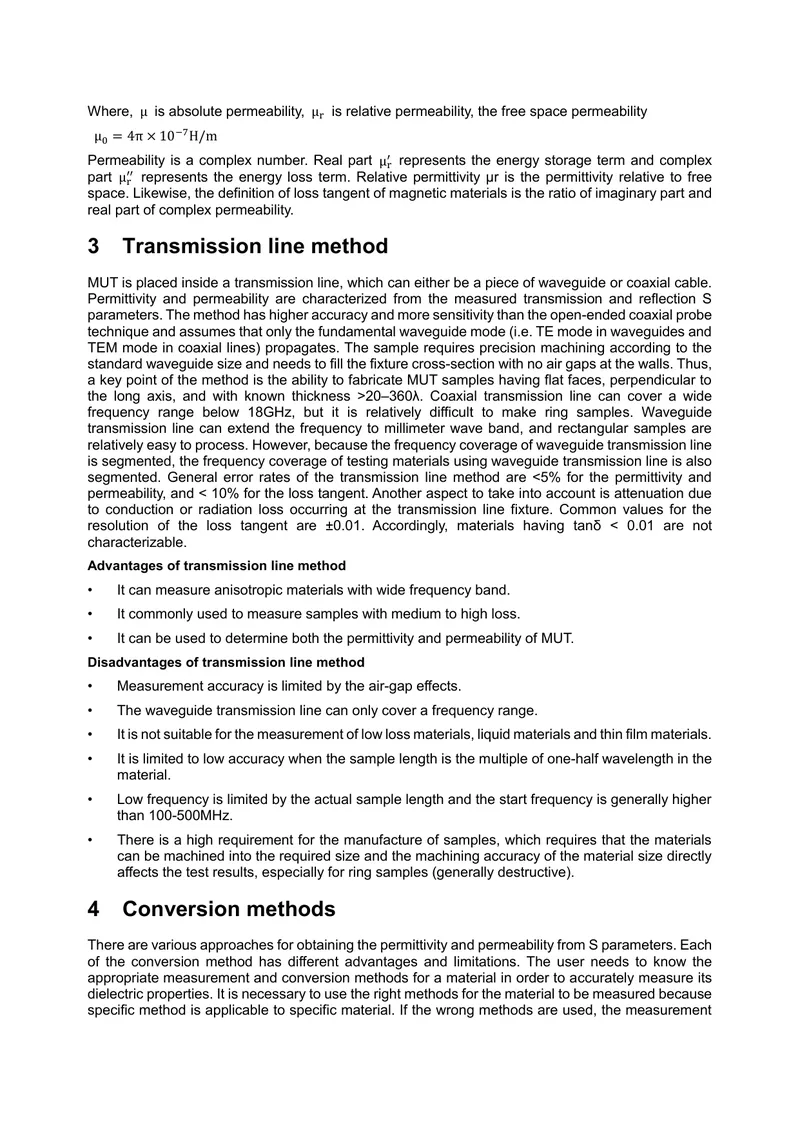

This technical report outlines the measurement techniques for dielectric material properties, focusing on the transmission line method using a vector network analyzer (VNA). It details the importance of accurately measuring the electrical and magnetic characteristics of materials in various fields such as PCB design, antenna development, and automotive engineering. The report describes the dielectric properties of materials, including the definitions of dielectric constant and permeability, and explains the significance of these properties in the context of electromagnetic wave propagation. The transmission line method is presented as a more accurate alternative to other techniques, with specific advantages and limitations discussed. The report also covers conversion methods for obtaining permittivity and permeability from S parameters, emphasizing the need for appropriate measurement techniques based on material characteristics. Various methods, including the Nicholson-Ross-Weir (NRW) method, are evaluated for their applicability to different materials, highlighting the importance of selecting the right approach for accurate results.
