Optimizing CNC Digital Twins with CAD Data Reduction

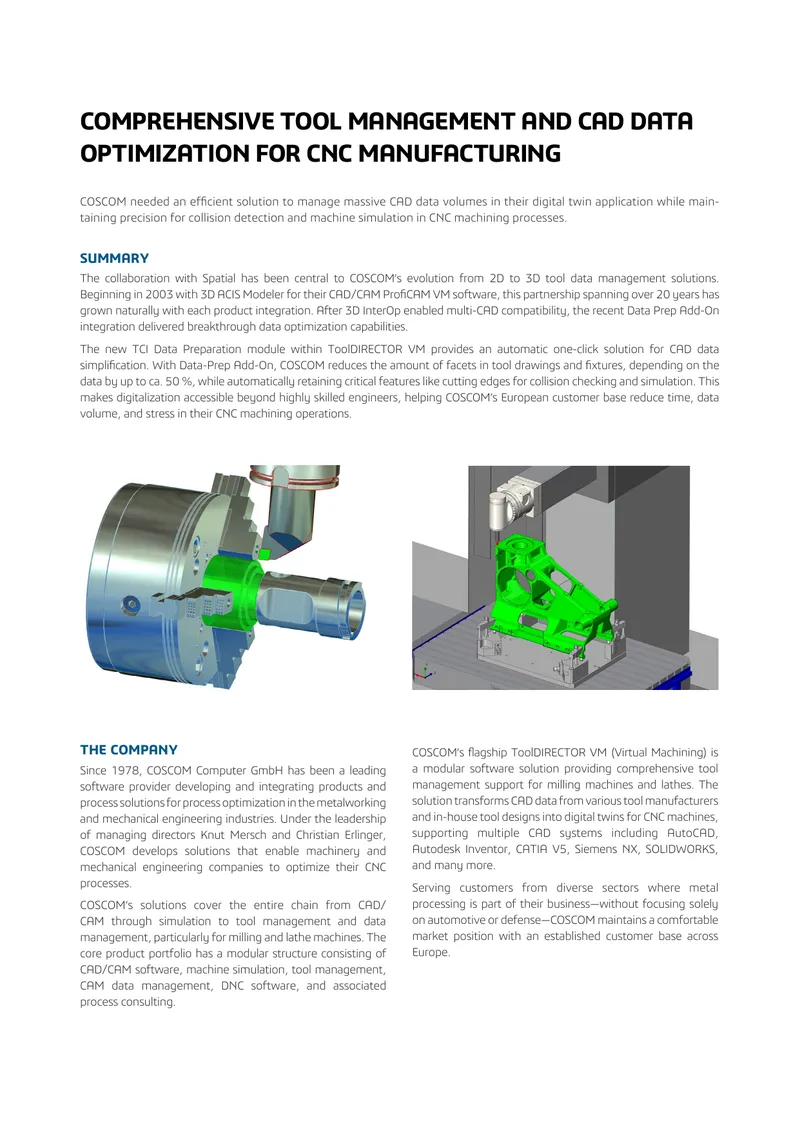

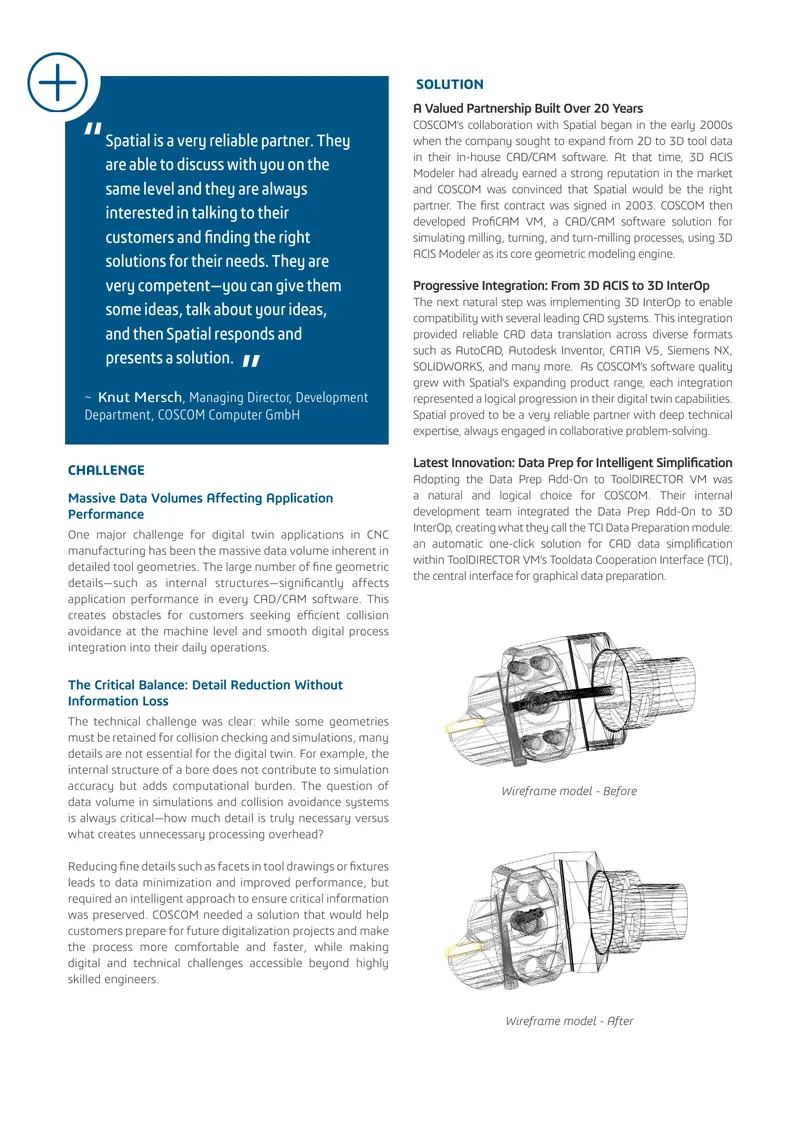

This case study outlines COSCOM's collaboration with Spatial to enhance CNC manufacturing through intelligent CAD data reduction. The document details the challenges COSCOM faced with managing large volumes of CAD data in their digital twin applications, particularly regarding collision detection and machine simulation. It describes the evolution of their software solutions, starting from the integration of 3D ACIS Modeler in 2003 to the recent implementation of the Data Prep Add-On, which simplifies CAD data while preserving essential features. The TCI Data Preparation module allows for a significant reduction in the complexity of tool drawings, achieving nearly a 50% reduction in facets without losing critical information necessary for simulations. This innovation not only streamlines the digitalization process but also makes it more accessible to a wider range of users, thereby reducing operational stress and improving efficiency. The partnership with Spatial has been pivotal in COSCOM's journey towards optimizing CNC processes and enhancing their software capabilities.
