Model PH Platen-Style Heat Insert Driver Overview

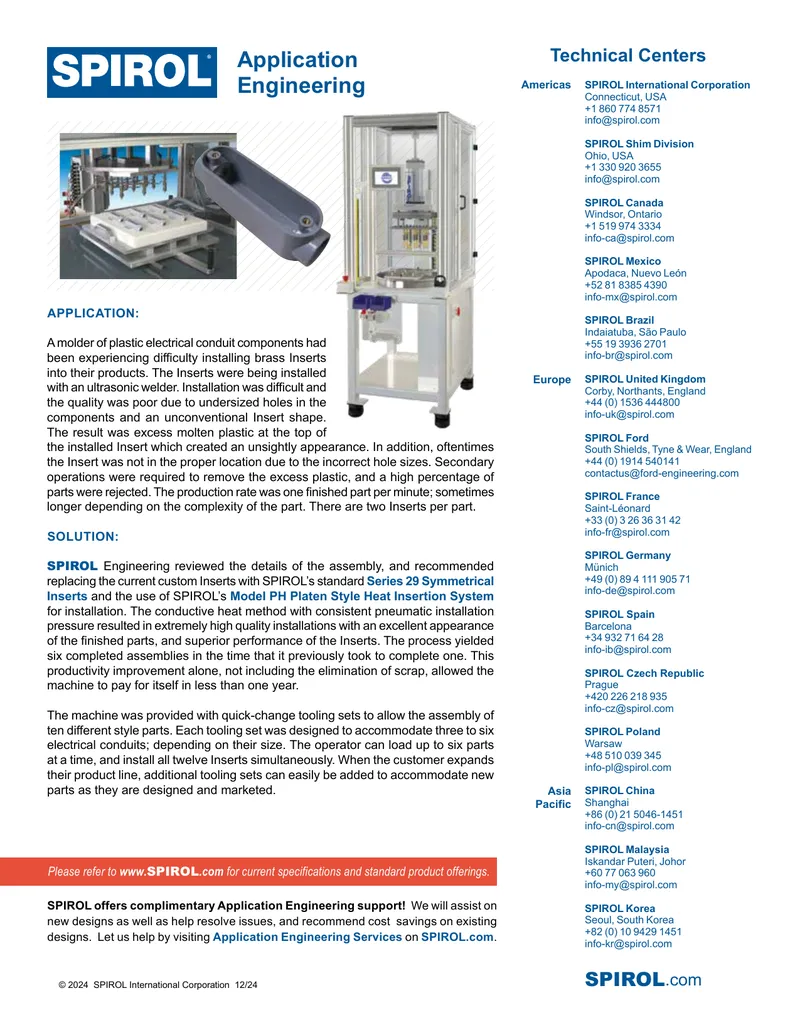

This document is a technical report detailing the Model PH Platen-Style Multi-Tip Heat Insert Driver, designed for the simultaneous installation of Heat and Ultrasonic style Inserts at multiple elevations. The report outlines the machine's design features and benefits, including its accuracy, versatility, efficiency, safety, and quiet operation. It describes how the machine allows for precise temperature control, adjustable insertion depth, and the ability to install up to 12 Inserts or Compression Limiters across various assemblies. The document also presents a case study where the installation of brass Inserts into plastic electrical conduit components was improved by using this machine, resulting in higher quality installations and increased productivity. The report emphasizes the machine's capability to accommodate different part sizes and configurations, making it suitable for a range of manufacturing applications. Overall, the Model PH Heat Insert Driver is positioned as a solution to enhance production efficiency and reduce assembly costs.
