Best Practices in Electrical Integration of FlexiForce Sensors

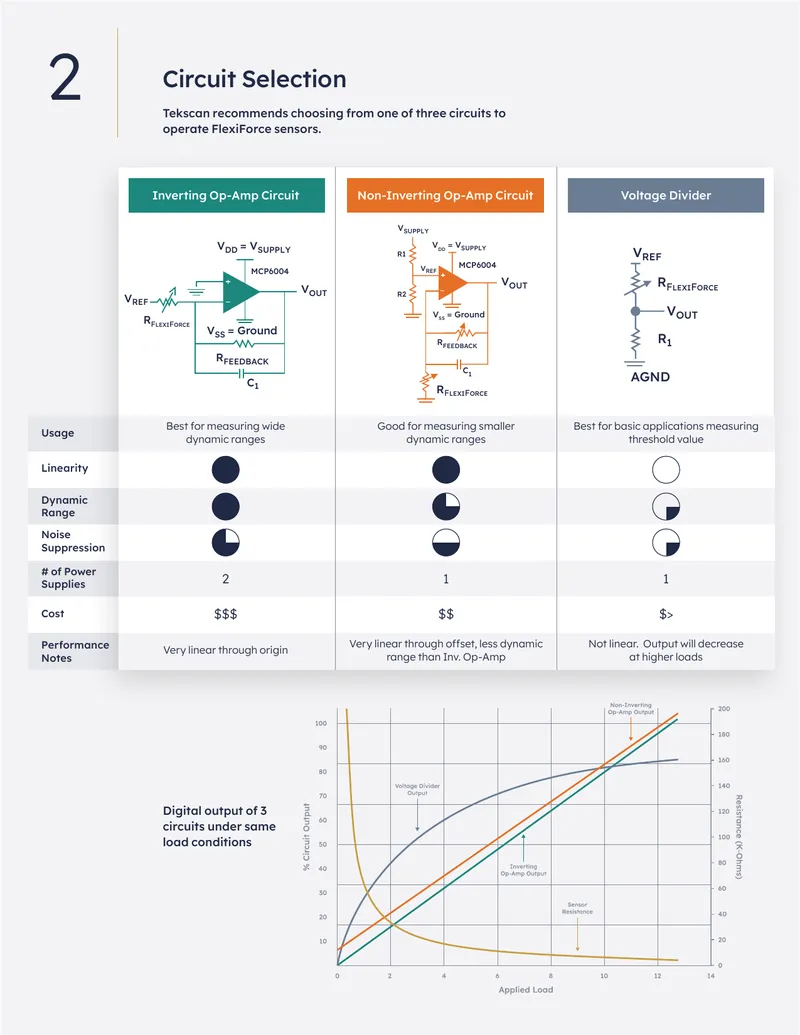

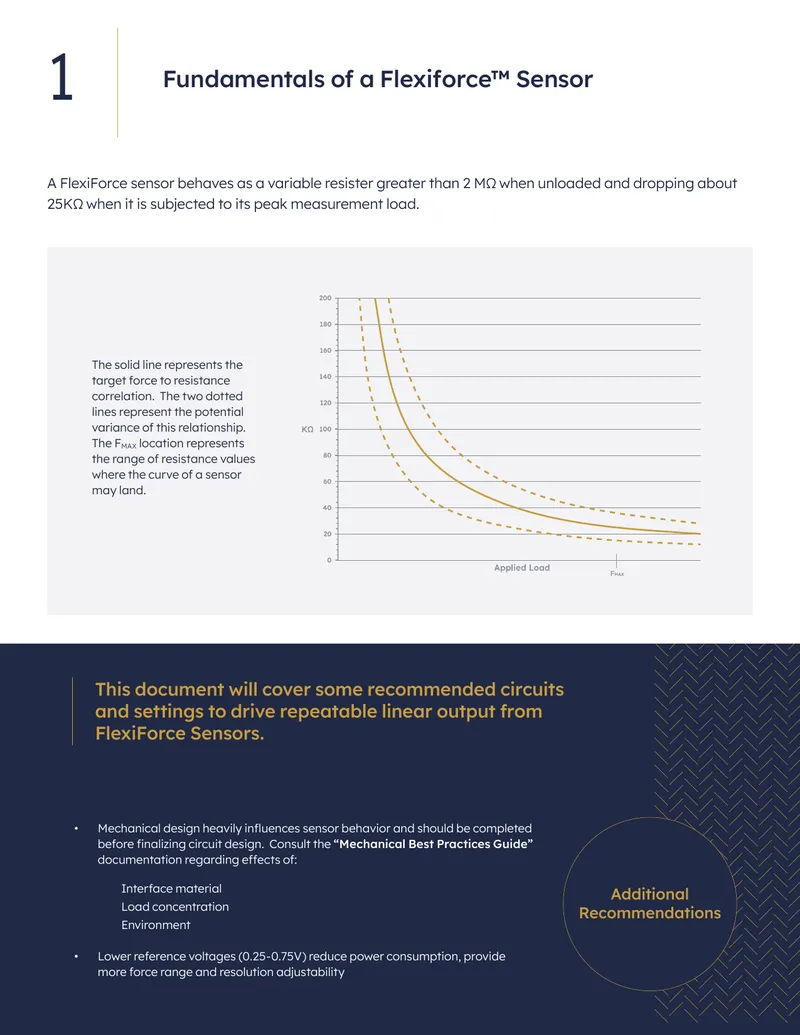

This guide presents best practices for the electrical integration of FlexiForce sensors, focusing on optimal performance in various applications. It outlines essential electrical design concepts to consider when incorporating these sensors into devices. The document emphasizes that while each application may differ, certain universal considerations apply to ensure effective sensor functionality. It details recommended circuit configurations, including inverting and non-inverting op-amp circuits, and voltage divider circuits, along with their respective advantages and limitations. Calibration procedures are also discussed, highlighting the importance of adjusting sensitivity to achieve accurate readings based on known force applications. The guide advises on conditioning sensors before calibration and provides a calibration walk-through example to illustrate the process. Additional resources are mentioned for further guidance on mechanical integration and sensor performance characterization, ensuring comprehensive support for OEM projects involving FlexiForce sensors.
