Solving Assembly Issues with Chip Scale Power MOSFETs

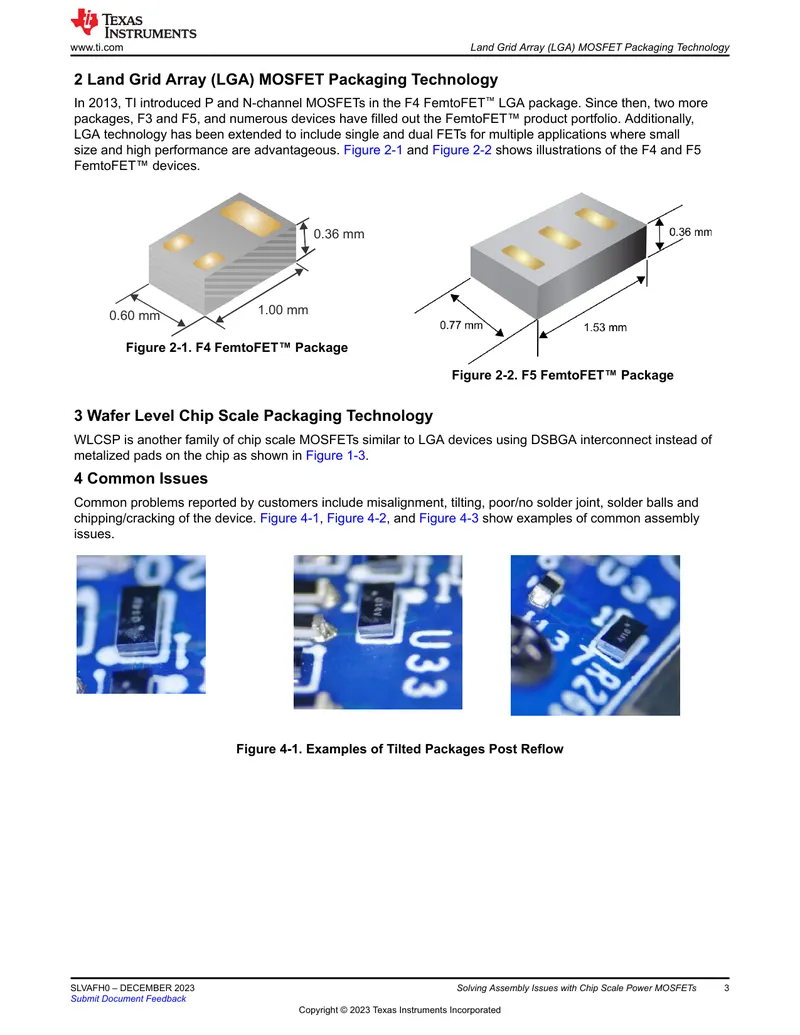

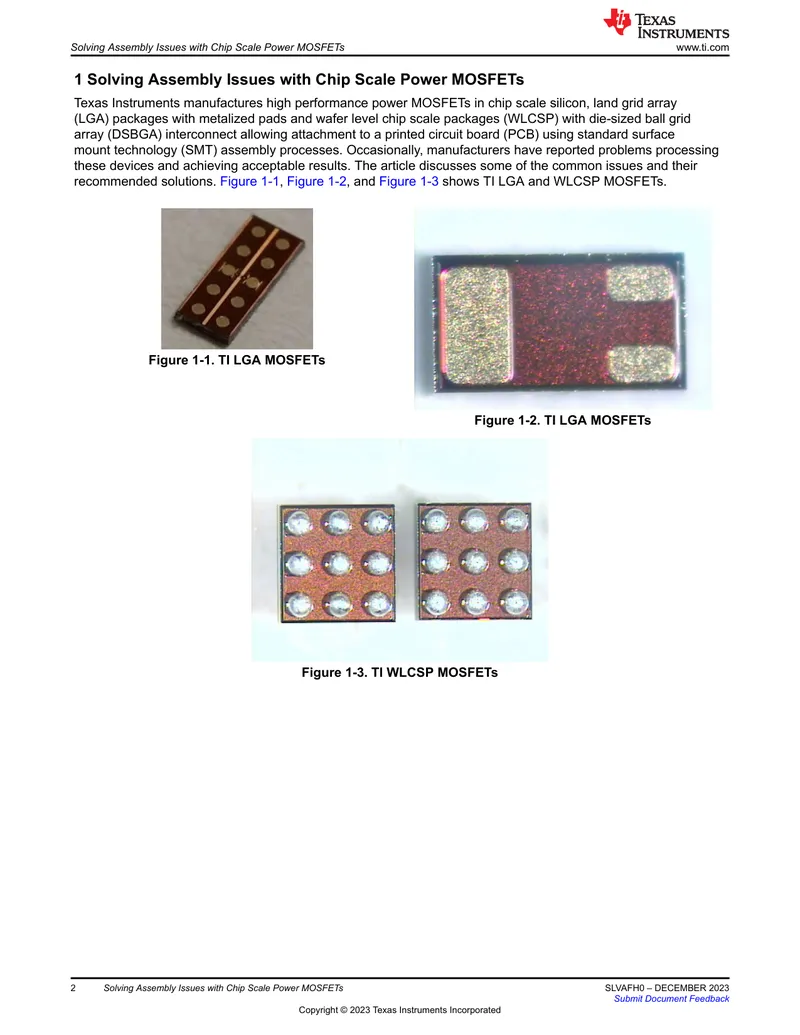

This technical report discusses assembly issues related to chip scale power MOSFETs manufactured by Texas Instruments. It outlines common problems encountered during the assembly process, such as misalignment, tilting, poor solder joints, and chipping or cracking of devices. The report provides detailed recommendations for best practices to avoid these issues, including guidance on PCB pad design, solder paste selection, and reflow profiles. It emphasizes the importance of following TI's documentation and guidelines to ensure successful assembly. The report also includes sections on Land Grid Array (LGA) and Wafer Level Chip Scale Packaging (WLCSP) technologies, highlighting their features and applications. By addressing these assembly challenges, manufacturers can improve the reliability and performance of their products. The document serves as a comprehensive resource for engineers and technicians involved in the assembly of chip scale power MOSFETs.
