Troubleshooting in Thermal Design of Electronics

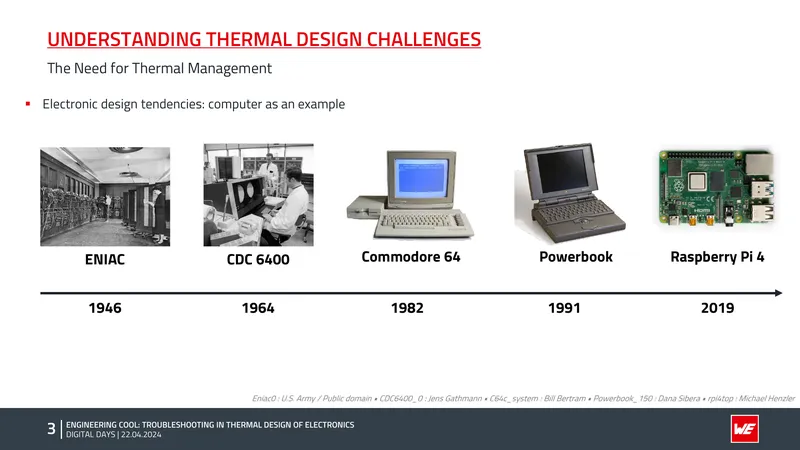

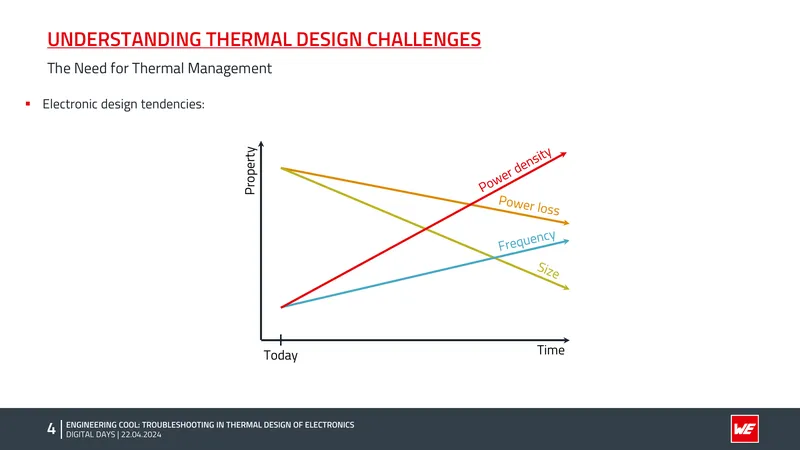

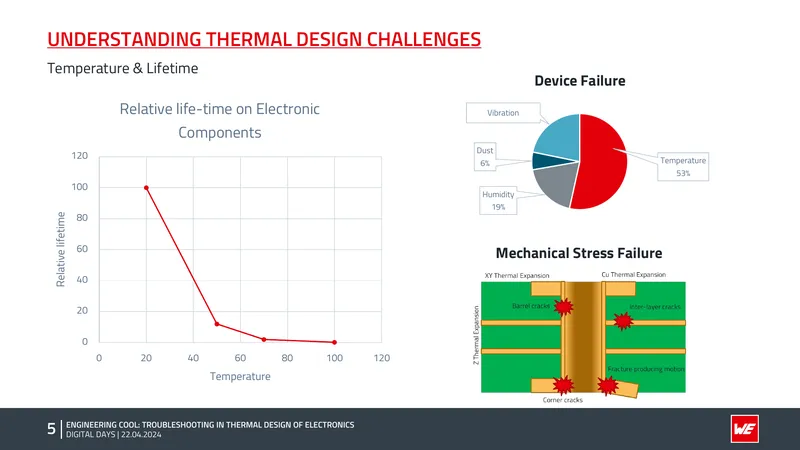

This technical report discusses the challenges and methodologies associated with thermal design in electronics, specifically highlighting the need for effective thermal management. It outlines various electronic design tendencies from past innovations up to current technologies, emphasizing the importance of understanding thermal factors such as temperature, humidity, dust, and mechanical stress, which can lead to device failure. The document further details a case study focused on thermal management in rectifiers, presenting a structured approach that includes defining case scenarios, drafting system designs, and assessing thermal performance. Key stages include identifying thermal resistance values, selecting appropriate thermal interface materials, and conducting a final assessment of temperature management under different conditions. Best practices for thermal management are also discussed, focusing on stakeholder involvement at different levels, including PCB design, heat sinks, and cooling systems. This comprehensive analysis serves as a guide for engineers involved in electronic thermal design.
