RAYEX S Advanced X-Ray Measurement System

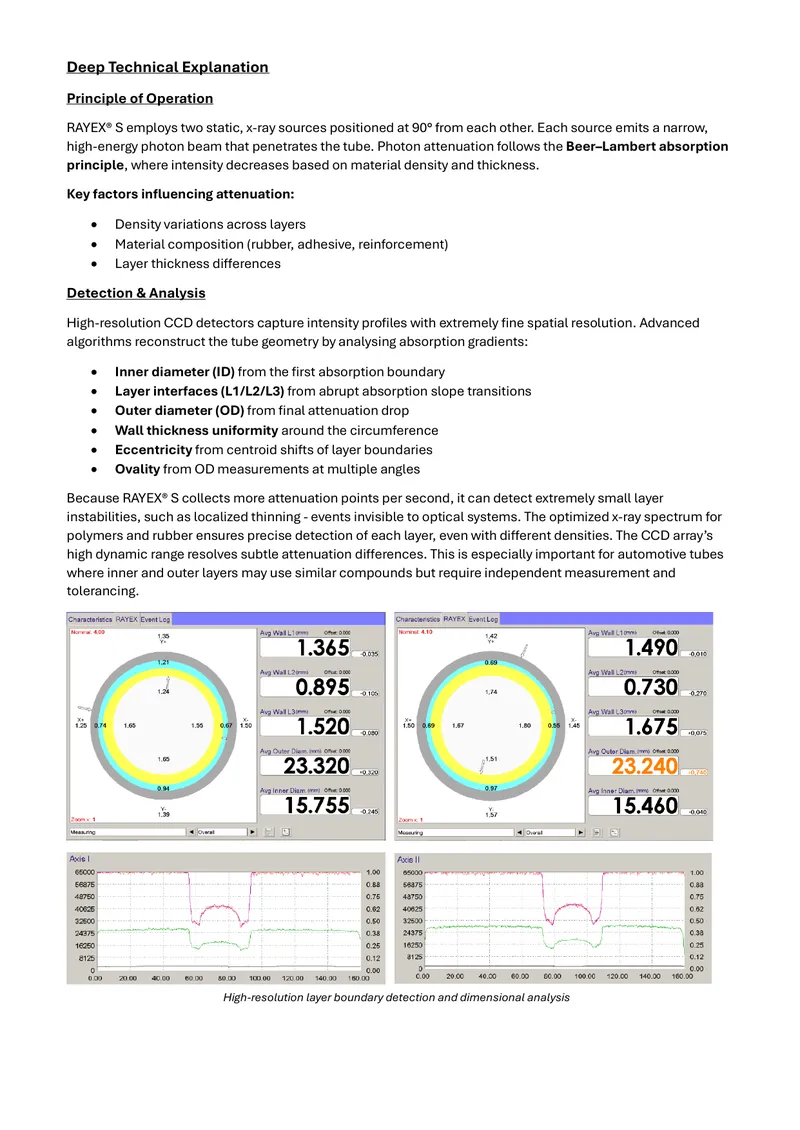

This white paper details the RAYEX S advanced x-ray measurement system designed for automotive tube manufacturing. It addresses the challenges faced by manufacturers in achieving precision and efficiency, such as maintaining uniformity in multi-layer extrusion lines and ensuring consistent extruder output. The document outlines how RAYEX S employs dual x-ray scanning technology to provide real-time dimensional control, measuring parameters like outer diameter, inner diameter, wall thickness, and more. The system's closed-loop control capabilities allow for independent corrections of each extruder, optimizing layer thickness and reducing material waste. Additionally, the paper explains the principle of operation based on the Beer–Lambert absorption principle, highlighting the importance of high-resolution detection and analysis. The technical strengths of RAYEX S, including its immunity to environmental factors and flexibility in measurement range, are also discussed. The conclusion emphasizes the system's role in enhancing quality assurance and process stability in automotive tubing production.
